Processed Compact Bass Reflex Active Subwoofer - 18" - 1200Wrms
The X-SUB 118SA offers a powerful solution where low end extension is required for fixed installation or portable sound at an excxellent price.

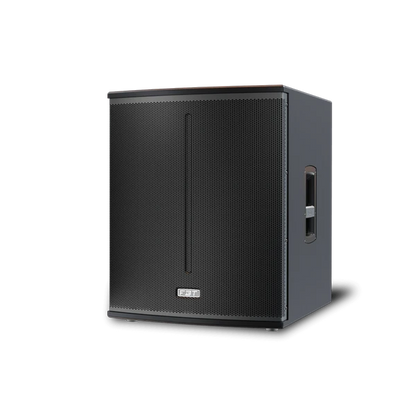

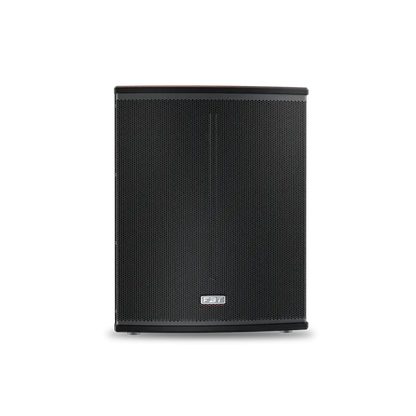

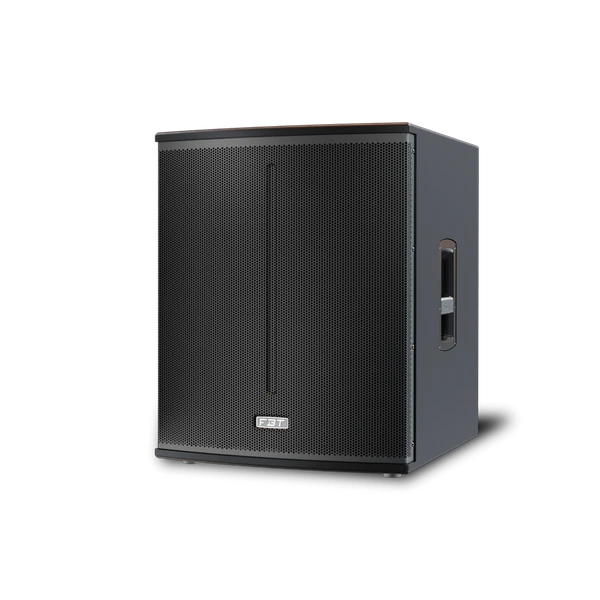

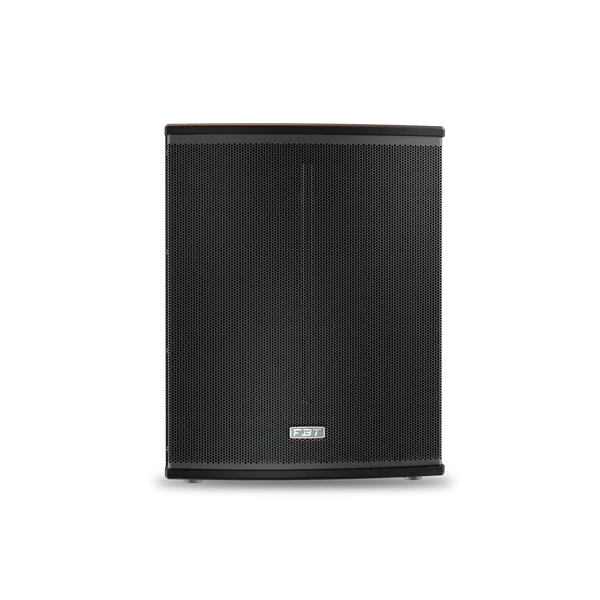

The FBT X-SUB 118SA , 1 x 18" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 118SA provides the following performance criteria: frequency response of 38Hz to 120Hz @ -6dB, maximum SPL of 136 dB peak, 1200W Class D amplifier.
The FBT X-SUB 118SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies). The FBT X-SUB 118SA feature 0,70" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design handles and four optional 100mm/3,93" transport wheels.
The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.
Key Features:
Active subwoofer
18mm / 0,70" birch plywood cabinet
18" woofer / 3" voice coil
1200W RMS Class D power amplifier
4 DSP presets
Frequency response 38Hz - 120Hz
M20 top mount speaker stand socket Optional 100mm / 3,93" transport wheels
Specifications:
Configuration: Bass Reflex
Frequency response: 38Hz - 120Hz (@-6dB)
Low frequency woofer: 18" / 3" Voice Coil
Maximum SPL cont/peak: 136dB Half Space
Dispersion: Omnidirectional
Input impedance: 22 kOhm
Input connector: XLR With Link
Net Weight: 39.2 KG
Transport Weight: 45 KG
