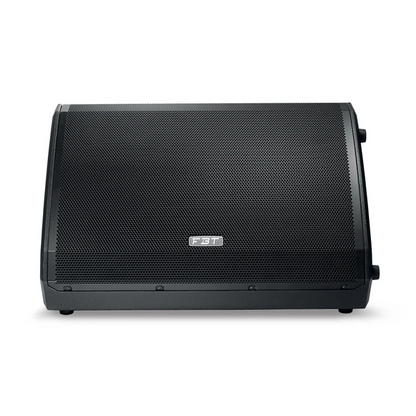

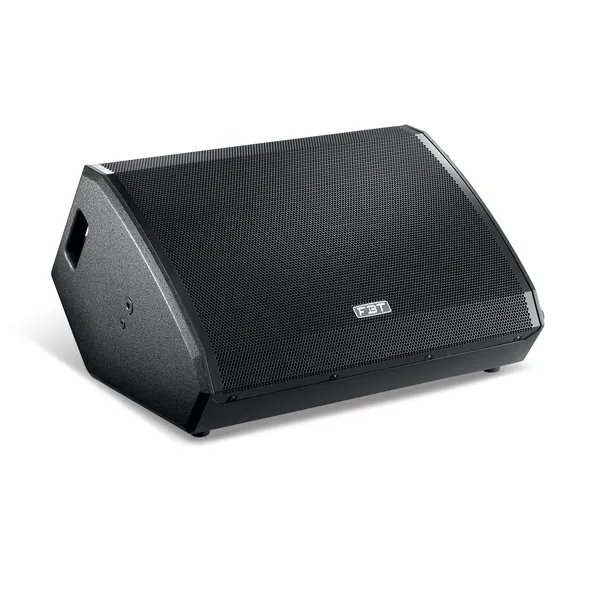

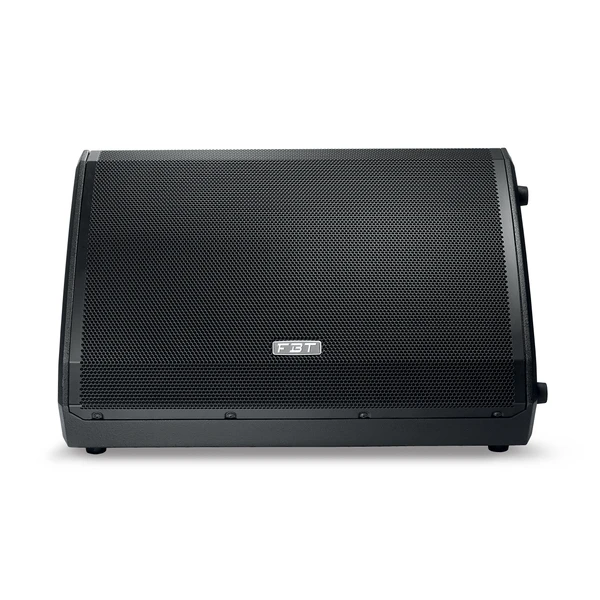

Ventis 115MA

15" + 1" Conical Active Stage Monitor With DSP

Ventis 115MA is a dedicated floor monitor for use on small to medium-sized stages. This active speaker features a 15" coaxial custom woofer with a 2.5" voice coil and a 1" exit throat B&C with a 1.7" voice coil. The built-in amp module provides 700W + 200W, delivering 130dB SPL. Optional brackets for installation are available.

The 112MA and 115MA bring floor monitoring to VENTIS. Rated at 700W + 200W, the bi-amplified 112MA delivers 132dB SPL in a bass reflex design, using a 320mm (12) coaxial custom woofer with a 64mm (2.5) voice coil, 25mm (1) B&C throat and 44mm (1.7) voice coil.

The enclosure has a frequency response of 55Hz to 20kHz with 90° conical dispersion, while onboard DSP offers six factory presents for a broad range of scenarios. For flexibility in use, the monitor offers a 35mm (1.38) stand socket, two integrated carrying handles and an optional wall mount bracket.

Alternatively, the passive 112M is rated at 400W into 8ohm delivering 129dB SPL, with a built-in passive crossover and speakon NL-4 In and Link Out connectors.

Key Features:

Bi-amped
Speakers equipped: 15" Woofer and 1" tweeter
Performance: 700 W Class D (LF) and 200 W Class H (HF)
DSP with 6 presets and 2 freely configureable memory slots
Housing material: 15 mm birch plywood
Coverage pattern (nominal): 90° conical
Frequency range: 55 Hz - 20.000 Hz (-6 dB)
Max SPL: 133 dB

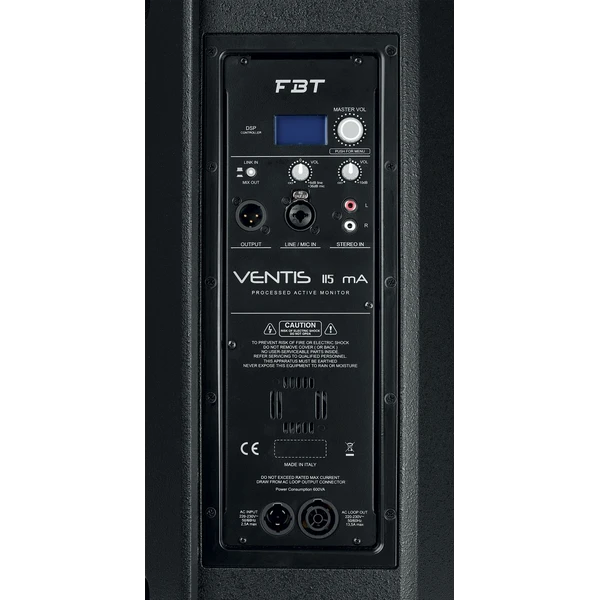

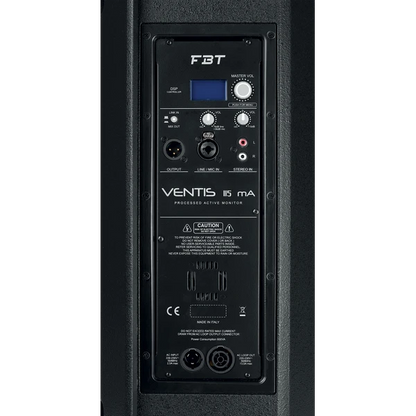

Inputs: XLR / Jack combined input and RCA ("Cinch" stereo)
Left output: XLR male
Dimensions: (W x H x D): 632 x 354 x 516 mm
Weight: 21.3 kg
Colour: Black

Specifications:

Configuration:    2-way coaxial
Built-in Amplifier LF/HF:    700W / 200W RMS
Built-in Amplifier Peak LF/HF:    1400 / 400W
Frequency Response:    50Hz - 20KHz -6dB
Low Frequency Woofer:    15 - 2.5 coil inch
High Frequency Driver:    1 - 1.7 coil inch
Maximum SPL Cont/Peak:    127 / 133 dB
Dispersion:    90° conical
Input Connector:    XLR with loop, RCA ST
AC Power Requirements:    640VA
Power Cord:    5/16.4 m/ft
Net Dimension (WXHXD):    632x354x516 / 24.9x11.9x20.3 mm/inch
Net Weight:    21.3/46.9 kg/lb
Transport Dimension (WXHXD):    732x454x616 / 28.8x17.9x24.2 mm/inch
Transport Weight:    25.8/56.9 kg/lb
