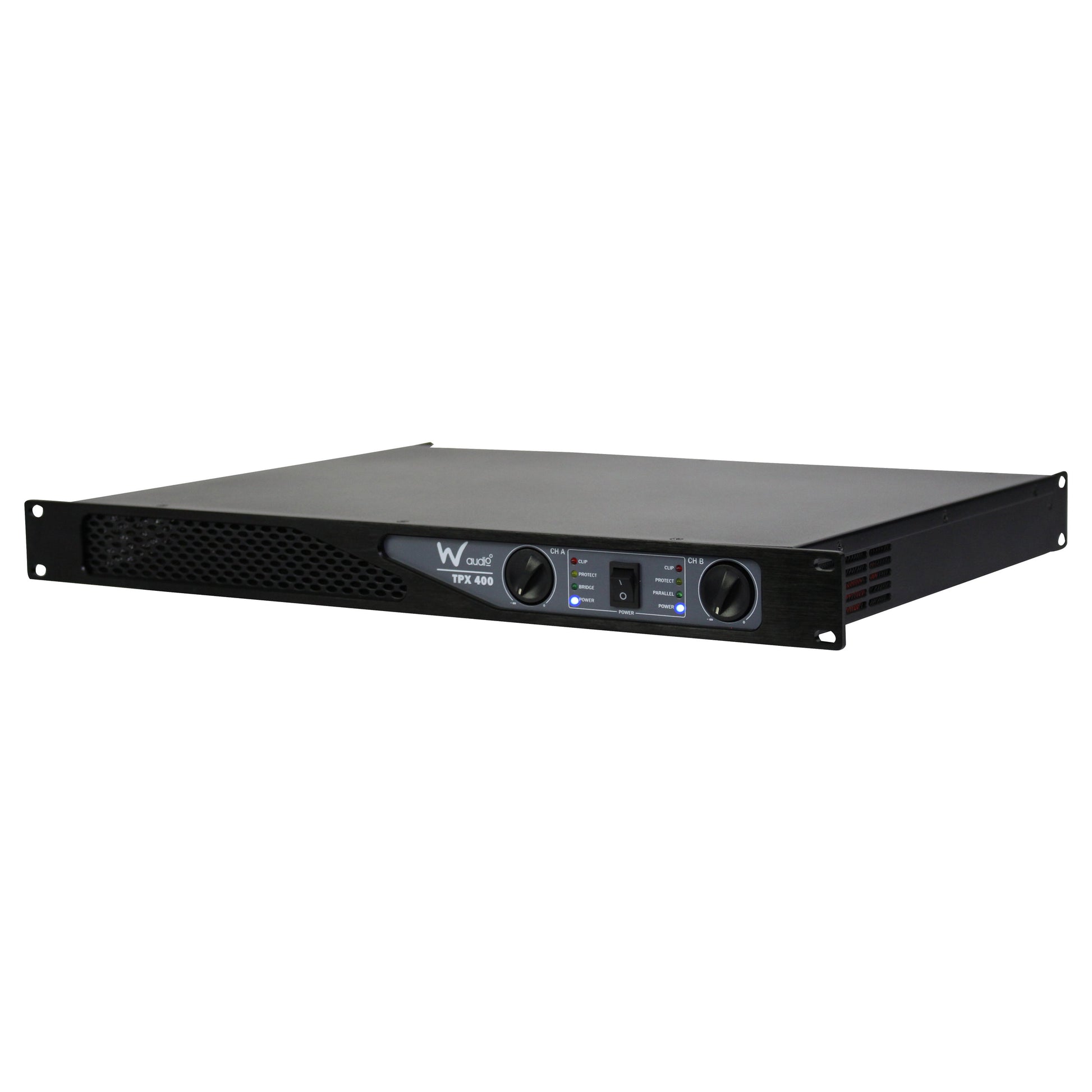

Occupying only 1 unit of space in your rack the TPX Series amplifiers deliver up to 650W of power. These lightweight amplifiers do not compromise when it comes to audio quality using high quality components and low noise fans making them ideal for installation. All models have protection against short circuit DC overheating overloading and have a soft-start delay. LEDs on the front indicate power signal clipping and triggering of the protection circuit.
Features:
2 x 130Wrms @ 8Ω
2 x 200Wrms @ 4Ω
Bridge 400Wrms @ 8Ω
Frequency response: 20Hz to 20kHz
Input sensitivity: 0.775V
Protection circuits: Thermal, short circuit, overload, DC fault protection and AC power supply fuse

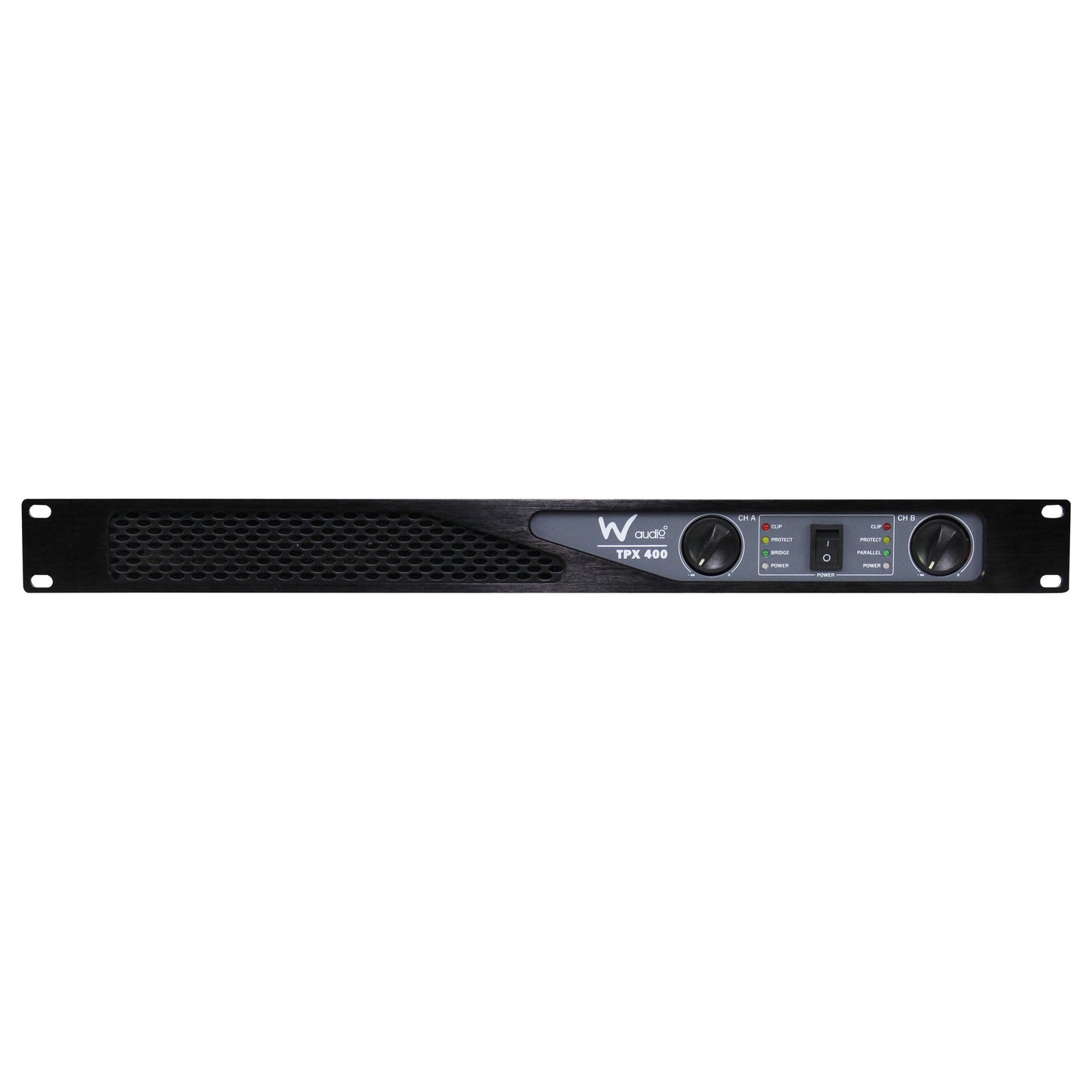

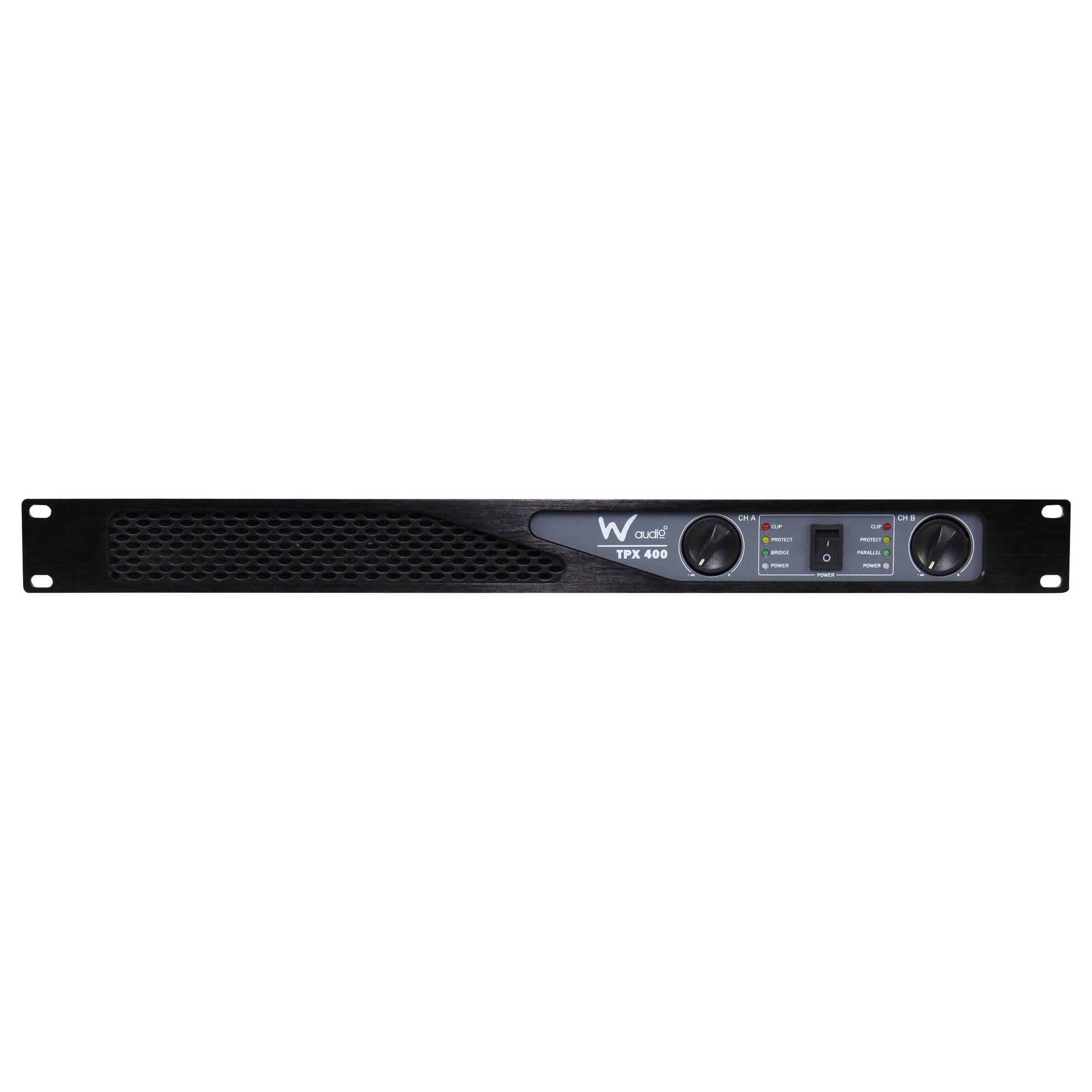

LED indicators: Power, protect and clip
Input connections: 1 x IEC, 2 x XLR sockets, 2 x 1/4” jack sockets

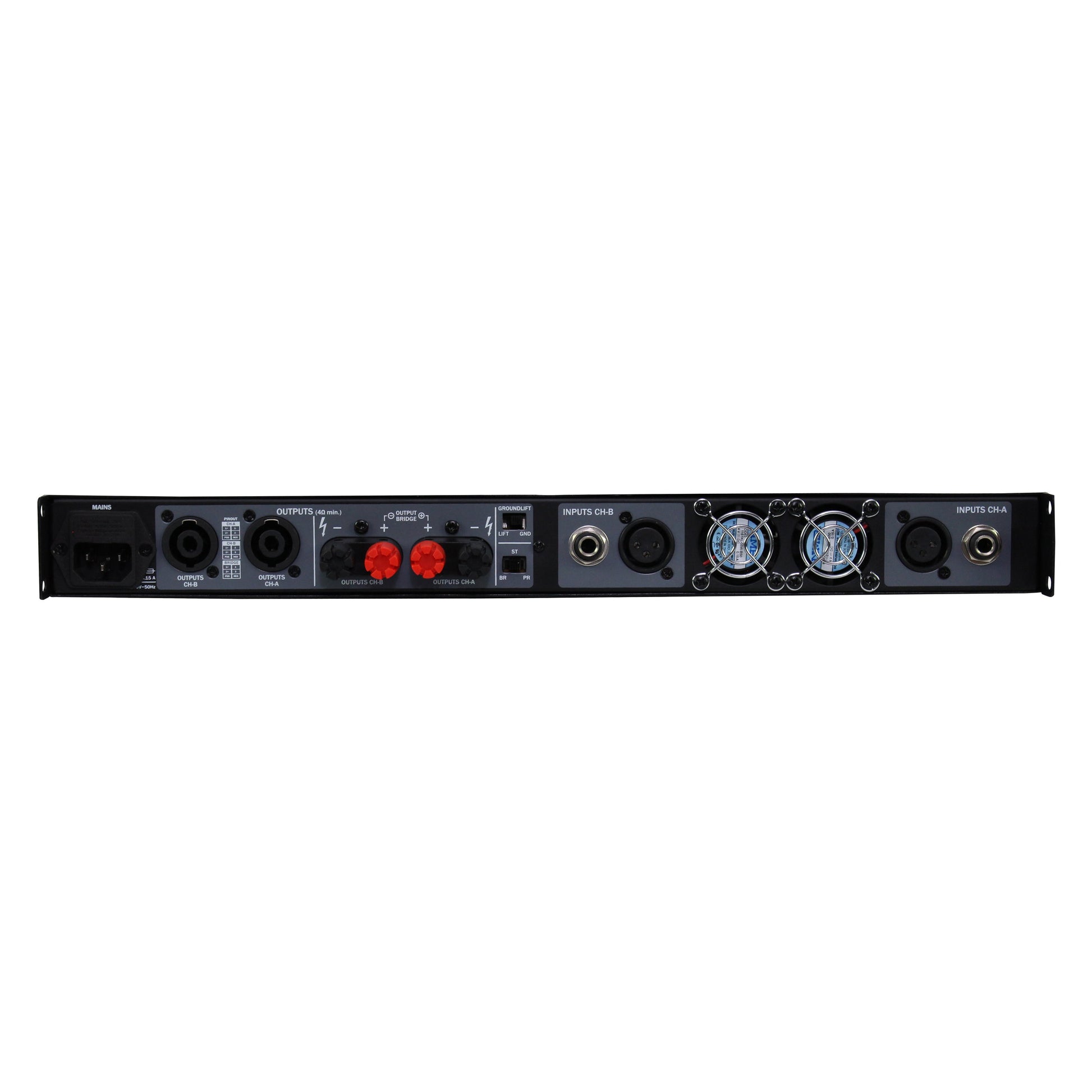

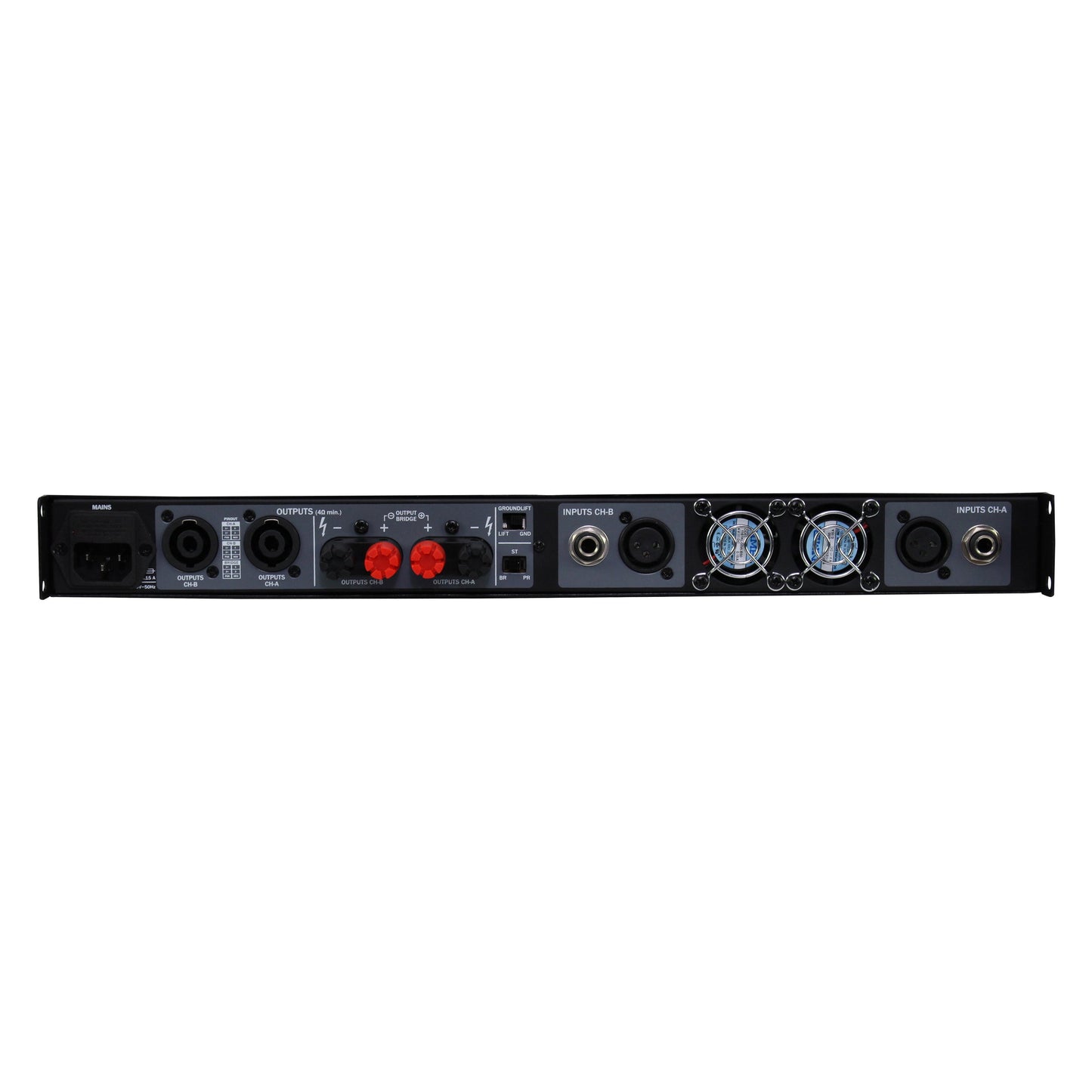

Output connections: 2 x speakON connectors, 2 pairs of binding posts, bridge via binding post
Additional features: Ground lift and switchable stereo, parallel and bridge
Power supply: AC 240V/50Hz
Dimensions (H x W x D): 44 x 484 x 345mm
Weight: 7.4kg
