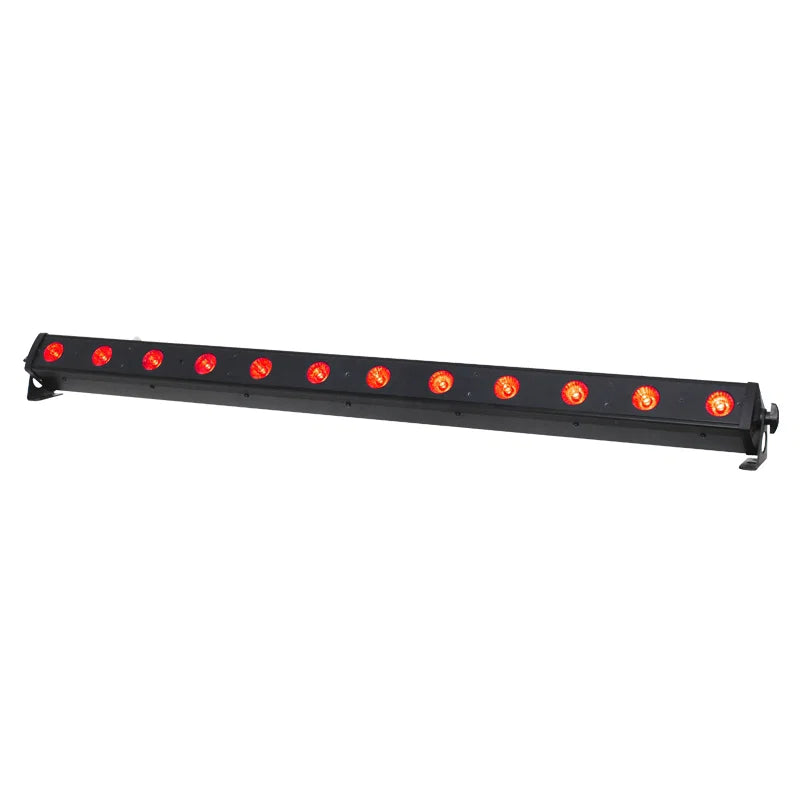

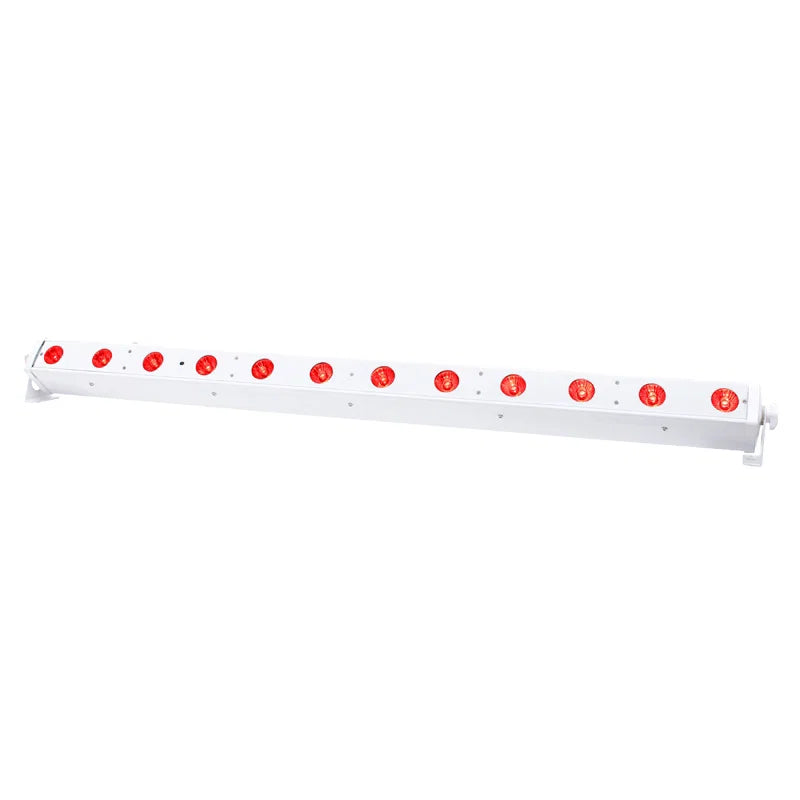

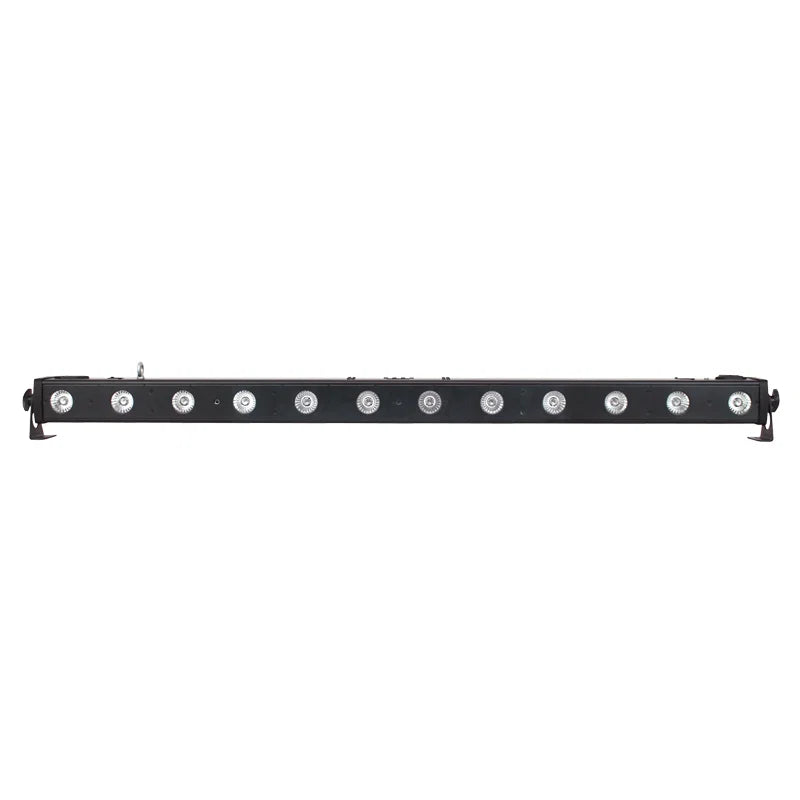

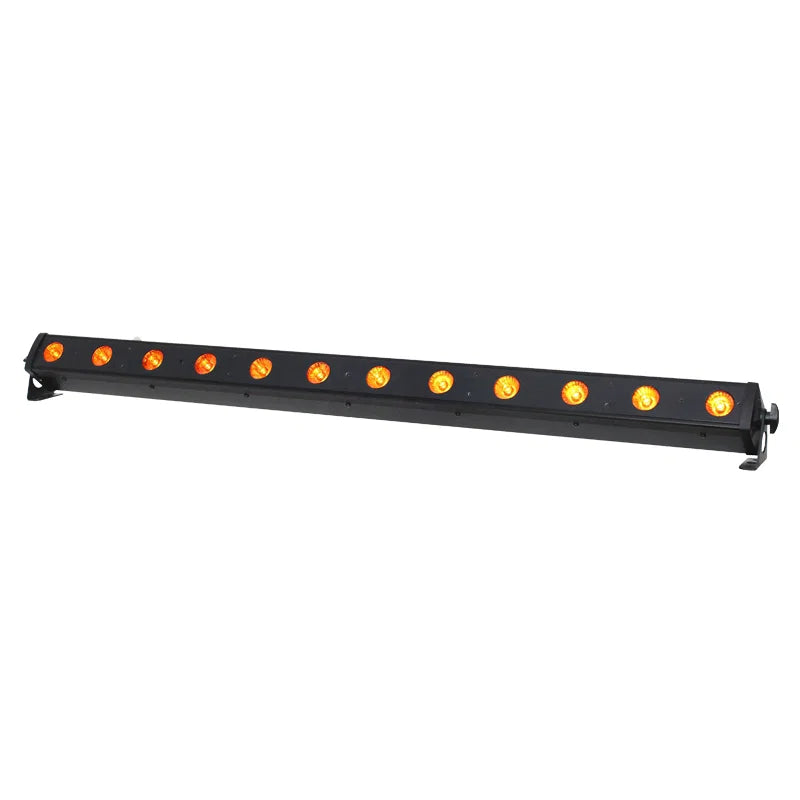

Housing 12 x 5W quad-colour LEDs the ultra bright Slimline 12Q5 batten gives smooth colour mixing from rich saturated hues to subtle pastel shades. Just like the other fixtures in the Q5 series these units have a rugged metal housing and a variety of operational modes. The fixtures are also convection cooled for silent operation. The Slimline 12Q5 batten is the next generation of our ever-popular Q5 series all of which are compatible giving you the option to link together a variety of units from the 12Q5 and 7Q5 ranges. These can then be easily operated via the optional IR remote creating a fully synchronised lightshow.
Features:
12 x 5W quad-colour LEDs (RGBW)
Beam angle: 25° (field angle: 40°)
25° - 2,280 Lux @ 2m
Refresh rate: 400Hz
DMX channels: 2/3/4 or 7 selectable
Static colour, colour change, colour fade, auto run, sound active and master/slave modes
0 - 100% dimming
Variable strobe
Bracket allows for multiple rigging or floor standing applications
4 button menu with LCD display

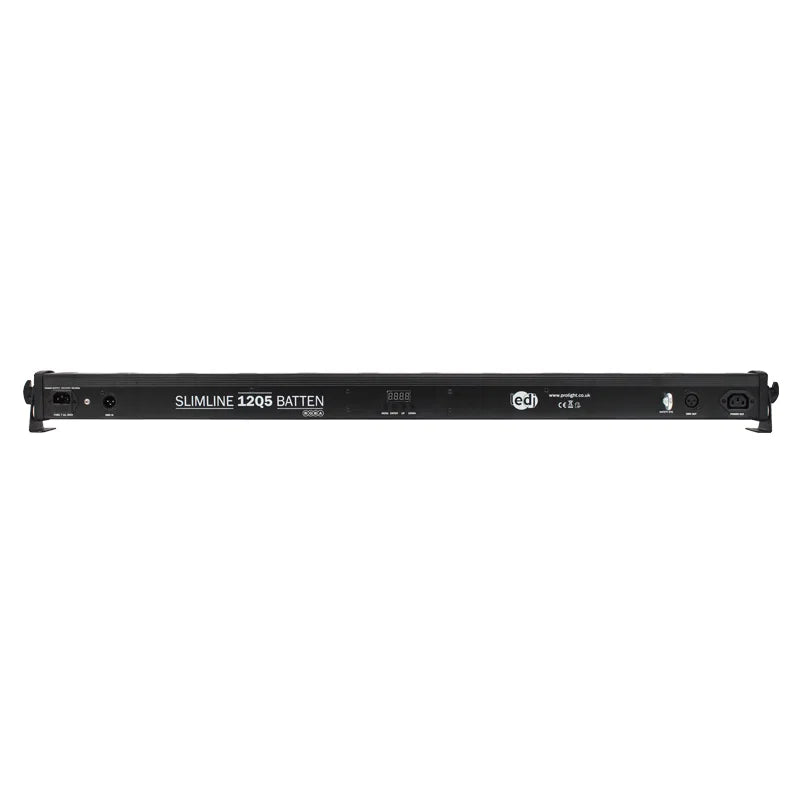

IEC power input/output
3-Pin XLR input/output
Convection cooled
Optional IR remote (LEDJ90C)
Linkable with the Slimline 5Q5 and 7Q5
Power consumption: 70W
Power supply: 100~240V, 50/60Hz
Fuse: F1A 250V
Dimensions (H x W x D): 87 x 1018 x 63mm
Weight: 2.2kg
