Small Design for easy truss mounting

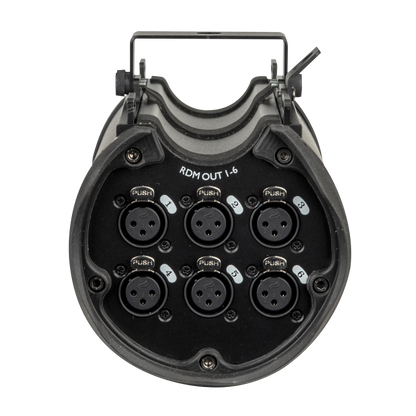

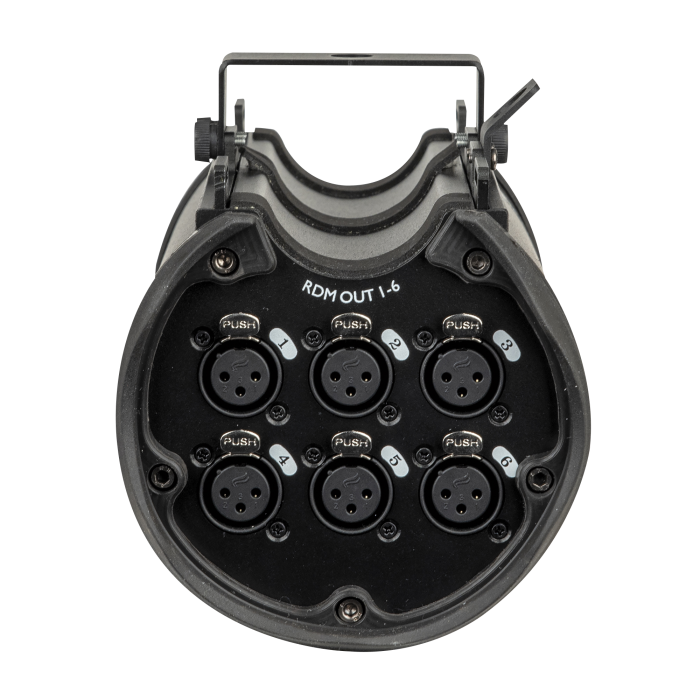

DMX/RDM splitter for 6 outputs
Power Pro in/out
Supports Remote Device Management (RDM) Protocol

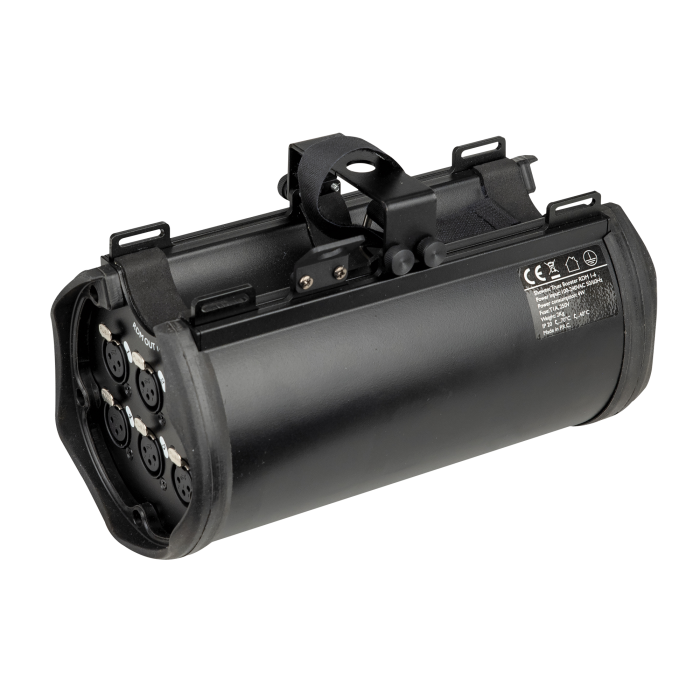

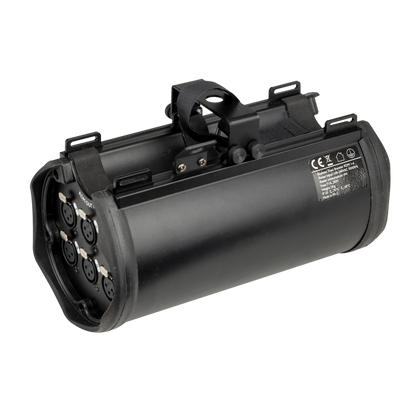

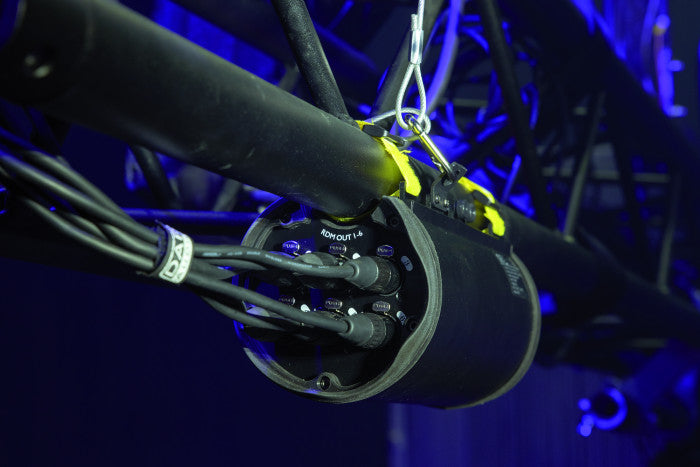

The Truss Booster RDM is a compact and nifty solution for splitting and boosting your DMX or RDM signal. Mounting on truss or onto pipes is possible in various ways by using the bracket or by adding hook and loop straps to the 4 slots. A rubber protection-ring on either side of the rugged housing makes this booster ideal for road productions.
Available in 3 and 5 pin.
Specifications:
Control and Programming
Control Mode DMX
Protocols DMX, RDM
Universes 1
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 5 W

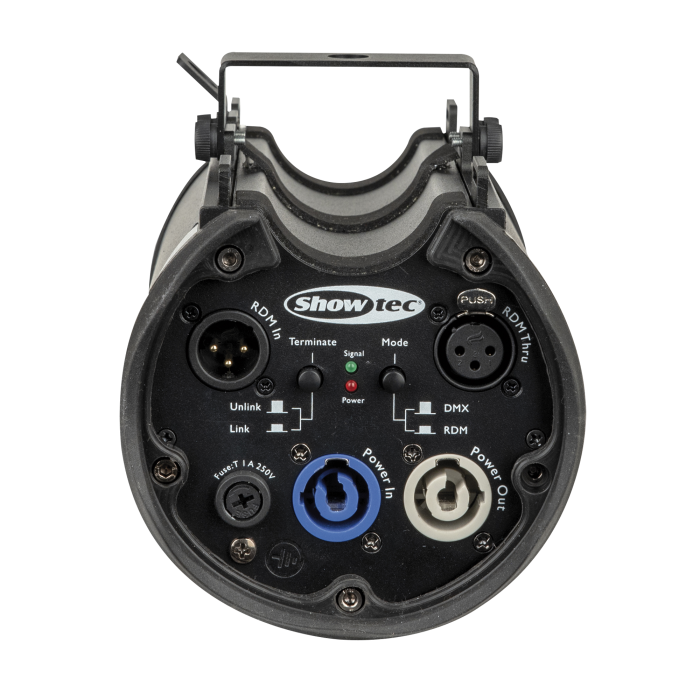

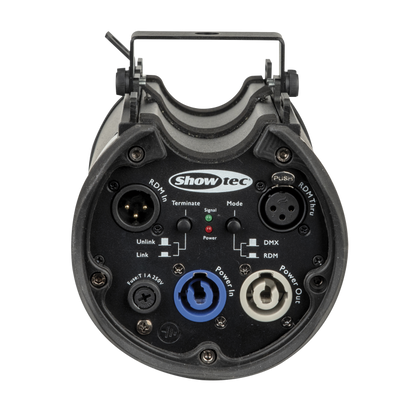

Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 240 mm (9.449?)
Width (mm) 124 mm (4.882?)
Height (mm) 150 mm (5.906?)
Weight 1.6 kg (3.527 lb)
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black
Product Properties
LED Indicators Power, Signal
Thermal Specifications
Maximum Ambient Temperature 55 °C (131 °F)
Minimum Operating Temperature -10 °C (14 °F)
Included Items
Included Cables Power Pro Cable
Included Accessories Velco strap 2 pcs, Bracket, Screws
