DMX/RDM splitter for 4 outputs
Especially designed for truss mounting
Supports Remote Device Management (RDM) Protocol

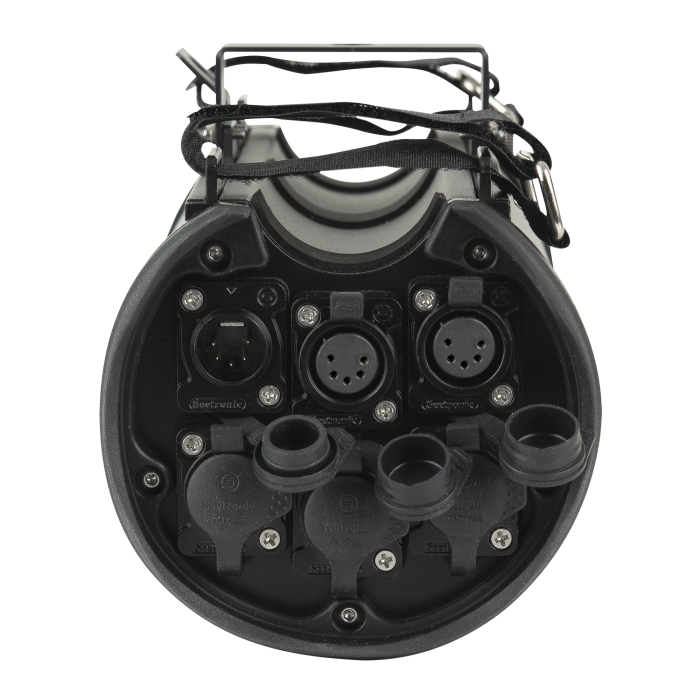

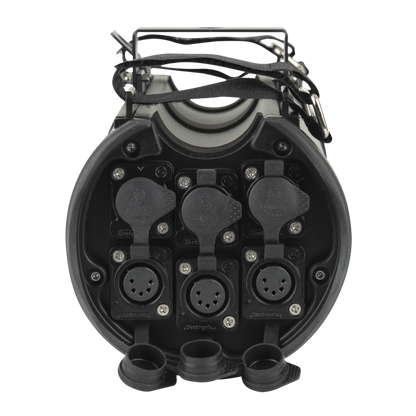

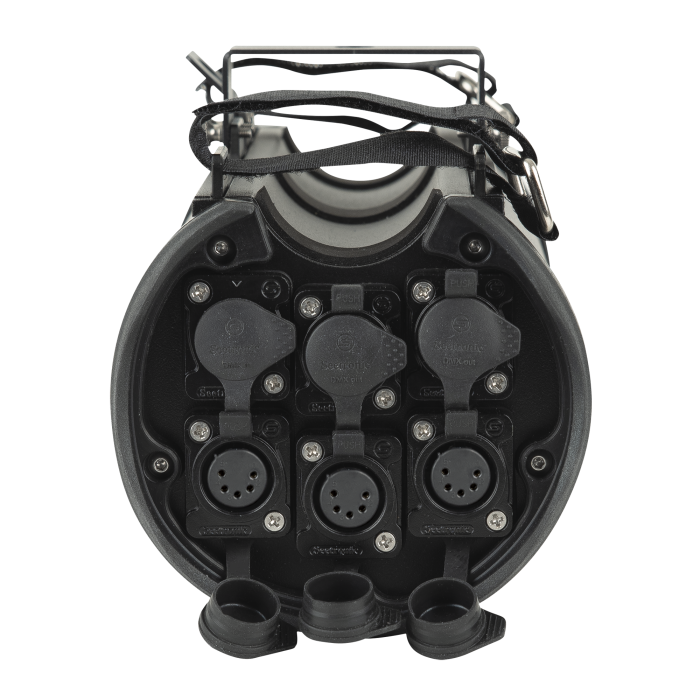

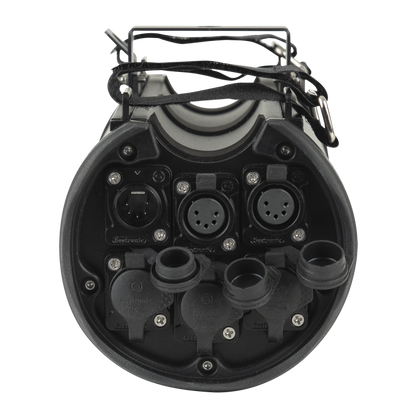

IP65-rated housing and Seetronic connectors
Power Pro True in/out

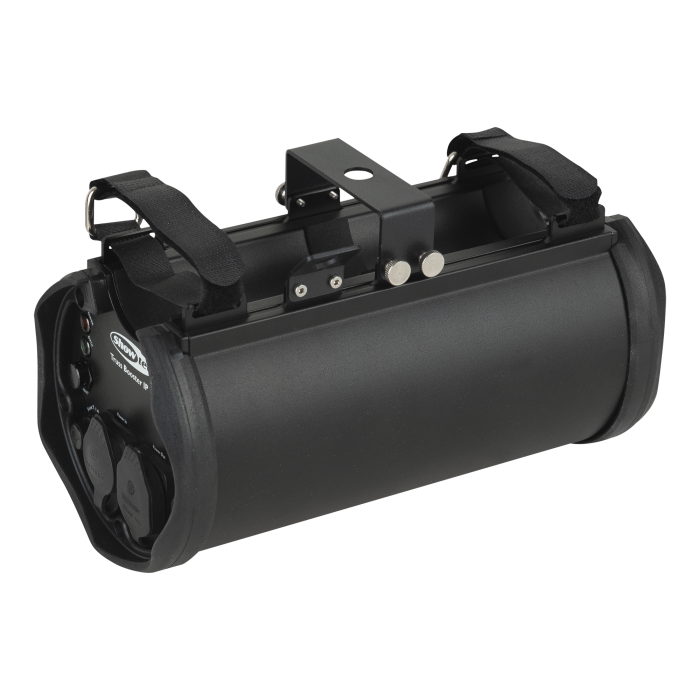

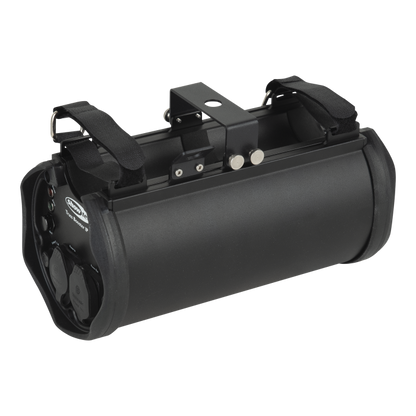

The Booster IP 1-4 is a compact and nifty solution for splitting and boosting your DMX or RDM signal. Mounting on truss or onto pipes is possible in various ways by using the bracket or by adding hook and loop straps to the 4 slots. A rubber protection-ring on either side of the rugged housing makes this booster ideal for road productions, while the IP65 rating makes it suitable for outdoor use too.
Available in 3 and 5 pin.
Specifications:
Control and Programming
Control Mode DMX
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz
Power Consumption 5 W
Power Connector In Power Pro True
DMX Connector XLR 3P In/Out or XLR 5P In/Out
Mechanical Specifications
Length (mm) 245 mm (9.646?)
Width (mm) 125 mm (4.921?)
Height (mm) 150 mm (5.906?)
Weight 2.45 kg (5.401 lb)
IP Rating IP65
Housing Aluminium
Colour Black
Product Properties
LED Indicators Power, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -5 °C (23 °F)
