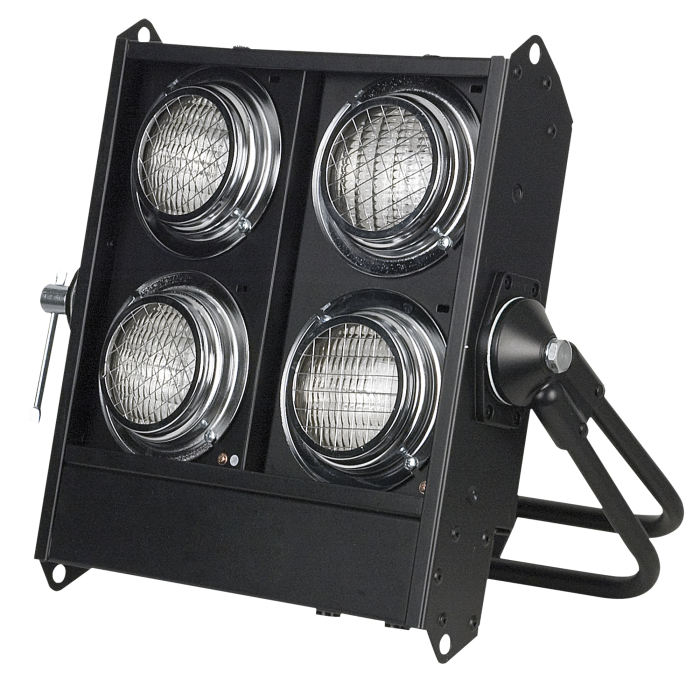

Showtec Stage Blinder 4 DMX Black

Dimmer built-in
DMX control
Bulbs included

The Stage Blinder 4 DMX is an active version of the already popular Stage Blinder 4. It has a built-in 2 channel dimmer so that the Stage Blinder can be controlled and dimmed by DMX.

Specifications

Source
Light Source Type Halogen
Light Source Quantity 4
Light Source Power 650 W
Number of Sockets 4
Luminous Flux (Total) 96000 lm

Control and Programming
Control Mode Auto, DMX, Manual
DMX Channels 2
Protocols DMX

Dynamic Effects
Dimmer 0-100 %

Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Power Consumption 2600 W
Power Connector In Schuko Plug
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Cable Length 0.80 m

Mechanical Specifications
Length (mm) 470 mm (18.504?)
Width (mm) 110 mm (4.331?)
Height (mm) 425 mm (16.732?)
Weight 7 kg (15.432 lb)
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal
Colour Black

Product Properties
Cooling Convection

Rigging
Mounting Options Clamp
Safety Attachment Yes

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 80 °C (176 °F)

Included Items
Included Cables Fixed Cable
Included Accessories Bulb(s)
Included Rigging Bracket
