Very punchy single blinder
Tungsten simulation
Compact design

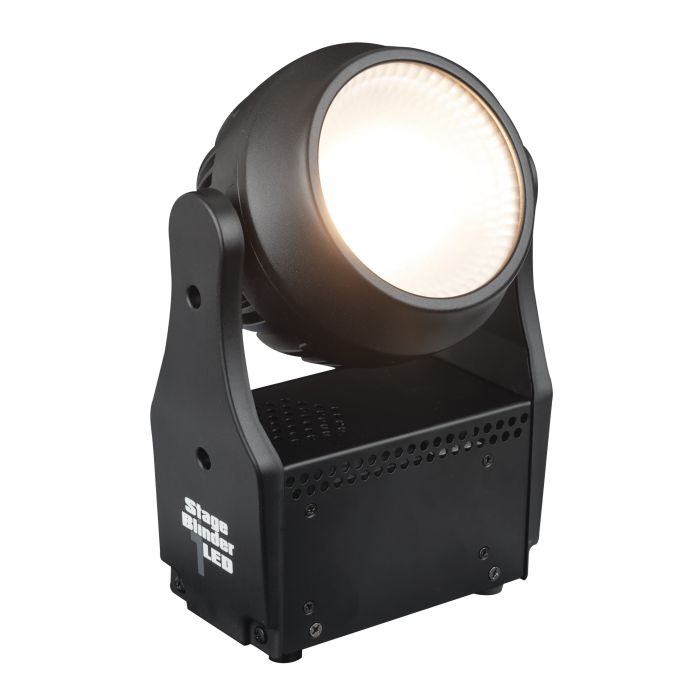

The Showtec Stage Blinder 1 LED is an audience blinder with a single pod. The unit can be controlled by DMX and holds a 80 watt Dual White COB. It’s the ideal power saving solution for giving your stage the ultimate blinding experience.
Specifications
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 80 W
LED Colour Type WW
Refresh Rate 3100 Hz
Luminous Flux (Total) 4190 lm
CCT 2490 K
Optical
Beam Angle (Horizontal) 65.5 °
Control and Programming
Control Mode Built-in Program, DMX
DMX Channels 1, 2
Protocols DMX
Display LCD
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 85 W
Power Connector In Power Pro Blue
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 233 mm (9.173?)
Width (mm) 170 mm (6.693?)
Height (mm) 87 mm (3.425?)
Weight 2 kg (4.409 lb)
IP Rating IP20 (indoor use only)
Material Metal
Housing Metal, Plastic
Colour Black
Product Properties
Cooling Axial fan
Rigging
Mounting Options Clamp
Safety Attachment Yes
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 70 °C (158 °F)
Minimum Operating Temperature -5 °C (23 °F)
Included Items
Included Cables Power Pro Cable
