Intelligent light DMX controller
Control 12 fixtures up to 16 channels each
Patchable channels for each fixture
Programmable Speed & Fade time for chases
240 scenes & 6 chases

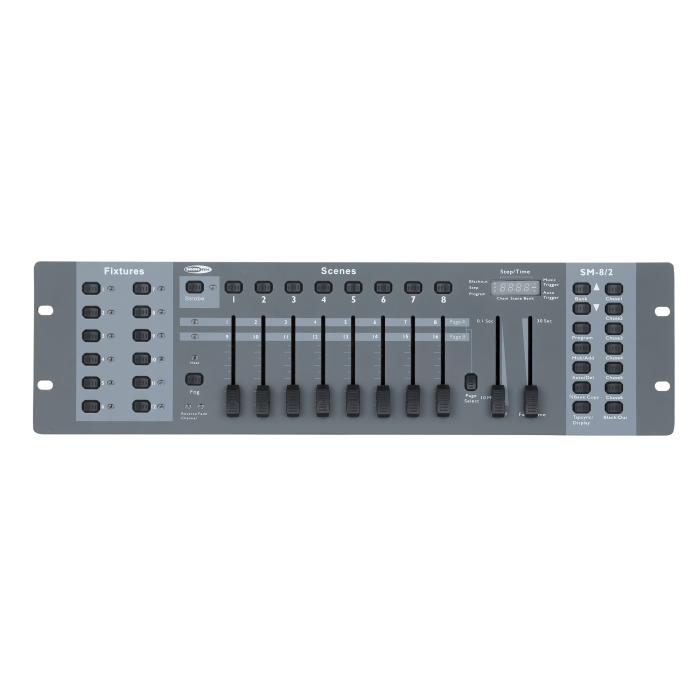

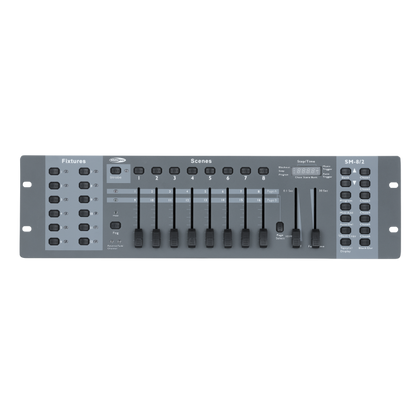

The SM-8/2 is an ideal entry level controller for use with intelligent lighting fixtures up to 16 channels. It has 8 faders which can control 16 channels on 2 pages. Up to 12 fixtures can be selected and programmed. Every channel can be patched to any fader and it can program 250 scenes and 6 chases.
Specifications:
Control and Programming
Control Mode DMX, Manual, MIDI, Sound
DMX Channels 192
Patch mode Yes
Display 7-segment, LED
Fixtures 12
Fixture Channels 16
Buttons 37
Chases 6
Faders 10
Memories 240
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz (Power adapter)
Power Consumption 2.7 W

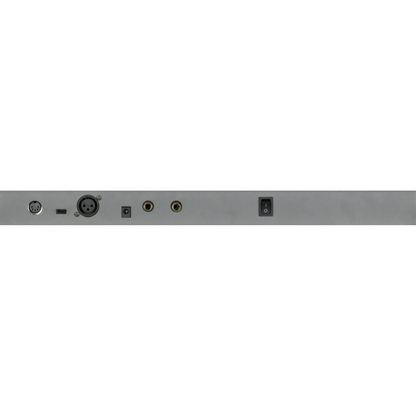

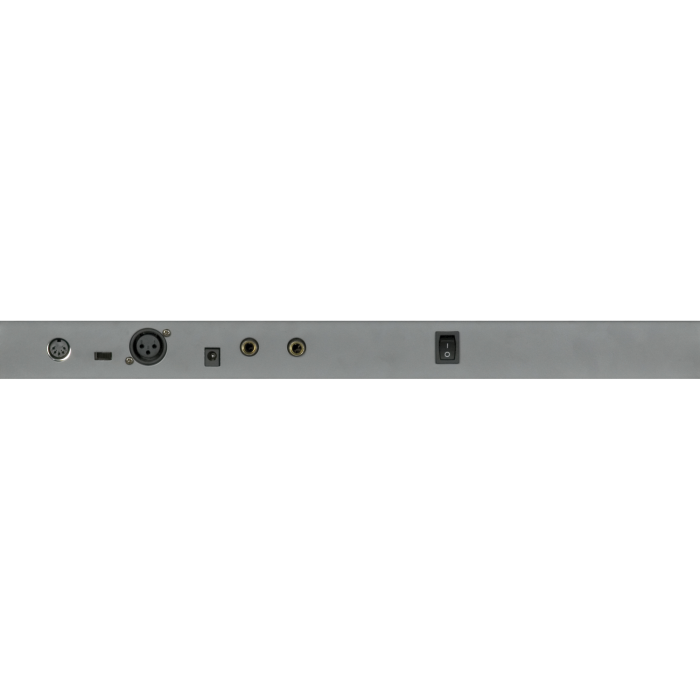

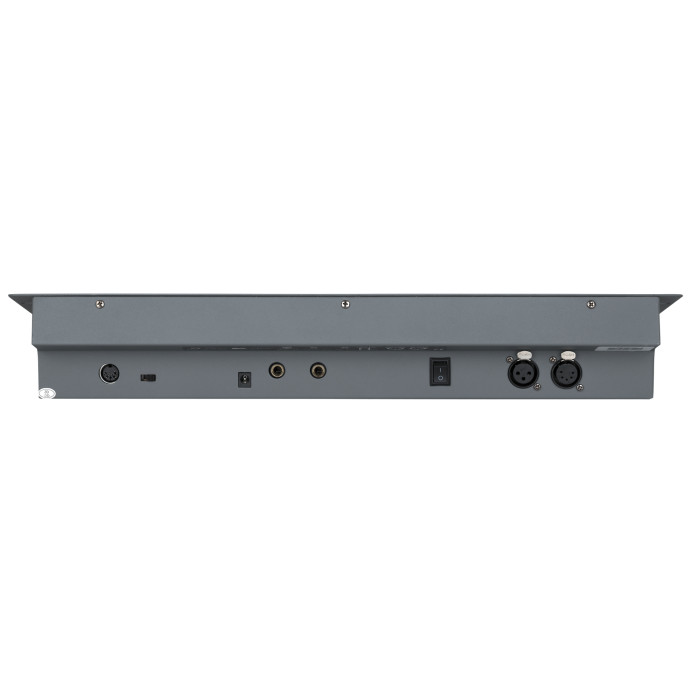

Power Connector In Low Voltage DC plug
DMX Connector Out XLR 3P, XLR 5P
Power Adapter
Adapter type AC-DC adapter
Input voltage 220-240 V AC, 50/60 Hz V
Output voltage 9 V DC
Mechanical Specifications
Width (mm) 482 mm (18.976?)
Depth (mm) 136 mm (5.354?)
Height (mm) 80 mm (3.15?)
Weight 2.2 kg (4.85 lb)
Rack Units 3 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black, Gray
Product Properties
LED Indicators Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables None
Included Accessories Adapter
