Intelligent light DMX controller
Control 16 fixtures up to 32 channels each
Patchable channels for each fixture
Ready-to-use Shape Engine
Show backup on USB

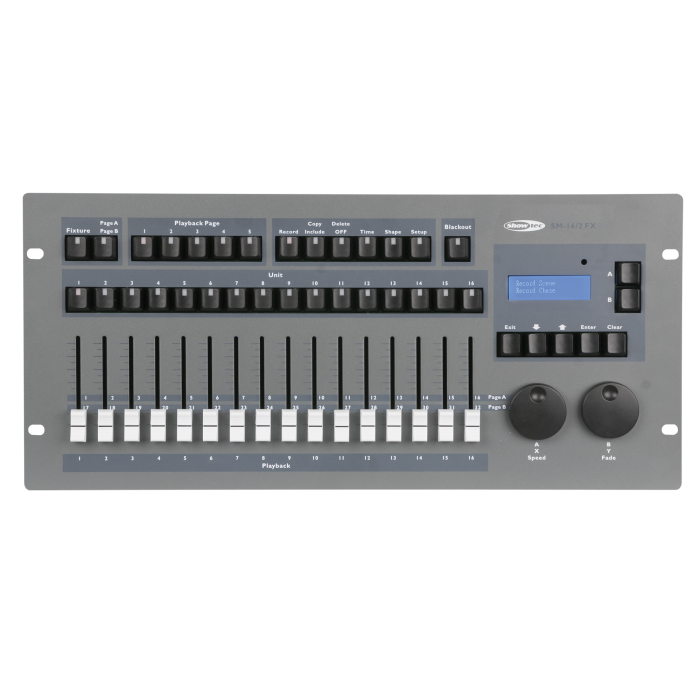

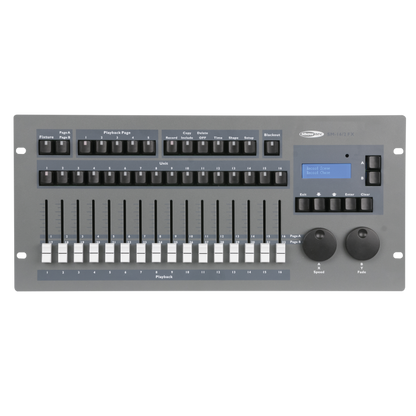

The SM-16/FX has a small size but offers great functionality to any operator. It can control up to 16 fixtures which each can be up to 32 channels. 2 rotaries ensure precise positioning of your pan and tilt axis. Robust cherry-keys allow smooth and professional operation. The SM-16/2 FX can hold up to 80 chases with 100 steps each and 80 scenes. Moreover it contains a ready-to-use shape engine which makes it the most powerful controller in its league.
Specifications:
Control and Programming
Control Mode Auto, DMX, Manual
DMX Channels 512
Patch mode Yes
Display LCD
Fixtures 16
Fixture Channels 32
Buttons 37
Chases 80
Encoder Wheels 2
Faders 16
Memories 80
Playback Faders 16
Playback Pages 5
Effects Engine Yes
Universes 1

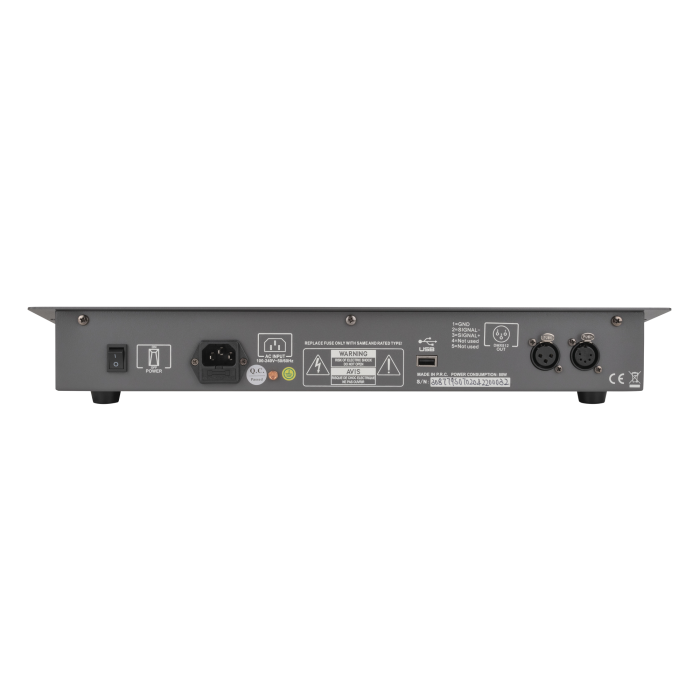

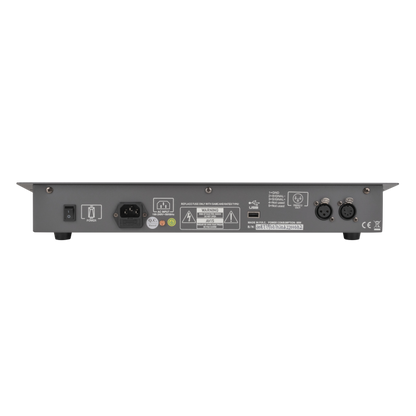

Electrical Specifications and Connections
Power Supply 240 V AC 50/60 Hz
Power Consumption 2 W
Power Connector In IEC
DMX Connector Out XLR 3P, XLR 5P
Data Connector In USB
Data Connector Out USB
Mechanical Specifications
Length (mm) 483 mm (19.016?)
Width (mm) 483 mm (19.016?)
Depth (mm) 220 mm (8.661?)
Height (mm) 75 mm (2.953?)
Weight 3.7 kg (8.157 lb)
Rack Units 5 U
IP Rating IP20 (indoor use only)
Housing Metal
Colour Gray
Product Properties
LED Indicators Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables IEC cable
