48 Multifunctional channel faders
Up to 96 Scenes / Chases with max 999 steps
Midi In & Out
Remote black out/full on possibility

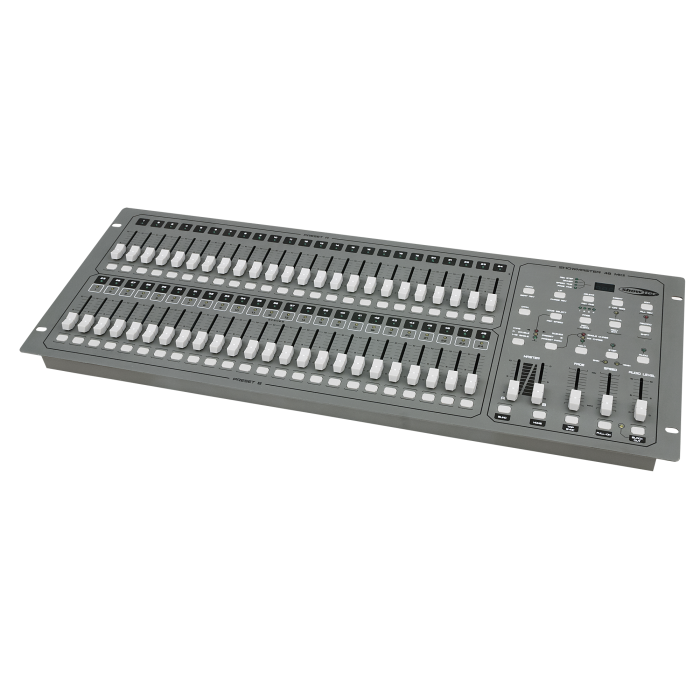

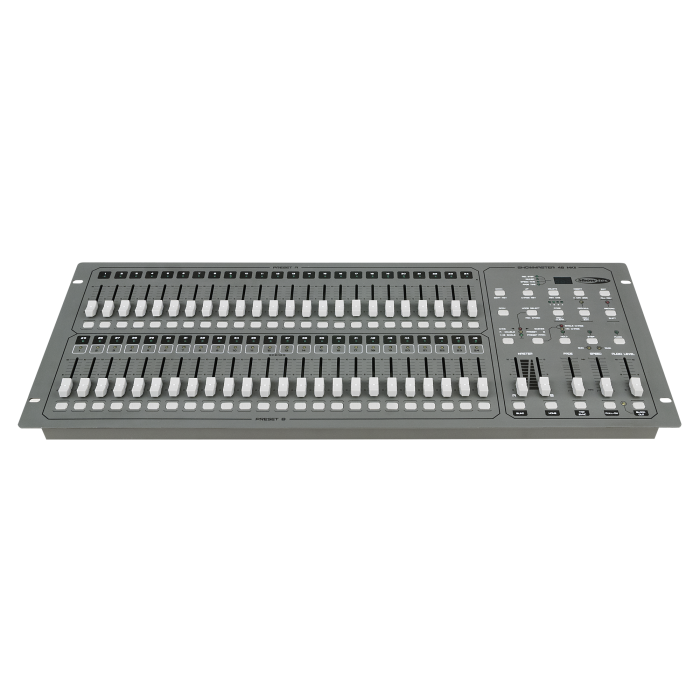

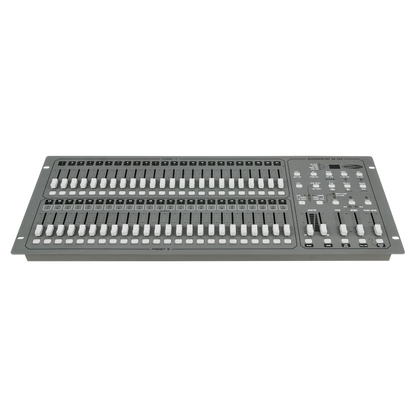

The Showmaster 48 MKII is the bigger brother of the "normal" Showmaster: with 48 channels instead of 24! The Showmaster 48 MKII is a 2-banks 24 fader, 1-bank 48 fader mixing console. The Showmaster 48 MKII controls DMX and has also the capability to be used with MIDI protocol to allow real-time programs. The Showmaster 48 MKII controls 2x24 channels (single bank) or 48 channels. The Showmaster 48 MKII can program 96 scenes or chases of 999 steps or a loop with a total of 23976 steps. Programs can be run automatically or by external or internal music input. It is also possible to control your lightshow by the built-in MIDI-interface to allow a real-time live-show to your music.
Specifications:
Control and Programming
Control Mode Manual, MIDI, Sound
DMX Channels 48
Buttons 68
Chases 96
Faders 53
Memories 23976
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz (Power adapter)
Output voltage 12 V DC
Power Consumption 6 W
Power Connector In Low Voltage DC plug
DMX Connector Out XLR 3P
MIDI Connector Yes
Audio Triggers 2
Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz V
Output voltage 12 V DC
Mechanical Specifications
Width (mm) 710 mm (27.953?)
Depth (mm) 267 mm (10.512?)
Height (mm) 90 mm (3.543?)
Weight 6.2 kg (13.669 lb)
Rack Units 6 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Gray
Product Properties
LED Indicators Operation mode, Output level, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables None
Included Accessories Adapter
