24 multifunctional channel faders
Up to 48 Scenes / Chases with max 999 steps
Detachable frame
Midi In & Out
Remote black out/full on possibility

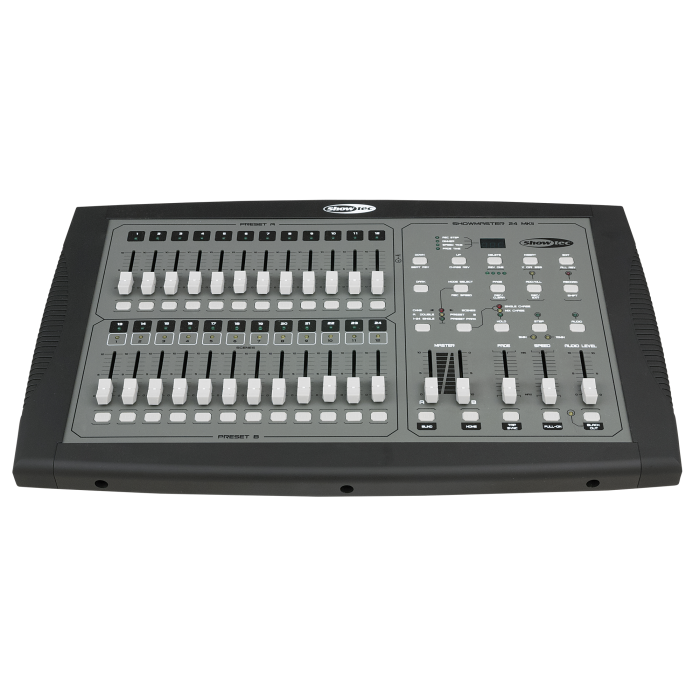

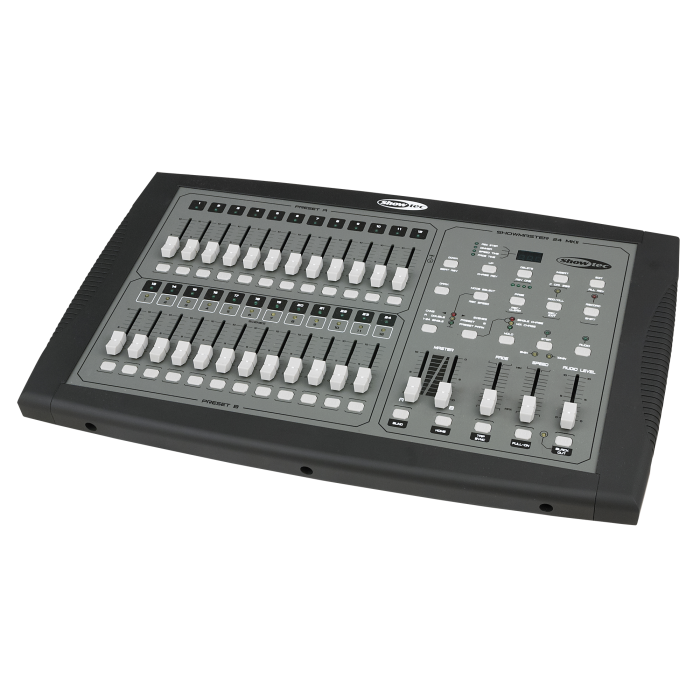

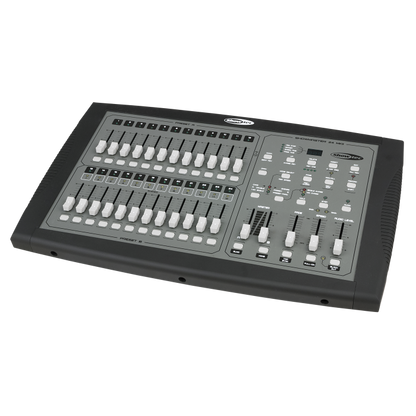

The Showmaster 24 MKII is a 2-banks 12 fader, 1-bank 24 fader mixing console, it controls DMX and has also the capability to be used with MIDI protocol to allow real-time programs. The Showmaster 24 MKII controls 2x 12 channels (single bank) or 24 channels. The Showmaster 24 MKII can program 48 scenes or chases of 999 steps or a loop with a total of 11988 steps. Programs can be run automatically or by external or internal music-input. It is also possible to control your lightshow by the built in MIDI-interface to allow a real-time live-show to your music.
Incl. side panels
Incl. 1 power adapter
Specifications:
Control and Programming
Control Mode Manual, MIDI, Sound
DMX Channels 24
Buttons 44
Chases 48
Faders 29
Memories 23976
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz (Power adapter)
Output voltage 12 V DC
Power Consumption 6 W
Power Connector In Low Voltage DC plug
DMX Connector Out XLR 3P
MIDI Connector Yes
Audio Triggers 2
Power Adapter
Adapter type AC-DC adapter
Input voltage 100-240 V AC, 50/60 Hz V
Output voltage 12 V DC
Mechanical Specifications
Width (mm) 530 mm (20.866?)
Depth (mm) 330 mm (12.992?)
Height (mm) 150 mm (5.906?)
Weight 4.8 kg (10.582 lb)
Rack Units 6 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black, Gray
Product Properties
LED Indicators Operation mode, Output level, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables None
Included Accessories Adapter
