Compact 6-channel DMX controller
Master dim fader
Easy to use
Ideal for exhibitions

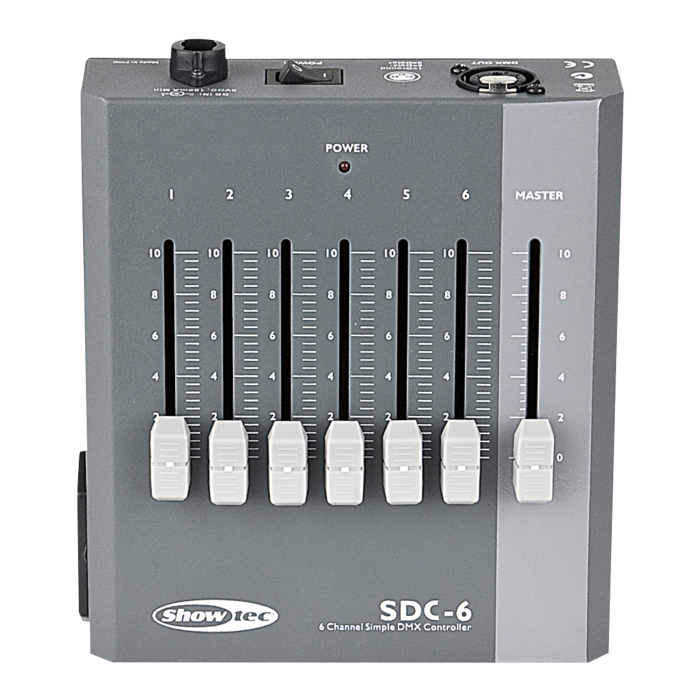

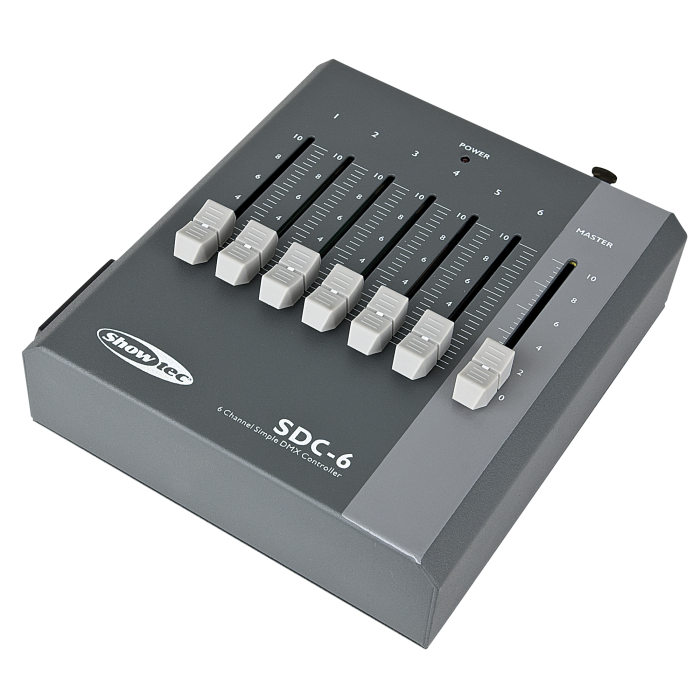

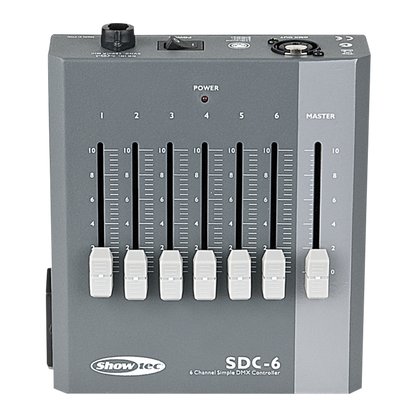

The SDC-6 is a small battery operated 6-channel DMX controller. It is very suitable for easy applications such as exhibitions, small shops as well for testing of your DMX equipment.
• 6 individual Channel Fader
• 1 Master Fader
• 6 DMX Channels (1 to 6)
• Compact Design & Simple Operation
Specifications:
Control and Programming
Control Mode DMX, Manual
DMX Channels 6
Faders 7
Electrical Specifications and Connections
Power Supply 230 V AC 50 Hz (Power adapter)
Output voltage 12 V DC
Power Consumption 1 W
Power Connector In Low Voltage DC plug

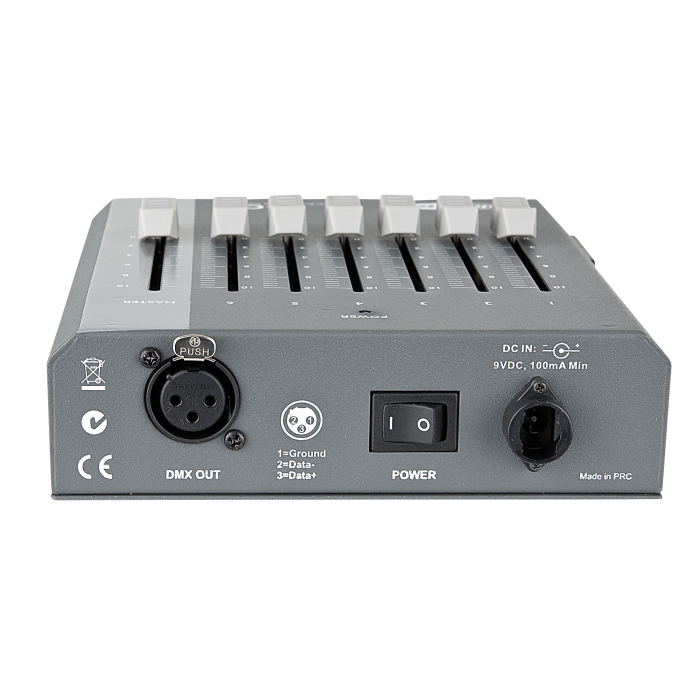

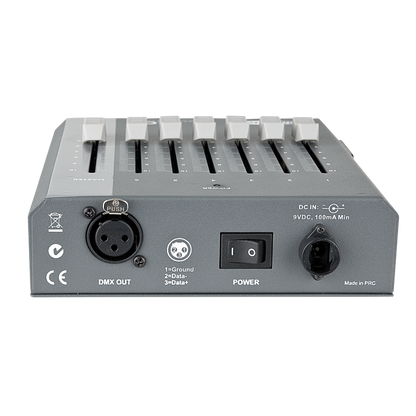

DMX Connector Out XLR 3P
Power Adapter
Adapter type AC-DC adapter
Input voltage 230 V AC, 50 Hz V
Output voltage 12 V DC
Mechanical Specifications
Width (mm) 149 mm (5.866?)
Depth (mm) 170 mm (6.693?)
Height (mm) 51 mm (2.008?)
Weight 0.8 kg (1.764 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Gray
Product Properties
LED Indicators Power
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables None
Included Accessories Adapter
