1024-channel output
Internal clock / calendar
8 external trigger contacts
Including IR remote and external IR sensor
The Quick DMX Rack 1024 is a standalone interface which can store 16 different chases or scenes. This makes the unit very suitable for fixed installations. Because of the basic concept even non-technical users can control their lightshow with Quick DMX Rack. They can select 16 programs that are pre-programmed by an installer. To edit or change chases or scenes the unit must be linked with Quick DMX software. It is also possible to use the controller as 1024-channel DMX interface. The interface has 3 indication LEDs, power, USB link and DMX input.

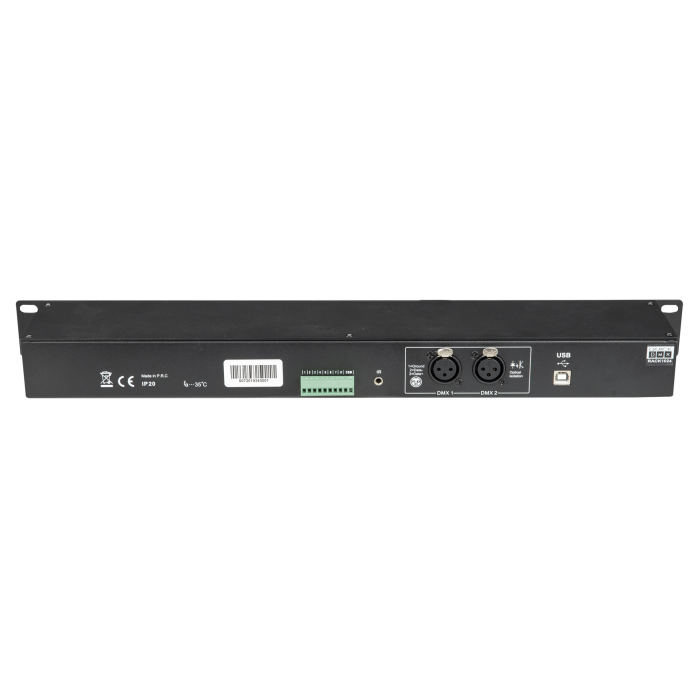

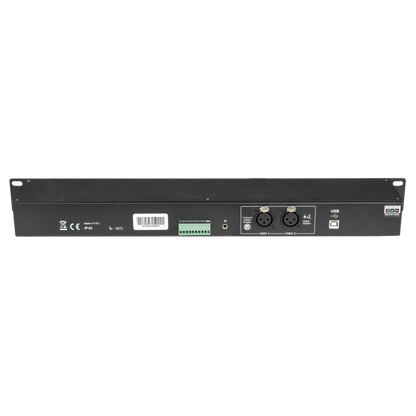

8 external contacts at the backside allow you to connect any external switch or trigger which can be programmed to start a scene or show.

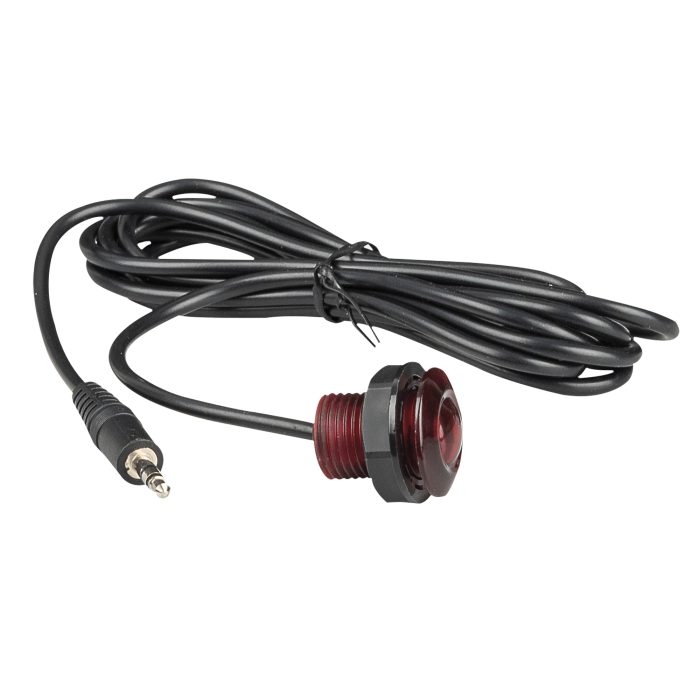

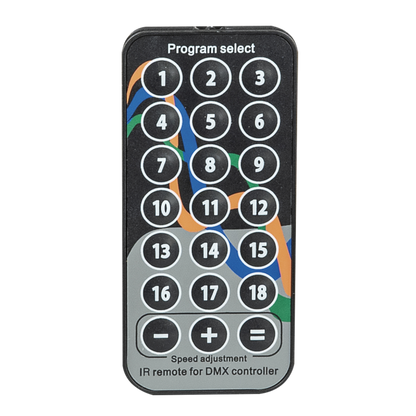

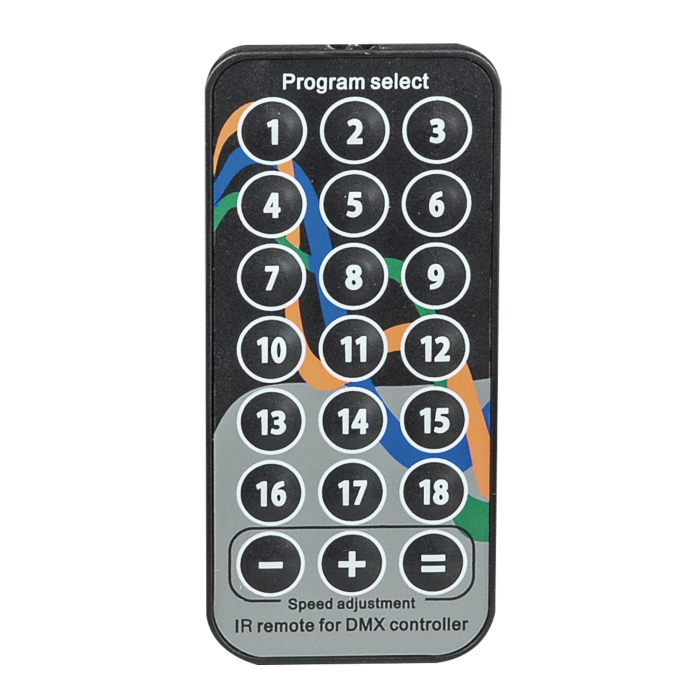

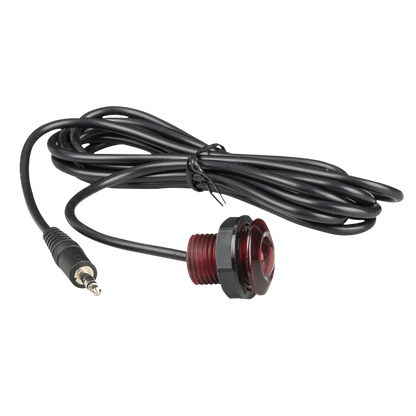

The Quick DMX 1024 rack comes including an external Infra-Red receiver as well a Infra-Red remote control to easily select and start the desired scene or show.
The Quick DMX Rack 1024 is the right solution for installations in hospitality, exhibitions, museums and theme parcs.
Specifications:
Software Specifications
Supported Operating Systems Mac, Windows
Control and Programming
Control Mode DMX, IR, PC Software
DMX Channels 1024
Universes 2
Electrical Specifications and Connections
Power Supply 9 V DC
Power Consumption 2.7 W
Power Connector In USB
DMX Connector Out XLR 3P
Data Connector In USB
Mechanical Specifications
Length (mm) 483 mm (19.016?)
Width (mm) 78 mm (3.071?)
Height (mm) 44.5 mm (1.752?)
Installation Depth (Excl. Connector) 78 mm (3.071?)
Weight 1.6 kg (3.527 lb)
Rack Units 1 U
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
LED Indicators Power, Signal
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables USB-A - USB-B cable
