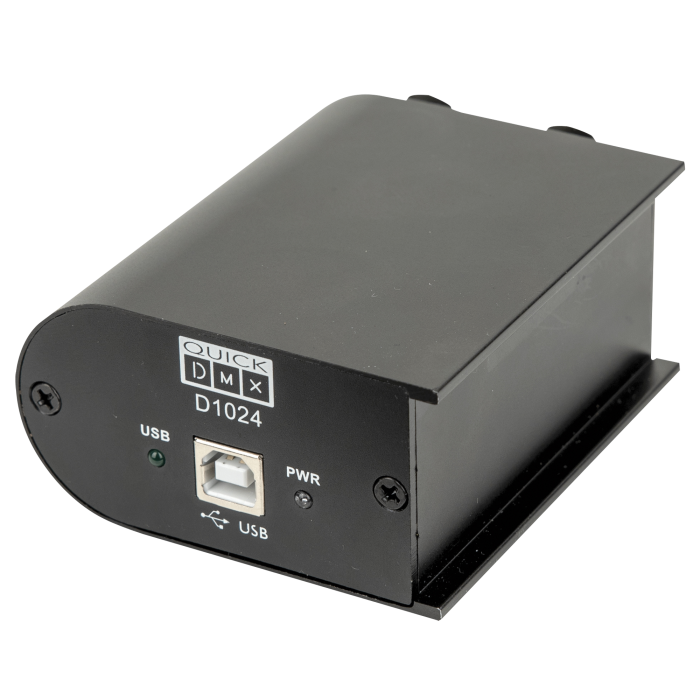

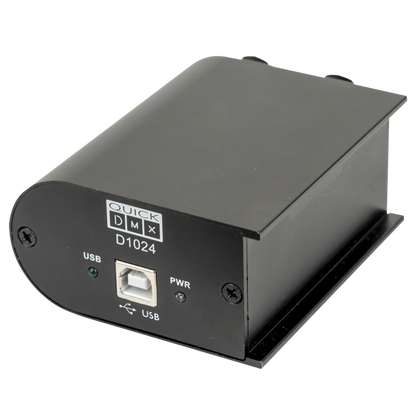

Showtec Quick DMX D1024 2x 512 Channels

Metal road proof casing
Power & Link indication LEDs at front panel
Unlimited nr. of different fixtures
Full 1024 DMX channels
MIDI triggerable by "learning" mode

With the "D1024" interface it is possible to use Quick DMX software without any restriction for all 1024 DMX channels. This interface can store one scene or chase for 1024 DMX channels that will be played if connection with computer is lost. Please note that Quick DMX D1024 only works with Quick DMX software.

Specifications:

Software Specifications
Supported Operating Systems Mac, Windows

Control and Programming
Control Mode Manual, MIDI, PC Software, Stand Alone
DMX Channels 1024
Art-Net Yes
Universes 2

Electrical Specifications and Connections
Power Supply 5 V DC
Power Consumption 5 W
Power Connector In USB

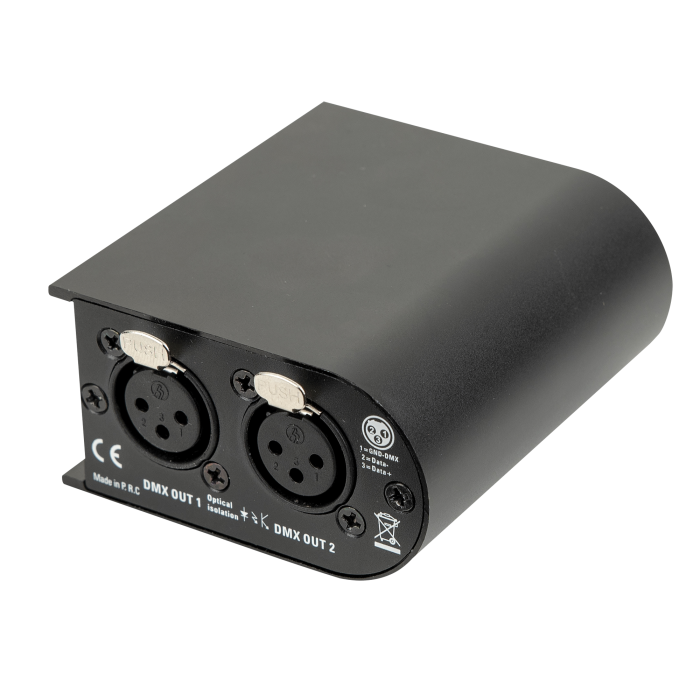

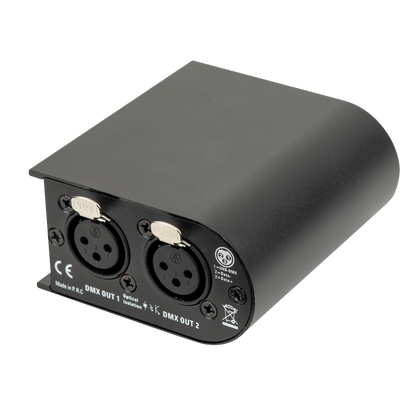

DMX Connector Out XLR 3P
Data Connector In USB

Mechanical Specifications
Length (mm) 84 mm (3.307?)
Width (mm) 75 mm (2.953?)
Height (mm) 40 mm (1.575?)
Weight 0.17 kg (0.375 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black

Product Properties
LED Indicators Power, Signal

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
