20 W Warm White COB LED ellipsoidal
Suitable for theatrical and studio applications
DMX dimmer function
Silent operation
Hard edge, precisely focused field of light

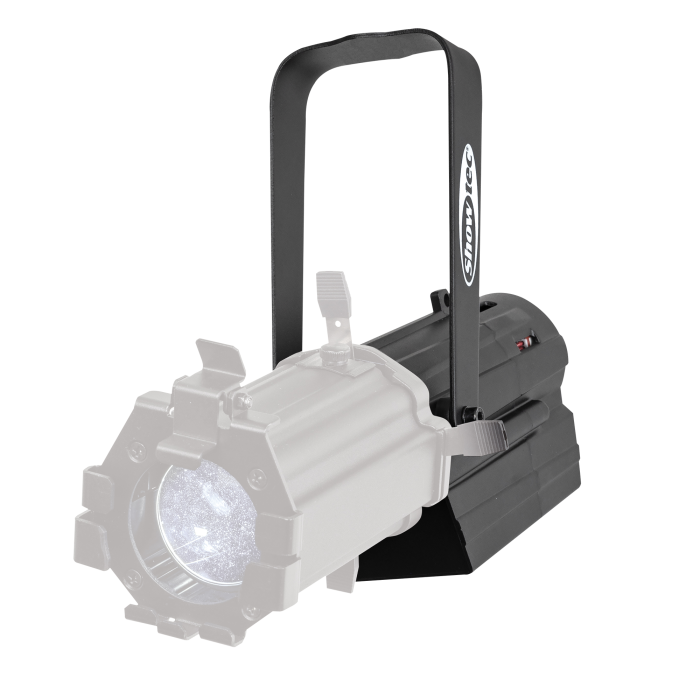

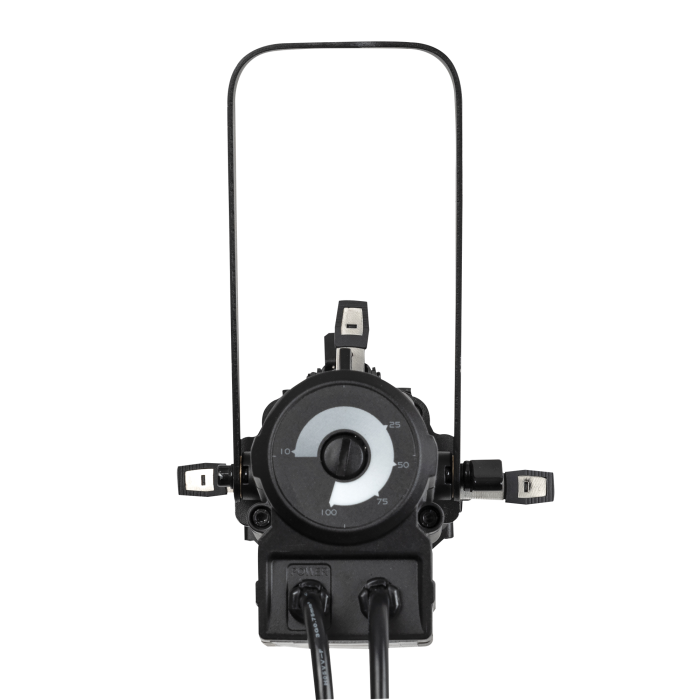

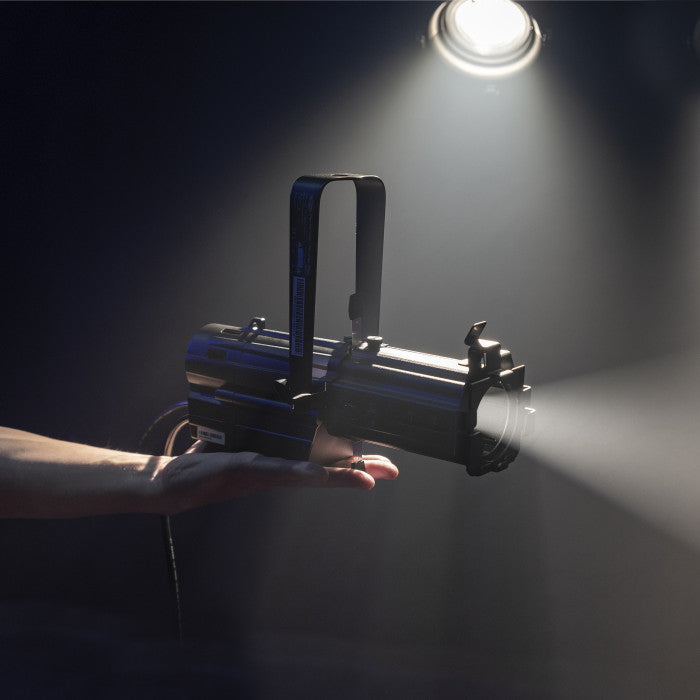

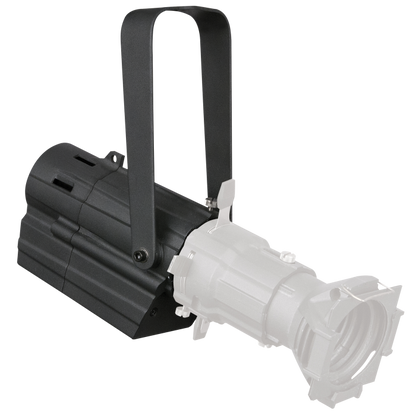

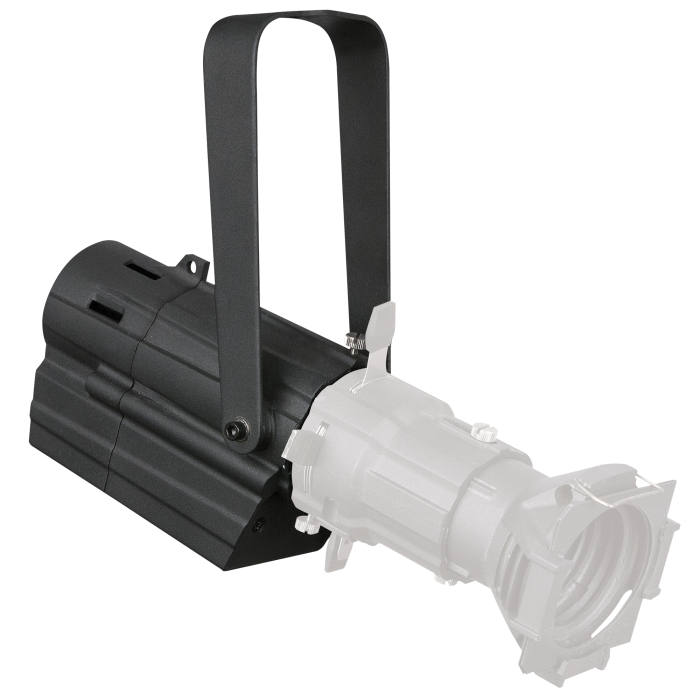

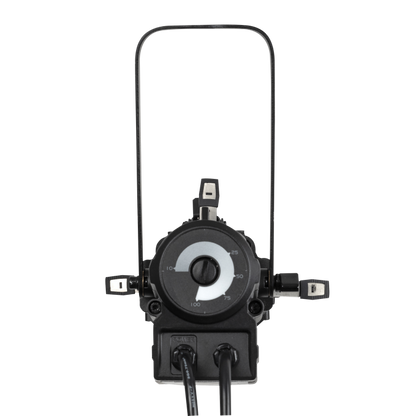

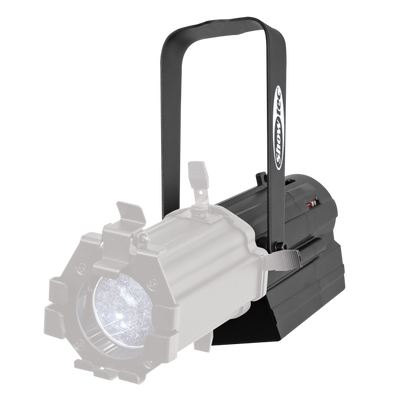

The Showtec Performer Profile Mini 3200 K is a 20 watt Warm White COB LED ellipsoidal with high CRI and silent operations, suitable for theatrical applications. It projects a hard-edge precisely focused light. The Performer Profile Mini 3200 K features a 0 - 100 % DMX dimmer function and has optional 19° - 36° fixed and zoom lenses and gobo holders for zooming, dimming and shaping the output to your desired projection.
Please note that a Shutter Barrel is needed for mounting the lens onto a Performer Profile Mini fixture.
Specifications:
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 20 W
LED Colour Type WW
Drive Current 0.5 A
Luminous Flux (Total) 1500 lm
Maximum CCT 3200 K
Control and Programming
Control Mode DMX
DMX Channels 1
Protocols DMX, RDM
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 22 W
Power Connector In Internal Powerlink with custom power connector
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 345 mm (13.583?)
Width (mm) 130 mm (5.118?)
Height (mm) 231 mm (9.095?)
Weight 1.3 kg (2.866 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 70 °C (158 °F)
Maximum Surface Temperature 50 °C (122 °F)
Minimum Operating Temperature -10 °C (14 °F)
Included Items
Included Cables Fixed Cable
