300 W Warm White LED Spot
Suitable for theatrical and studio applications
DDT-model compatible with a halogen infrastructure
High CRI for accurate 3200 K colour rendering
Wide motorised zoom range

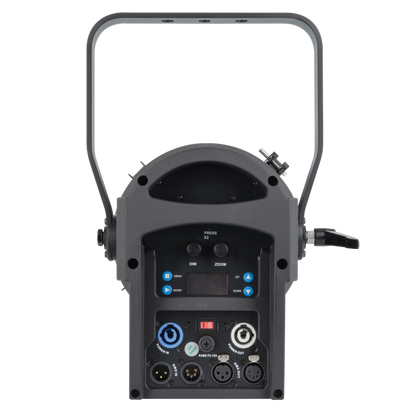

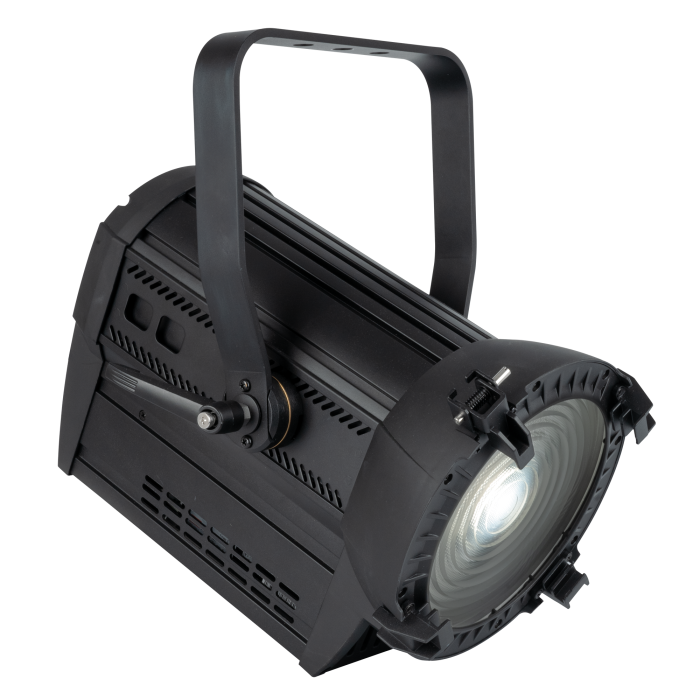

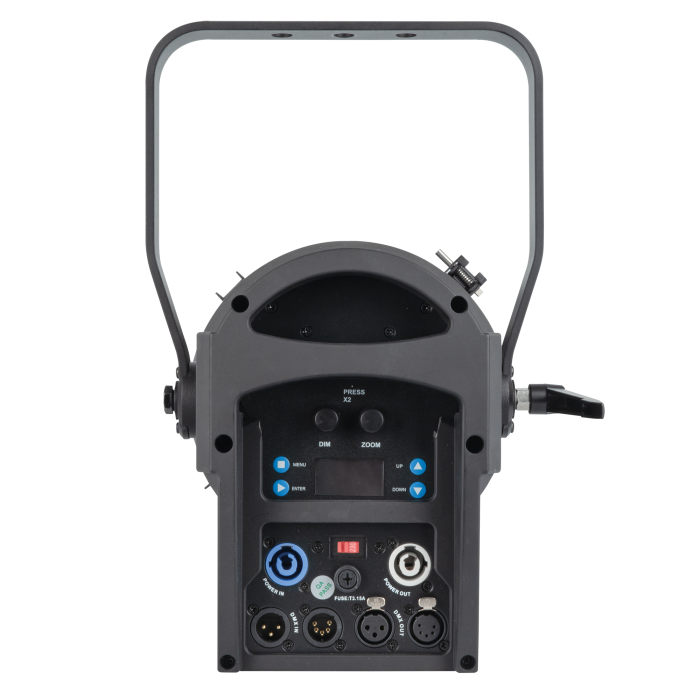

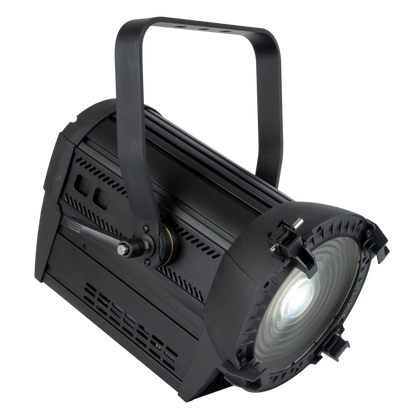

The Showtec Performer Fresnel 2200 DDT is a 300 watt Warm White LED Spot with high CRI (98) and silent operations, suitable for theatrical applications. It projects a bright, soft field of light within a 15° - 60° motorised zoom range. The Performer Fresnel 2200 DDT (Direct triac Dimming Technology) is compatible with a conventional dimming infrastructure. A barndoor is optional for shaping the output manually.
Specifications:
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 300 W
LED Colour Type WW
Light Source System COB
Life Expectancy 50000 h
Refresh Rate (Max.) 25 kHz
Illuminance @ 5 m 3890 lx
Luminous Flux (Total) 11000 lm
CRI 98
Maximum CCT 3200 K
Optical
Zoom Type Manual
Zoom Minimum 15 °
Zoom Maximum 60 °
Control and Programming
Control Mode DMX
DMX Channels 1, 2, 5
Protocols DMX, RDM
Display OLED
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 8 bit, 16 bit
Dynamic Effects
Dimmer 0-100 %
Strobe 0-25 Hz
Electrical Specifications and Connections
Power Supply 120-250 V AC 50/60 Hz
Power Consumption 220 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Mechanical Specifications
Length (mm) 417 mm (16.417?)
Width (mm) 286 mm (11.26?)
Height (mm) 260 mm (10.236?)
Weight 6.6 kg (14.55 lb)
IP Rating IP20 (indoor use only)
Material Aluminium
Housing Aluminium
Colour Black
Product Properties
Cooling Forced Convection
Rigging
Mounting Options Bracket
Safety Attachment Yes
Safety Eyes 1
Product Compliance
Energy efficiency class T/B/D
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Included Items
Included Cables Power Pro Cable
