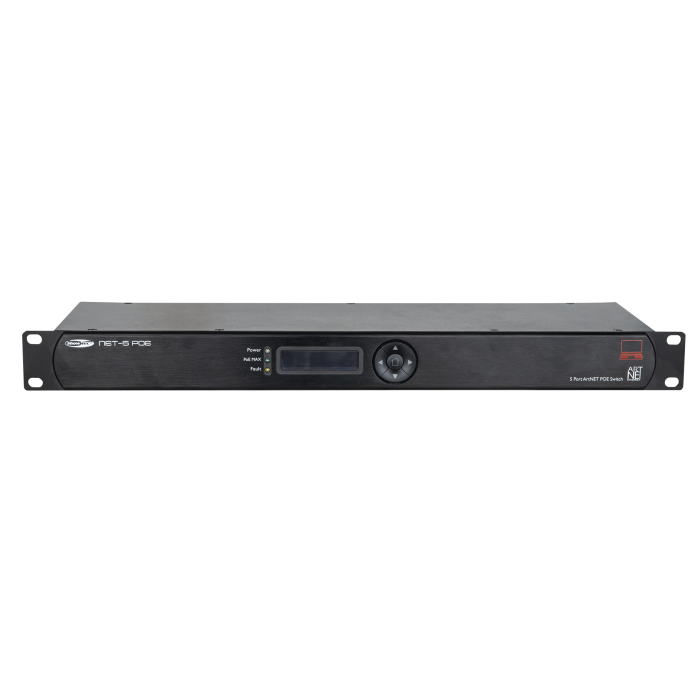

Showtec Net-5 PoE

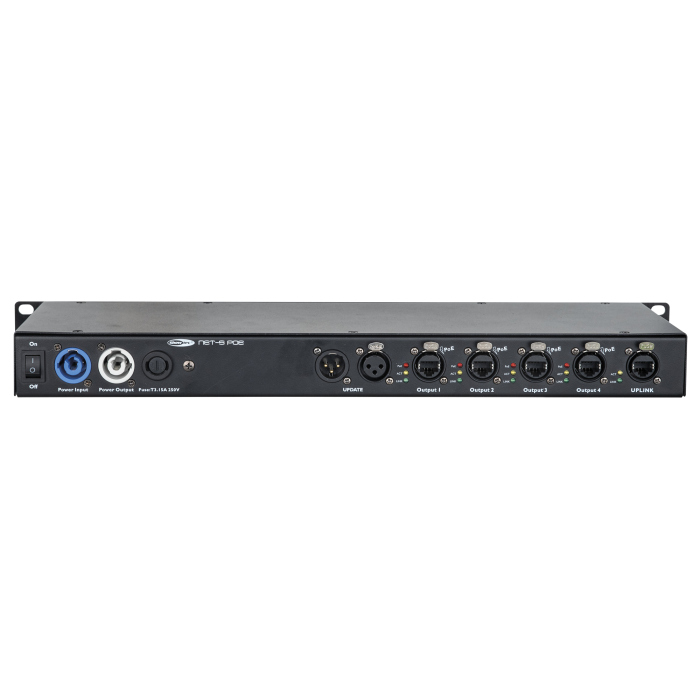

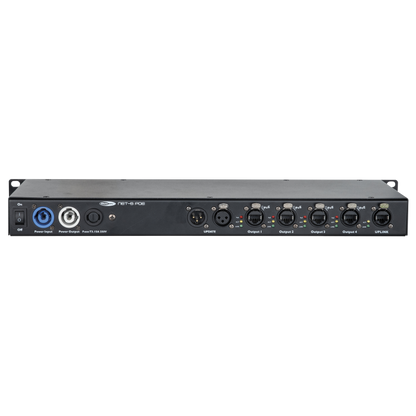

5x 1000BASE-T RJ45 ports
4x PoE (IEEE 802.3 At) + outputs
Completely silent, no fans
O-LED display for status check
Connect up to 4 x Net-2 Pocket to create 8 Universes Network

The Showtec NET-5 PoE is an power source equipment (PSE) that provides power over the ethernet cable. Also known as endspan or endpoint ethernet switch. Offering 5 x 1000BASE-T Ethernet connectors with 4x PoE. The NET-5 includes power over ethernet transmission for maximum 4 power devices (PD’s) with maximum power drain of 25 W according to IEEE802.3 Af and IEEE802.3 At.

Specifications:

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power over Ethernet (PoE) Yes
Power Consumption 100 W
Power Connector In Power Pro Blue
Data Connector In etherCON
Data Connector Out etherCON

Control and Programming
Control Mode TCP IPv4
Protocols TCP-IPv4
Display OLED

Mechanical Specifications
Length (mm) 483 mm (19.016?)
Width (mm) 137 mm (5.394?)
Height (mm) 46 mm (1.811?)
Installation Depth (Excl. Connector) 137 mm (5.394?)
Weight 1.2 kg (2.646 lb)
Rack Units 1 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black

Product Properties
LED Indicators Operation mode, Power, Signal

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)

Included Items
Included Cables Power Pro Cable
