Even and thin haze ensures no visible cloudy effect on stage
120 ml/min
Customizable output direction gives extra flexibility
Extreme silent operation due to CO? supply
Output and fan speed remote controllable by DMX and W-DMX

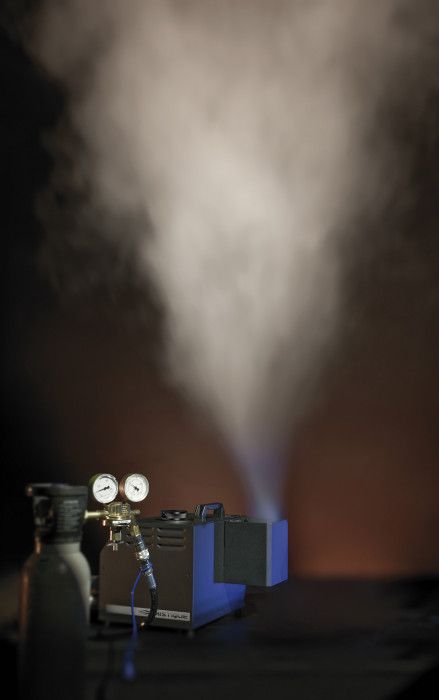

The best special FX are the ones which are almost invisible but in the meantime create the perfect mood for your event. Presenting the Showtec Mistique CO? Hazer. This hazer produces an extremely fine haze due to the combination of low pressurised CO? and a high quality oil-based Mistique dedicated Hazer-liquid. The corresponding smoke particles of the Mistique are so fine that they don’t cloud the stage, leave no residue on equipment or on stage, do not interfere with lighting plans and have a long-lasting effect. For TV-applications especially the Showtec Mistique CO? Hazer embodies the perfect solution to many challenges. It produces a haze without disturbing any filming going on. The units are extremely silent because there is no pump to generate any kind of noise. The pressure of the CO? is enough to create the desired effect on stage. Another advantage of the fine haze is its complete transparency. Only its effect is visible without adding any kind of unwanted colour to the stage. Showtec did call the hazer “Mistique” for a reason and seeing is believing.
Note: Do not fill the fluid tank more than 75 %. Be careful not to exceed the maximum fluid level, this can lead to pressure errors or damage the device.
Specifications:
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 1250 W
Power Connector In powerCON TRUE1
Power Connector Out powerCON TRUE1
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P
Cable Length 1.5 m
Warm-up Time 6 min
Mechanical Specifications
Output Capacity 140 m³/min (4944.1 ft³/min)
Output Direction Up
Housing Metal
Colour Black
Fluid Consumption 120 ml/min (4.058 oz/min)
Fluid Tank Capacity 2.5 L
Gas Consumption/hour 0.36 kg/h (0.794 lb/h)
Gas Pressure Minimum 3.4 bar
Gas Pressure Maximum 4.1 bar
Length (mm) 503 mm (19.803?)
Height (mm) 310 mm (12.205?)
Width (mm) 334 mm (13.15?)
Weight 17 kg (37.479 lb)
IP Rating IP20 (indoor use only)
Control and Programming
Control Mode DMX, Manual, Timer
DMX Channels 1, 3, 5
Wireless Wireless DMX
Display Touch
Product Properties
Gas Connection Quick-Lock
Gas Type CO?, N?
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Minimum Ambient Temperature 5 °C (41 °F)
Included Items
Included Cables powerCON TRUE1 cable
