High Output LED Sphere
RGBW LED Source
DMX Control
OLED Display
The Illumisphere series are stylish LED shapes suitable for event decorations, trade shows, corporate events and so on. They are the right tool to create a magical and cozy atmosphere to your event.
The Illumispheres are equipped with bright RGBW LEDs ensuring powerful and rich colours. Setup is done easy by the OLED screen. For safe mounting an hanging eye is equipped.
Specifications:
Source
Light Source Type LED
Light Source Quantity 192
Light Source Power 25 W
LED Colour Type RGBW
Refresh Rate 1000 Hz
Control and Programming
Control Mode Auto, DMX, Master Slave, Sound
DMX Channels 1, 4, 6, 8
Protocols DMX

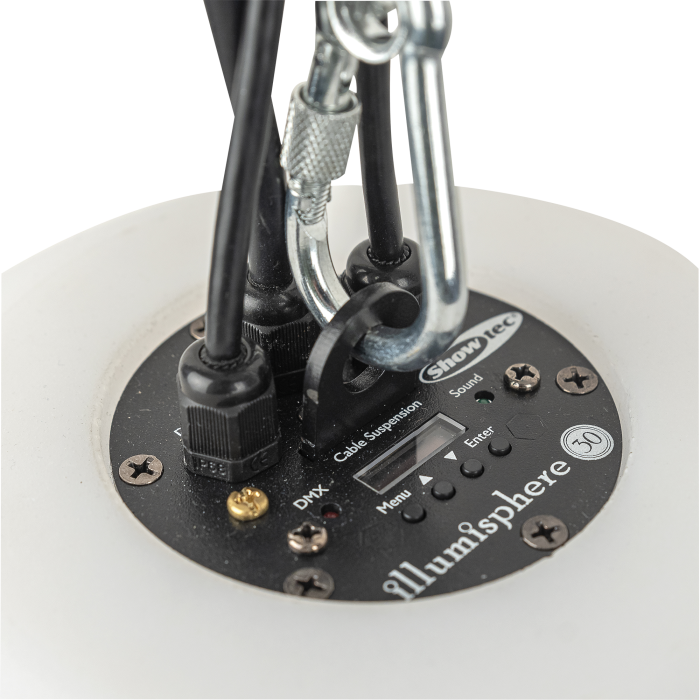

Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 40 W
Power Connector In Schuko Plug
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Cable Length 0.80 m
Mechanical Specifications
Height (mm) 300 mm (11.811?)
Width (mm) 300 mm (11.811?)
Depth (mm) 300 mm (11.811?)
Weight 2.5 kg (5.512 lb)
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Black, White
Product Properties
Cooling Convection
Rigging
Mounting Options Eye bolt
Safety Attachment No
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables Fixed Cable
