Plug & play backdrop drop system
20 kg load capacity
powerCON input & output
Roadproof housing
The Showtec FX Drop is a plug-and-play textile drop tool. It is very easy to use, once the FX drop is powered it will release the hook. The load capacity is 20 kg and designed with a road proof housing. The powerCON in-and output make it easy to daisychain multiple FX drops. Create a stunning opening with the Showtec FX Drop.
Specifications:
Electrical Specifications and Connections:
Power Supply 240 V AC 50/60 Hz
Power Consumption 30 W

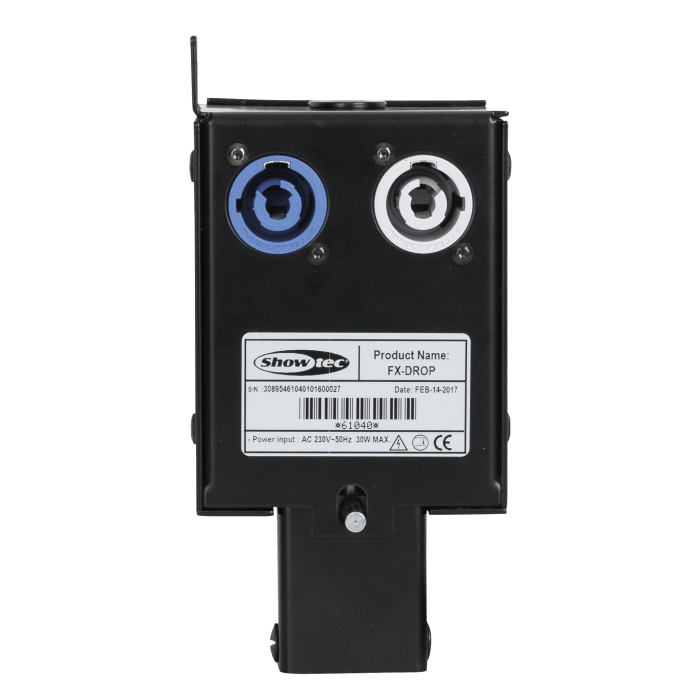

Power Connector In powerCON Blue
Mechanical Specifications:
Maximum Load 20 kg (44.092 lb)
Length (mm) 77 mm (3.032″)
Height (mm) 140 mm (5.512″)
Width (mm) 70 mm (2.756″)
Weight 1 kg (2.205 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Rigging:

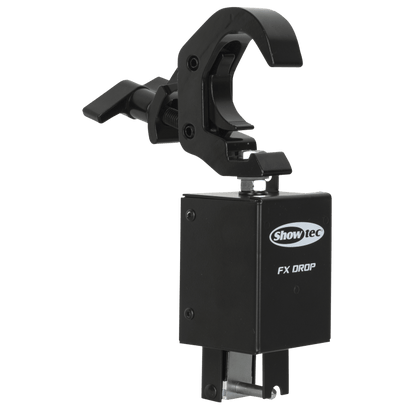

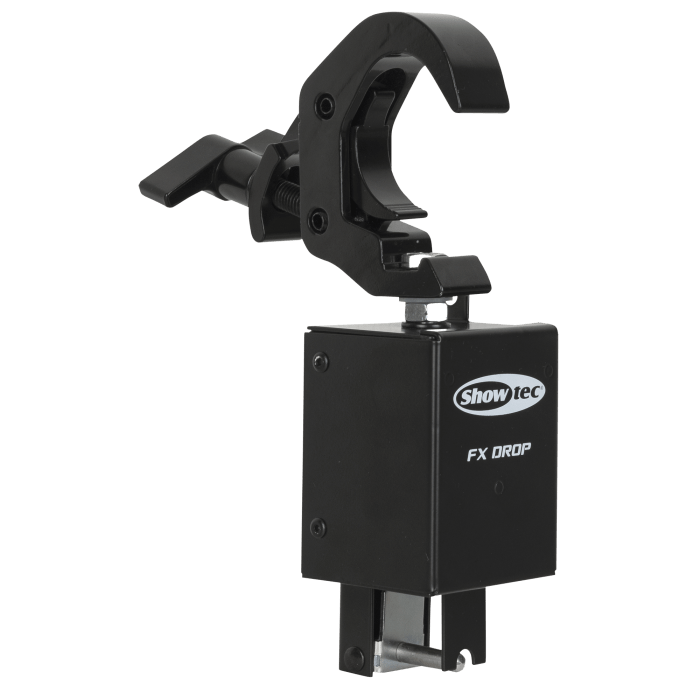

Mounting Options Clamp, Quick-Lock
Safety Attachment Yes
Included Items:
Included Rigging Rigging Eye
