4x 12 W RGBW colour mixing
Long battery life (up to 15 hours RGBW)
IP54 For outdoor use
Wireless DMX
Capacity saving 'Working time' feature

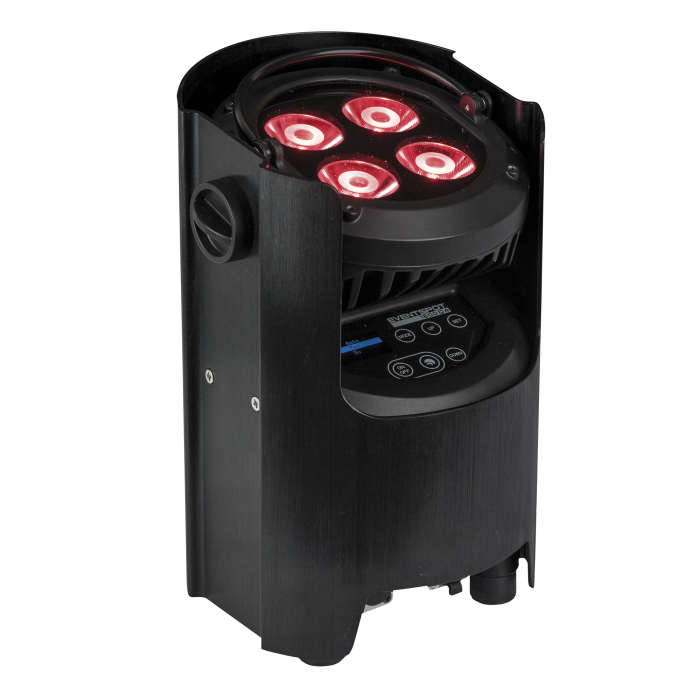

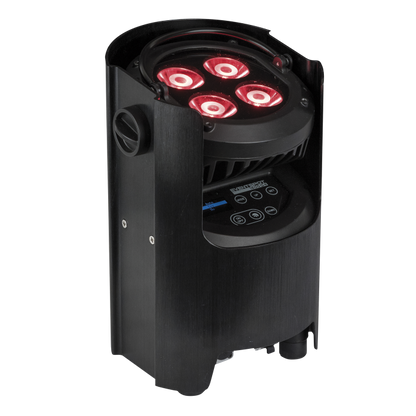

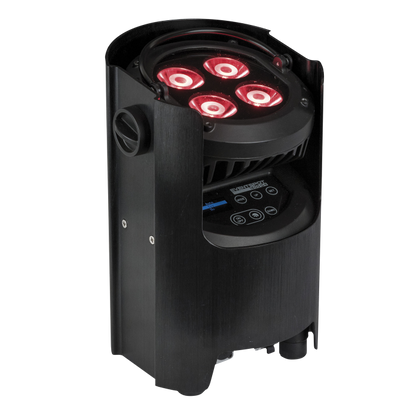

The Eventspot 1600 Q4 is an extremely compact and rugged event lighting fixture with lithium ion battery and wireless DMX. It is equipped with 4x 12 W RGBW combined with dedicated high class optics ensuring a bright and well-defined 10° beam. Separate chargers or charger cases are available as options to fit your desired solution. The battery has a lifetime of up to 15 hours at RGBW. The projection angle of the fixture can be adjusted and optional beamshapers are available to create desired beam angles. With the IP54 rating this LED battery light is the right choice for professional rental use. A very useful feature is the "Working time". With this feature you can specify the actual working timeframe of the unit from 1 to 15 hours max. The Eventspot will then automatically divide the current capacity of the battery to make sure that the unit will work the length of the specified time. This feature comes in very handy when there is no opportunity to charge the battery but operating it is still required.
Specifications:
Source
Light Source Type LED
Light Source Quantity 4
Light Source Power 12 W
LED Colour Type RGBW
Refresh Rate 12000 Hz
Illuminance @ 2 m 15000 lx
Luminous Flux (Total) 1580 lm
CRI 75
Optical
Beam Angle (Circular) 10 °
Wireless Specifications
Wireless Mode G3, G4
Reaction Time 8 ms
Battery
Battery Type Built-in
Battery Voltage 18.5 V
Capacity 13 Ah
Runtime @Full 15 h
Runtime Average 24 h
Charging Time 6 h
Control and Programming
Control Mode DMX, Manual, Master Slave, Stand Alone
DMX Channels 4, 6, 10
Protocols DMX
Wireless Wireless DMX
Display OLED, Touch
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections
Power Supply 18 V DC
Power Consumption 75 W
Power Connector In Internal Powerlink with custom power connector

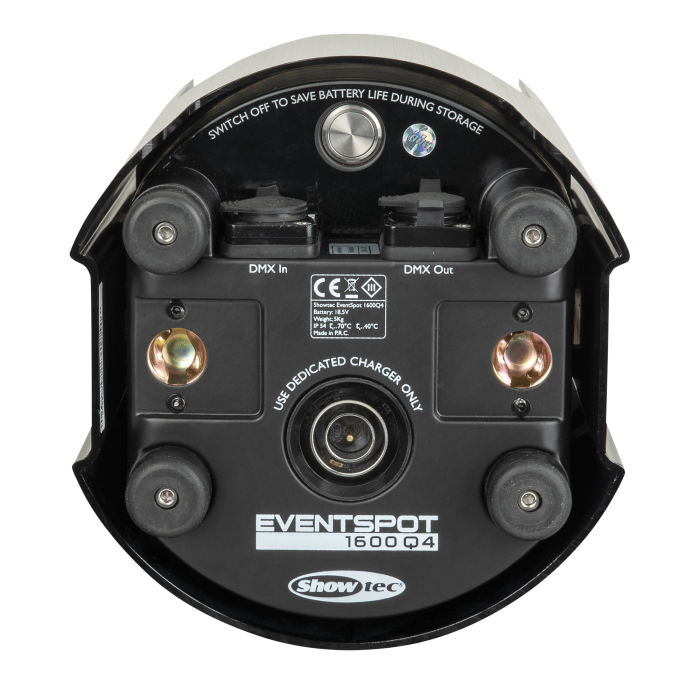

DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 195 mm (7.677?)
Width (mm) 180 mm (7.087?)
Height (mm) 280 mm (11.024?)
Weight 5 kg (11.023 lb)
IP Rating IP54
Housing Aluminium
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 80 °C (176 °F)
Minimum Operating Temperature -10 °C (14 °F)
Included Items
Included Rigging Quick-Lock Bracket
