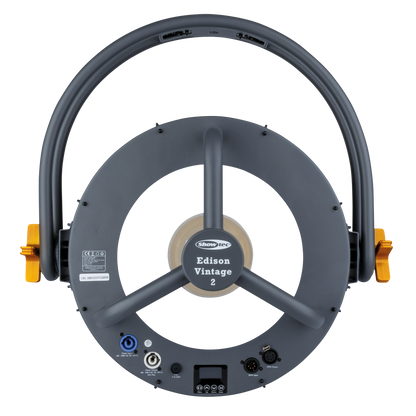

Showtec Edison Vintage 2
Showtec Edison Vintage 2
SKU:43331
Couldn't load pickup availability
DMX LED dimmer with E27 socket
Manual and DMX control
Quick-lock mounting bracket included
OLED display for easy control

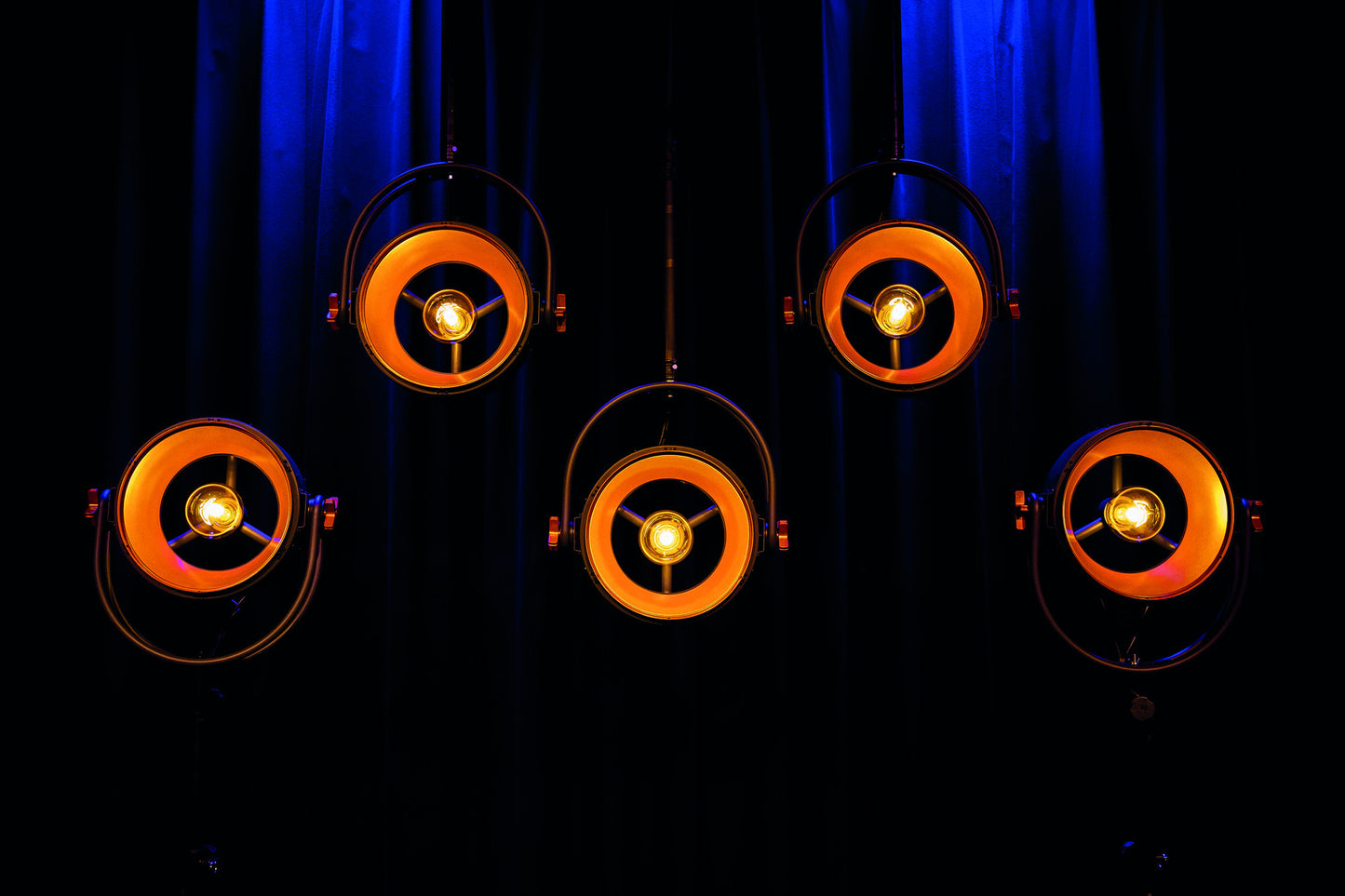

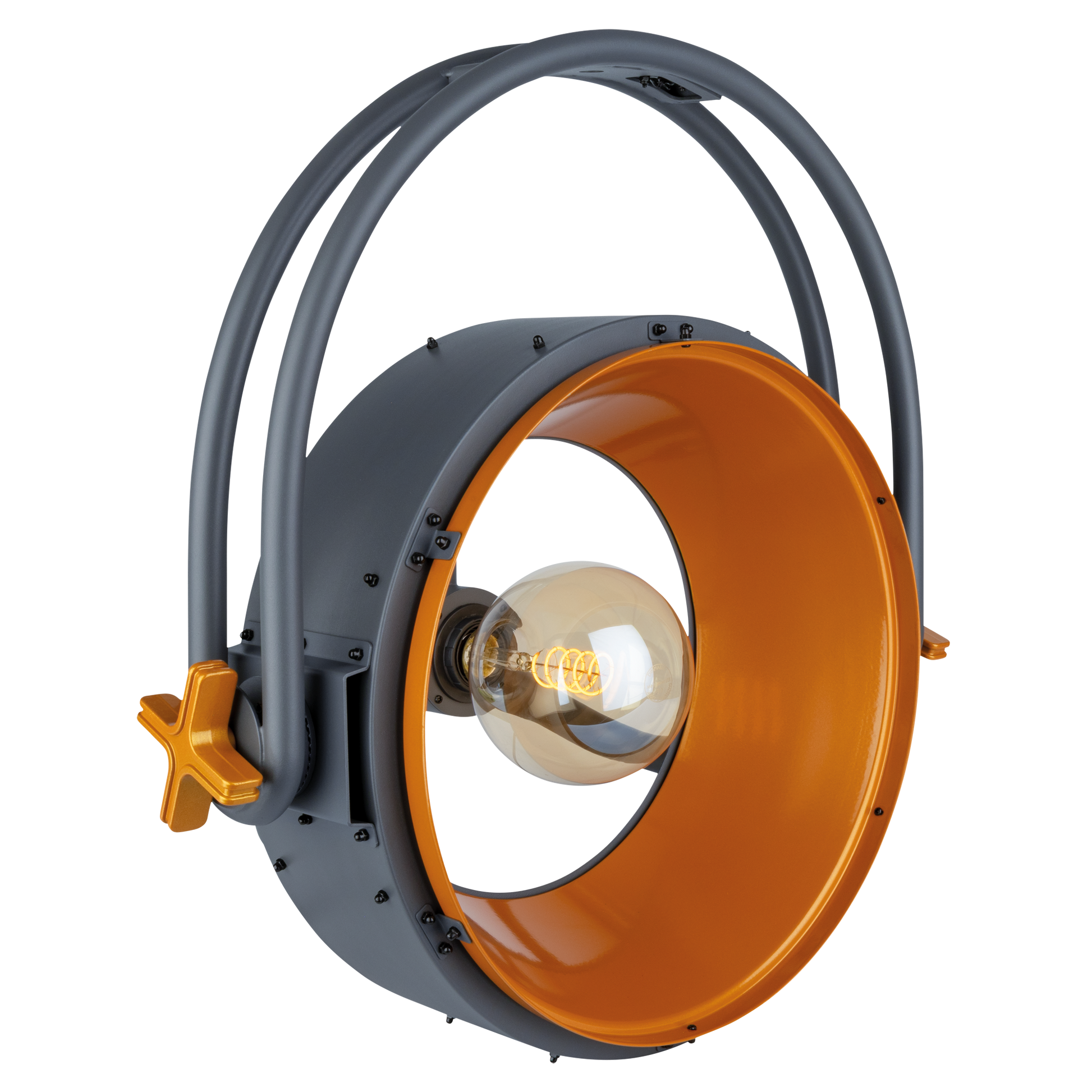

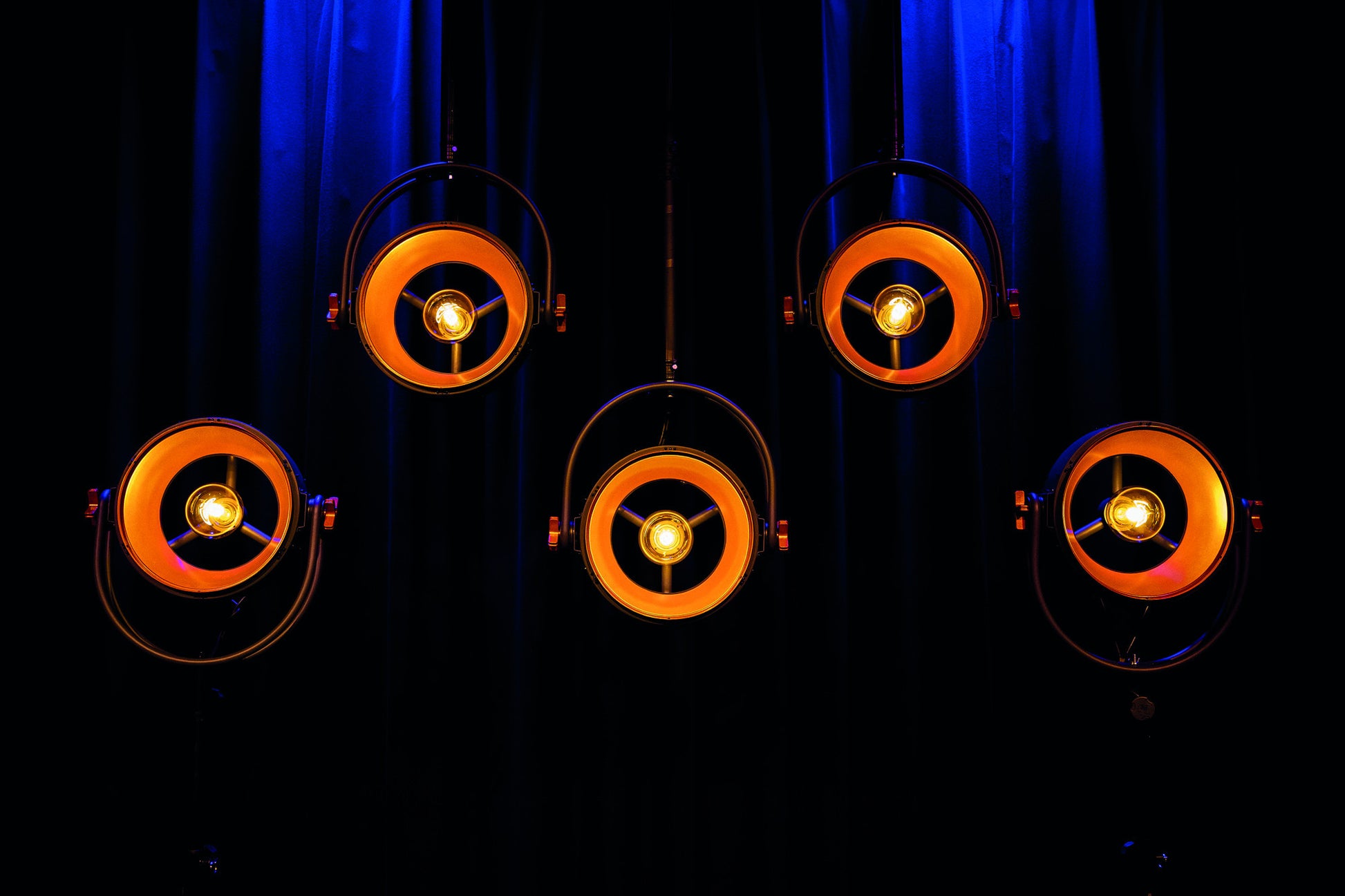

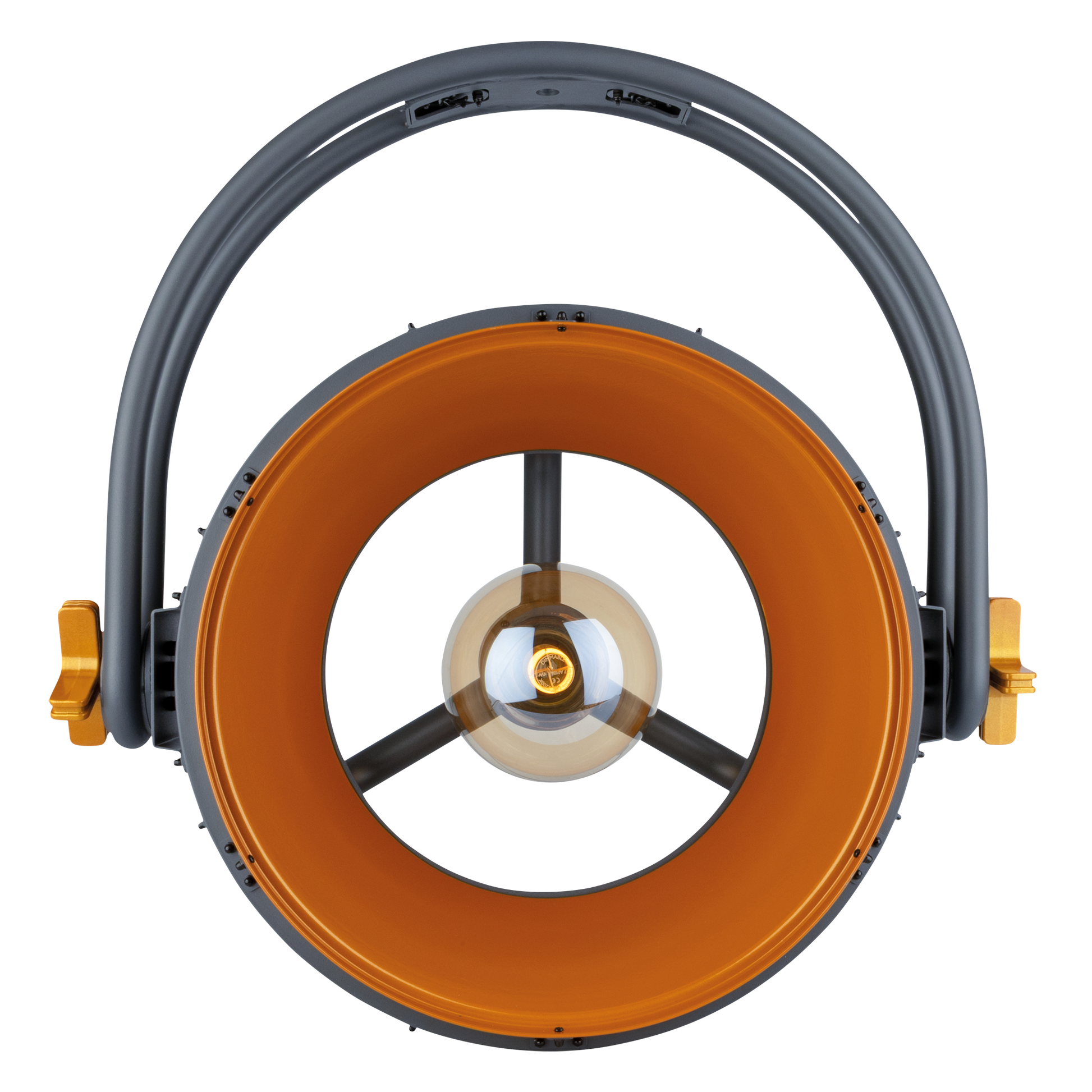

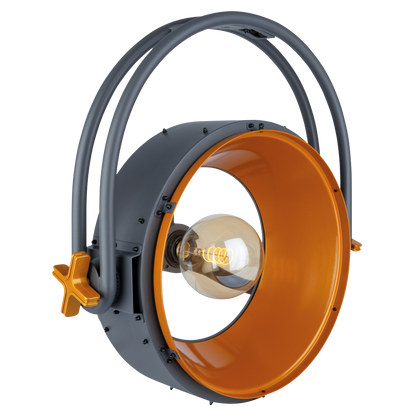

The Showtec Edison Vintage 2 is a large-format vintage-style luminaire. Combining a new design with the same trusted functionality as the Edison Vintage 1, it brings the charm of vintage lighting into the modern era. With an E27 socket, it delivers a cosy glow and elegant retro-inspired look, making it a perfect addition to stages, studios, themed venues and decorative installations. The built-in dimmer supports both DMX control and manual operation, with smooth, non-linear voltage-based dimming for authentic incandescent-style fades. An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.
LED bulb not included.
Specifications:
Source
Light Socket E27
Number of Sockets 1
Control and Programming
Control Mode DMX, Manual
DMX Channels 1, 2
Protocols DMX, RDM
Display OLED
Display Size 1.3 "
Dim Curve Linear, Square, I-Square, S-Curve
Dimmer Resolution 16 bit
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 6.7 W
Max. power consumption 20 W
Fuse 1 A

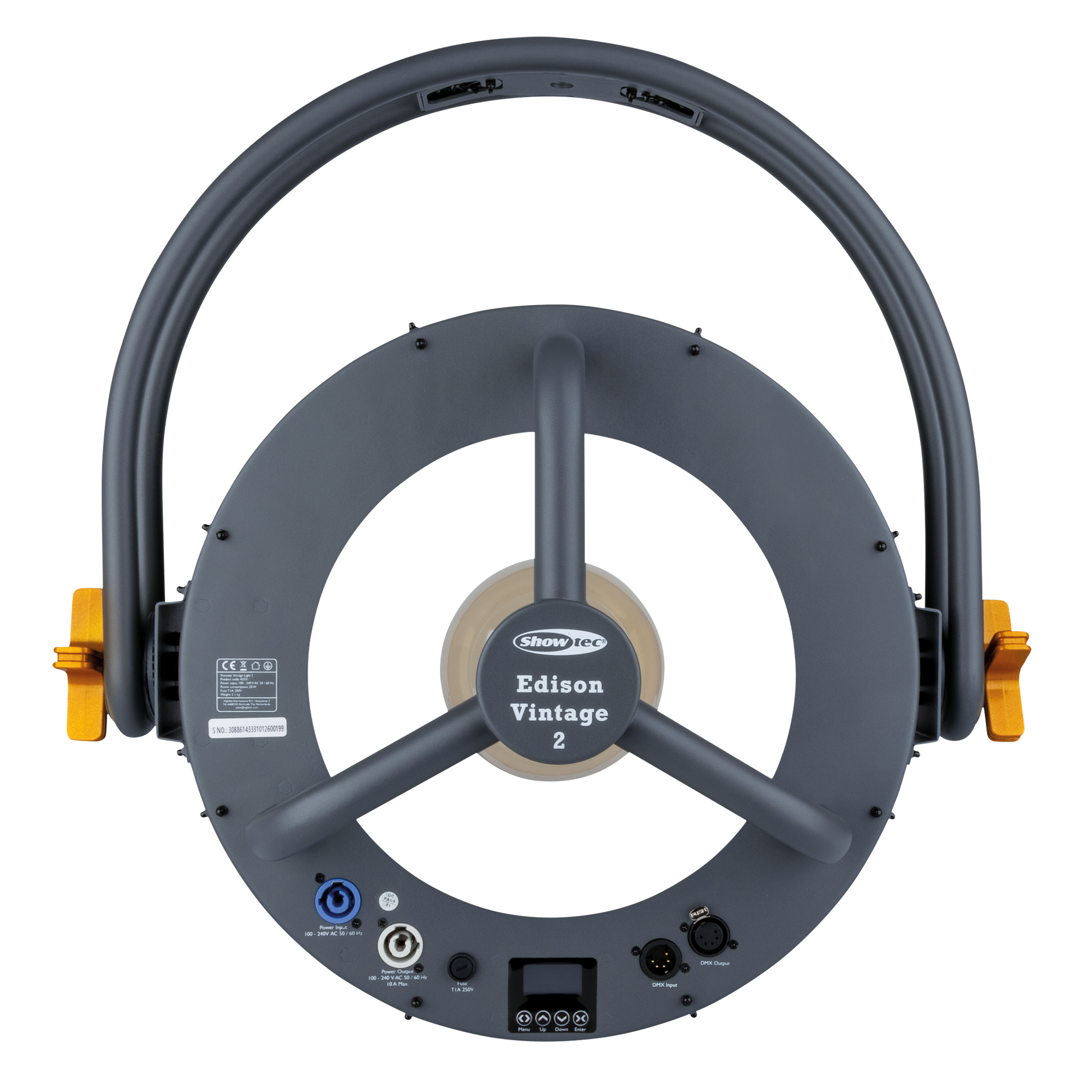

Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 5P In/Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Cable Length 1.5 m
Mechanical Specifications
Height (mm) 541 mm (21.299″)
Width (mm) 526 mm (20.709″)
Depth (mm) 239 mm (9.409″)
Weight 5.3 kg (11.684 lb)
IP Rating IP20 (indoor use only)
Material Aluminium, Metal
Housing Aluminium, Metal
Colour Pale Gold, Grey
Product Properties
Cooling Convection
Rigging

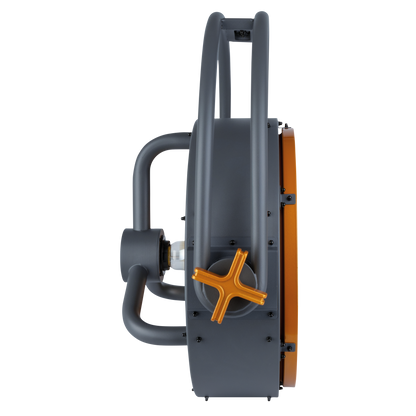

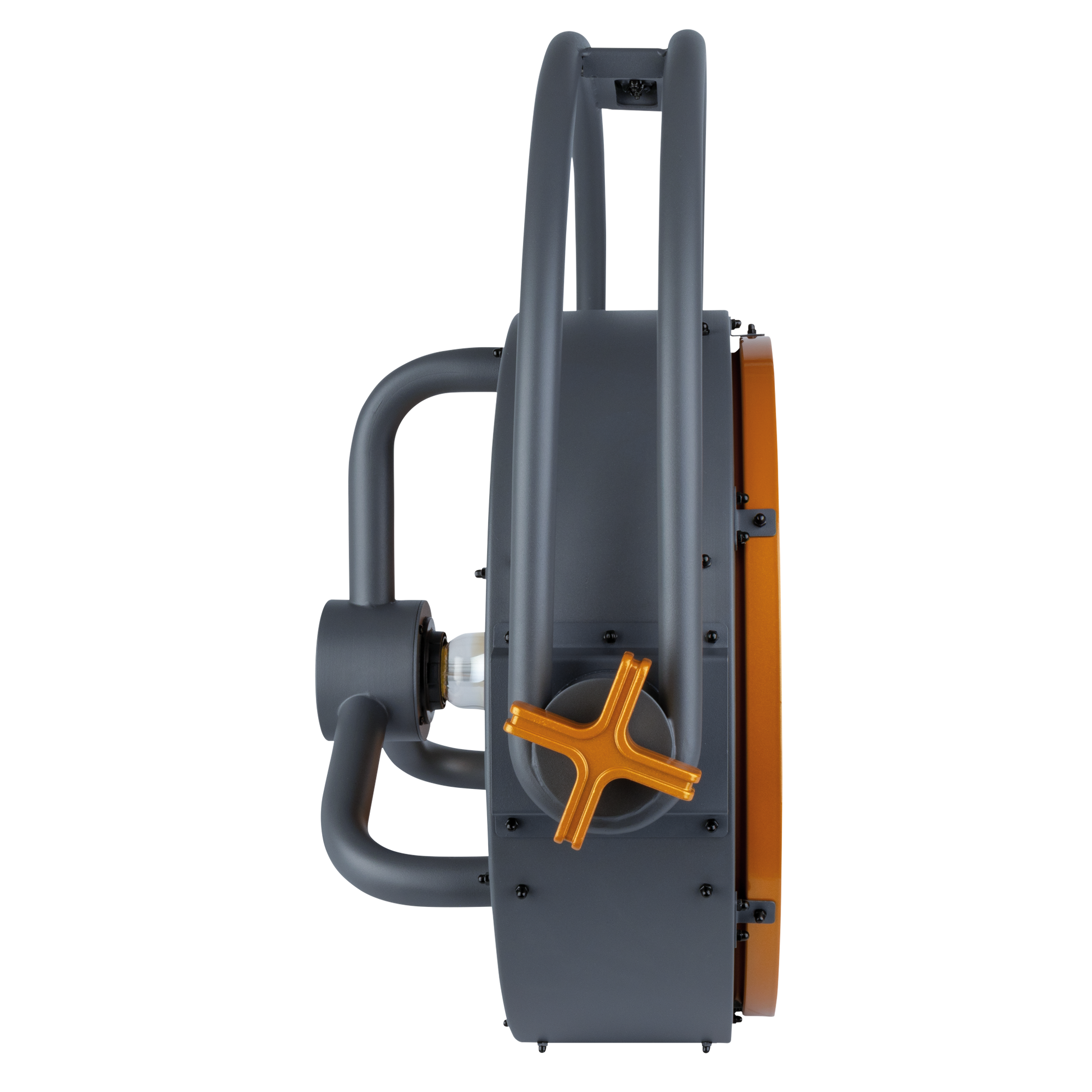

Mounting Options Clamp, Quick-Lock
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Included Items
Included Cables Power Pro Cable
Included Rigging Quick-Lock Bracket
