140 W LED source
Barrel and moonflower mirrors with infinite rotation
Colour wheel (9 colours + open) with split colour function

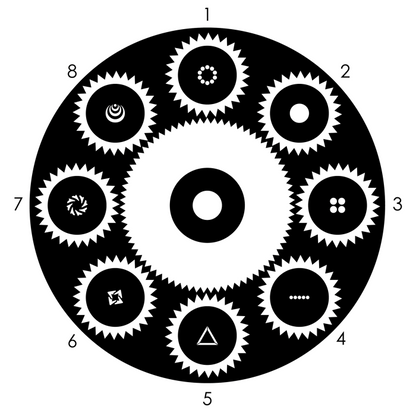

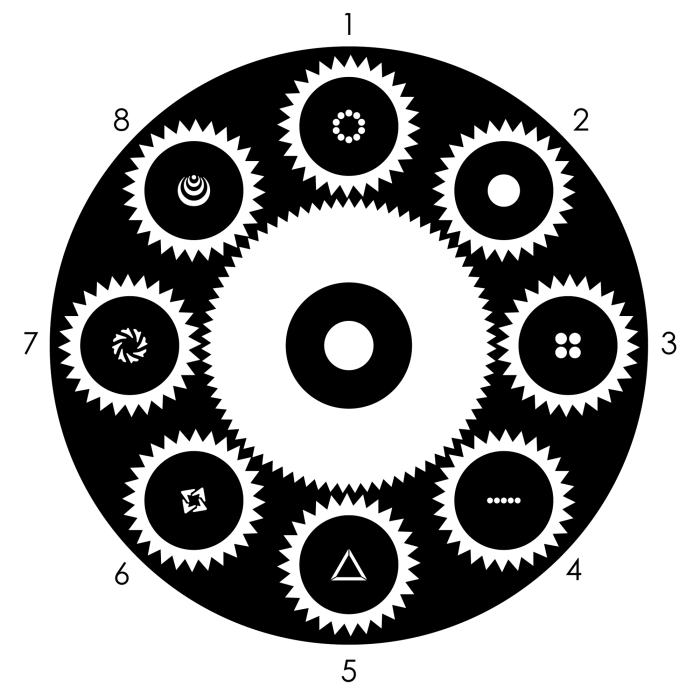

Gobo wheel (7 gobos + open) with rotating gobos
DMX/RDM, auto programs, and sound-to-light mode

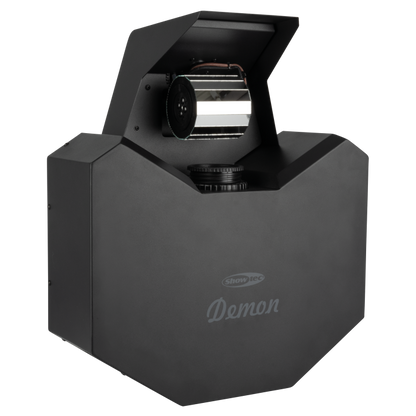

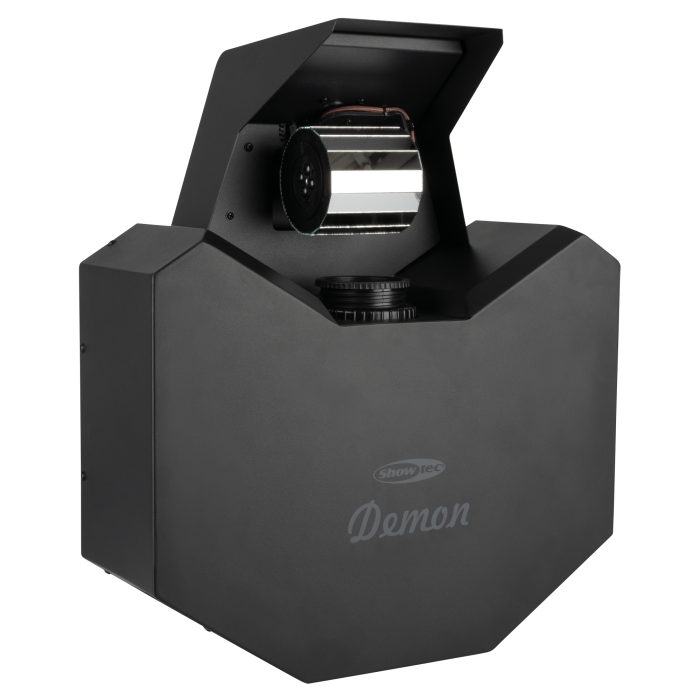

The Showtec Demon is a dynamic barrel scan effect designed to deliver vibrant, high-energy visuals for clubs, stages, and events. It features an internal rotating moonflower mirro r, a colour wheel, and a gobo wheel for endless creative possibilities. Powered by a 140 W LED source, the Demon produces bright, colourful beams with sharp projections.
Control options include DMX/RDM, auto programs, and sound-to-light mode, with selectable 3-, 9-, or 12-channel DMX modes for flexible programming. The colour wheel offers 9 fixed colours + open, while the software enables split colour effects for up to 16 colour combinations. The gobo wheel includes 7 gobos + open, with rotating gobo functionality for dynamic patterns. The barrel mirror and moonflower mirror both feature infinite rotation, creating continuous movement and immersive effects. With 180° pan, internal programs, and sound-reactive operation, the Demon is perfect for energising any show. Installation is easy thanks to the included quick-lock bracket, which supports truss mounting. The fixture can also be wall-mounted using its standard bracket.
Specifications:
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 140 W
LED Colour Type White
Refresh Rate 1000 Hz
Luminous Flux (Total) 5200 lm
CRI 70
Optical
Beam Angle (Circular) 22.6 °
Focus Manual
Control and Programming
Control Mode Built-in Program, DMX, Manual, Master Slave, RDM, Sound
DMX Channels 3, 9, 12
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 9 + Open
Gobo System Metal
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1 7 + Open
Movement
Pan 180 °
Tilt 360 °
Continuous Movement Barrel, Mirror Disc Bi-directional
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 175 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
Mechanical Specifications
Length (mm) 451 mm (17.756″)
Width (mm) 381 mm (15″)
Height (mm) 205 mm (8.071″)
Weight 7.6 kg (16.755 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Cooling Active
Rigging
Mounting Options Clamp, Quick-Lock, Wall
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Included Items
Included Cables Power Pro Cable
Included Rigging 1x Quick-Lock Bracket
