Showtec DB-1-4 DMX Splitter

DMX splitter for 4 outputs
Electrical isolation between in and output
DMX Indication LEDs on in-& outputs
3 & 5P XLR in- & outputs

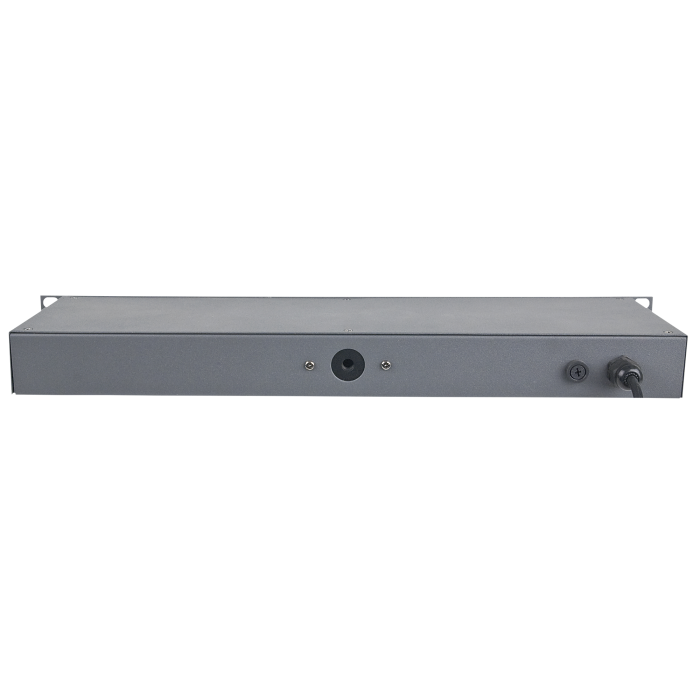

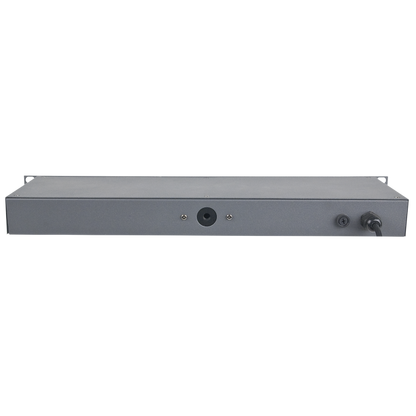

M10 nut at backside for truss clamp

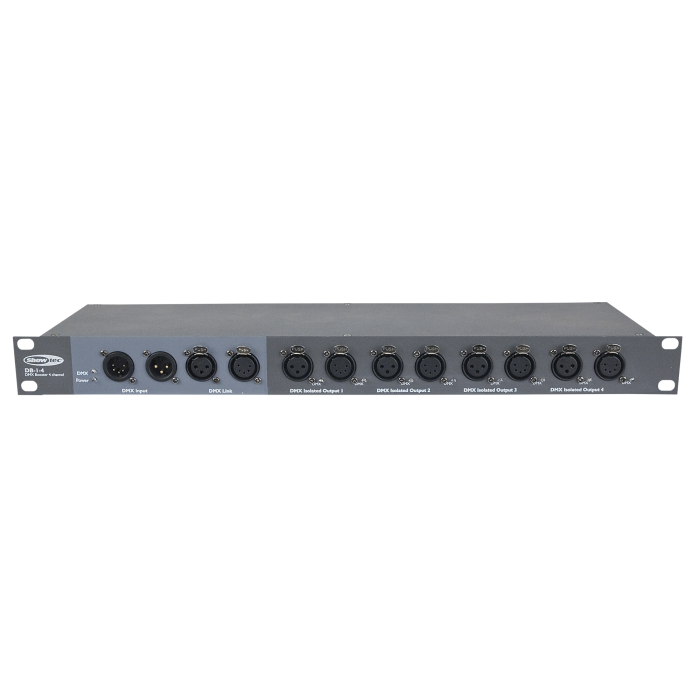

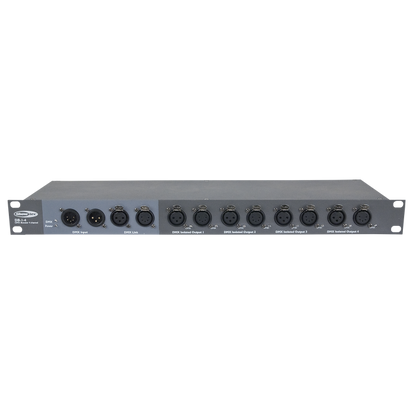

The DB-1-4 is a Universal DMX512 Optical Splitter. It splits the incoming DMX signal, in chain configurations, into four separate outputs with an additional "thru" port. For easy connection, the DB-1-4 has 3-pin and 5-pin XLR connectors. The unit can be installed in any 19" rack or with the M10 slot on the rear panel in the carrier. The lighting controller has clear LEDs to indicate the DMX signal status of each output and input.

Specifications:

Control and Programming
Control Mode DMX Universes 1

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 5 W
Power Connector In Schuko Plug
DMX Connector XLR 3P In/Out, XLR 5P In/Out
DMX Connector In XLR 3P, XLR 5P
DMX Connector Out XLR 3P, XLR 5P

Mechanical Specifications
Length (mm) 483 mm (19.016?)
Width (mm) 134 mm (5.276?)
Height (mm) 46 mm (1.811?)
Installation Depth (Excl. Connector) 134 mm (5.276?)
Weight 2.5 kg (5.512 lb)
Rack Units 1 U
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour Gray

Product Properties
LED Indicators Power, Signal

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
