Showtec Data Flash

8 sections
Power Pro connections
SMD LEDs
Built-in programs

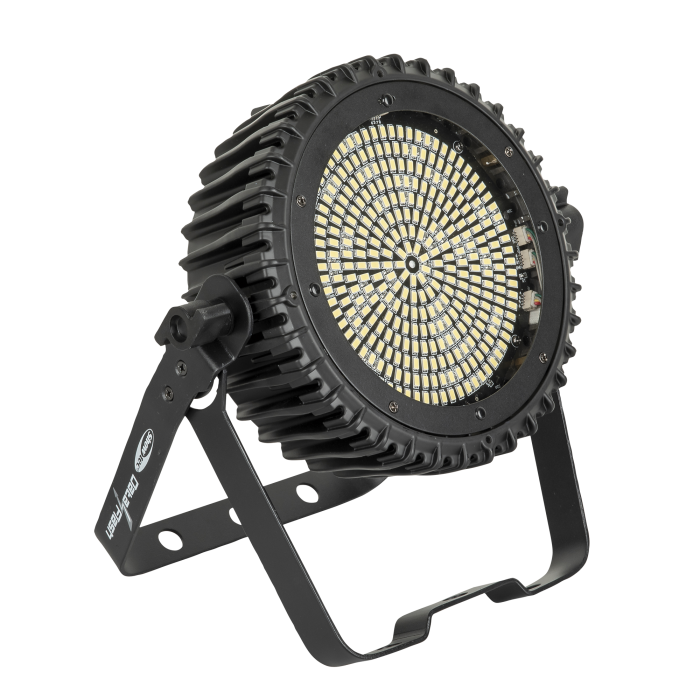

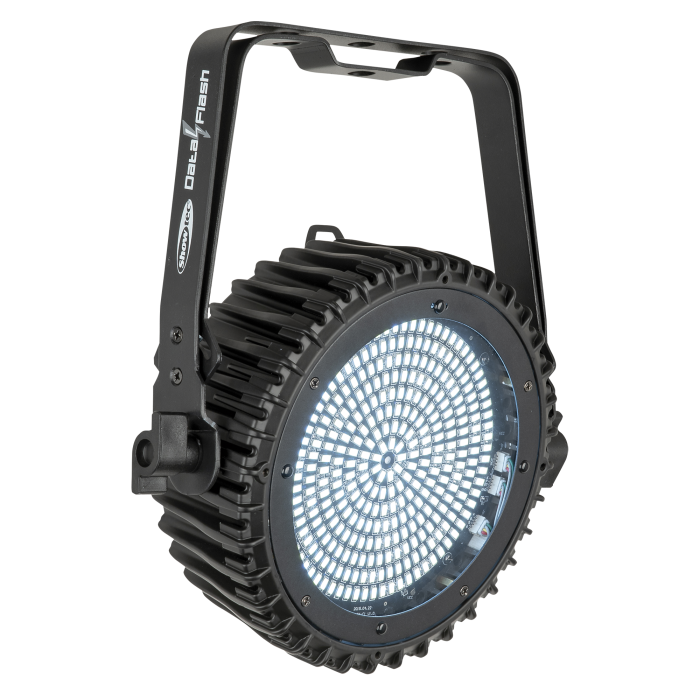

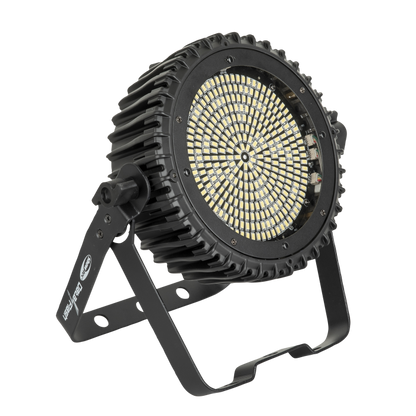

The Showtec Data Flash is a compact LED strobe with an intense strobe effect. It has 8 sections to create dynamic strobe effects. It has a rugged housing with a double bracket and Power Pro blue and white connections, which makes it rental-ready.

Specifications:

Source
Light Source Type LED
Light Source Power 25 W
LED Colour Type White
Luminous Flux (Total) 3530 lm

Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channels 2, 3, 12
Protocols DMX
Display LCD

Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz

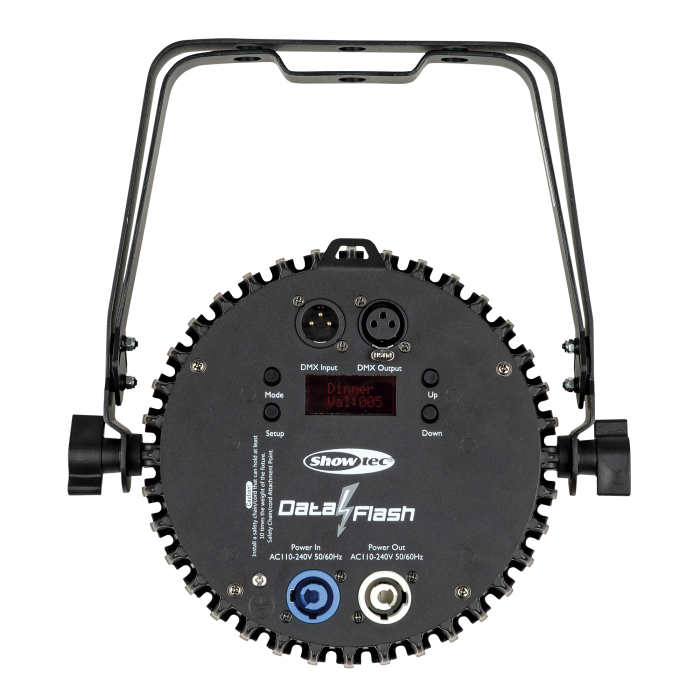

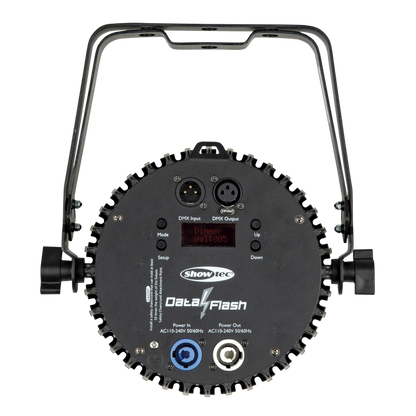

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 138 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector In XLR 3P
DMX Connector Out XLR 3P

Mechanical Specifications
Height (mm) 293 mm (11.535?)
Width (mm) 263 mm (10.354?)
Depth (mm) 83 mm (3.268?)
Weight 2.6 kg (5.732 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black

Product Properties
Cooling Convection

Rigging
Mounting Options Bracket, Clamp
Safety Attachment Yes

Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -10 °C (14 °F)

Included Items
Included Cables Power Pro Cable
Included Rigging Bracket
