Controls up to 8 individual strips of the OctoStrip FLEX
DMX, Art-Net and stand-alone modes
IP65-rated enclosure

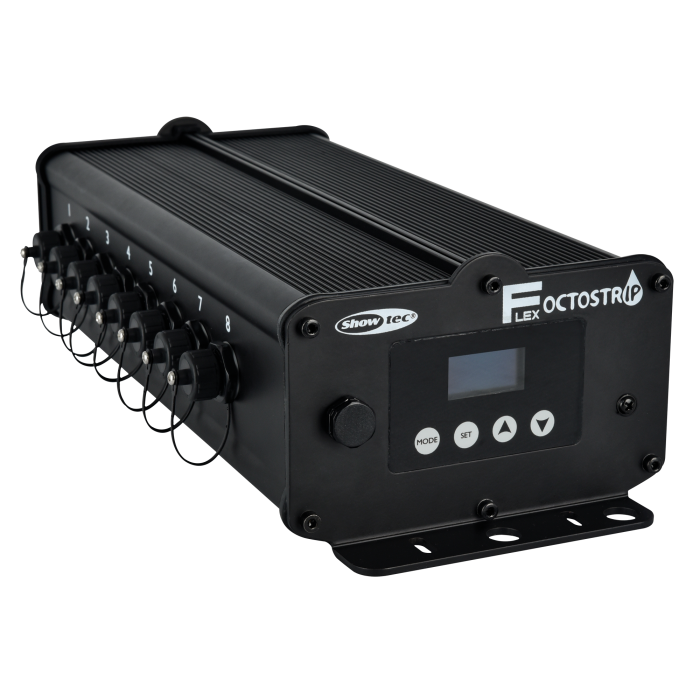

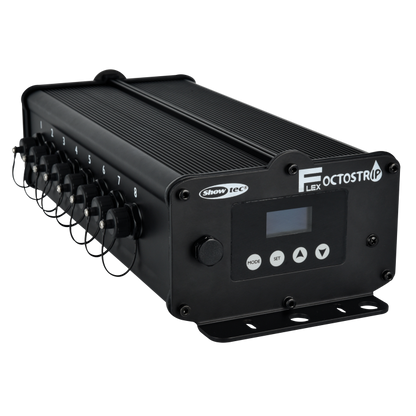

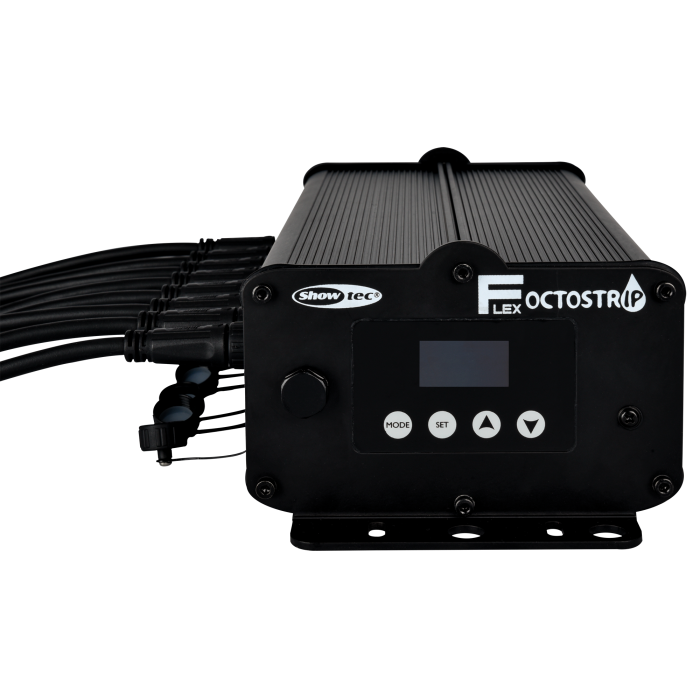

The Showtec Controller for Octostrip FLEX is a dedicated IP65-rated controller that can control up to 8 units of the Showtec Single Strip for Octostrip FLEX. It can control the 1 m and 0.5 m versions (mixing both lengths is not possible). The controller supports Art-Net and DMX, but also has stand-alone modes with built-in colour presets and colour sequences. It uses 5-pin XLR DMX connections and Power Pro True power connections. It has a robust aluminium housing with multiple mounting options.
Octostrip FLEX strips and dedicated cables to connect the controller to the strips are available separately.
Specifications:
Control and Programming
Control Mode Auto, DMX
Protocols Art-Net, DMX
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 238 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
Mechanical Specifications
Height (mm) 103 mm (4.055?)
Width (mm) 171 mm (6.732?)
Depth (mm) 372 mm (14.646?)
Weight 3 kg (6.614 lb)
IP Rating IP65
Material Aluminium
Housing Aluminium
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Clamp, Quick-Lock
Thermal Specifications
Maximum Ambient Temperature 45 °C (113 °F)
Product Compliance
Energy efficiency class T/B/D
