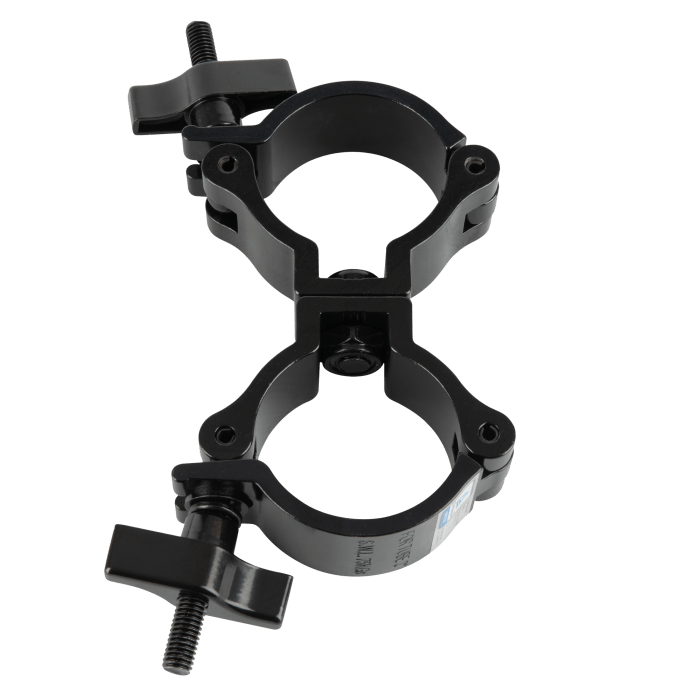

Showgear Compact Swivel Coupler

Swivel Coupler for 50 mm truss/tube
WLL: 100 kg
TUV certified
Aluminium
Black colour

The lightweight Showgear Swivel Coupler provides a secure connection between adjacent tubes and trusses whilst allowing 360 ° movement.

Specifications:

Mechanical Specifications
WLL safety factor 4:1 250 kg (551.155 lb)
WLL safety factor 5:1 200 kg (440.924 lb)
WLL safety factor 8:1 125 kg (275.578 lb)
WLL safety factor 10:1 100 kg (220.462 lb)
Colour Black
Material Aluminium
Main Tube Diameter 48 - 51 mm
Height (mm) 193 mm (7.598?)
Width (mm) 86 mm (3.386?)
Depth (mm) 30 mm (1.181?)
Weight 0.3 kg (0.661 lb)
