9 mm high grade plywood construction
Penn-Elcom hardware
100 mm castors

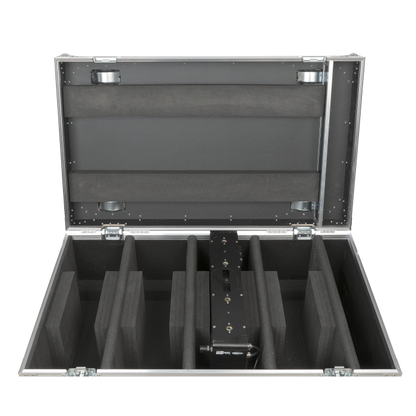

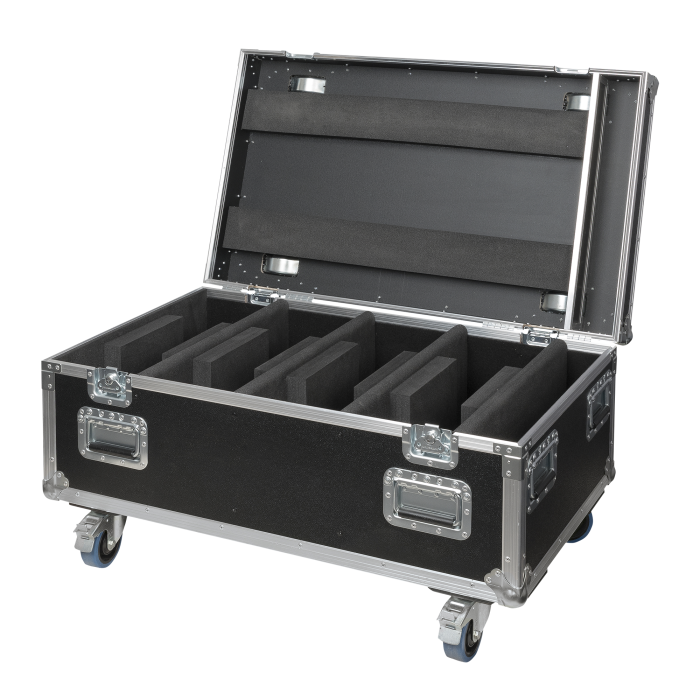

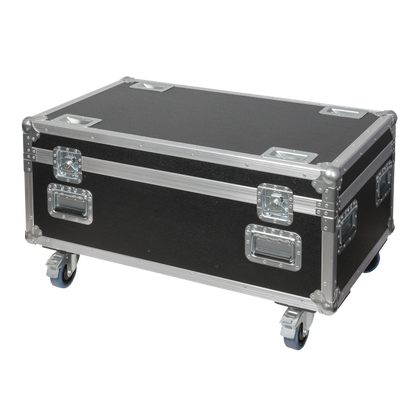

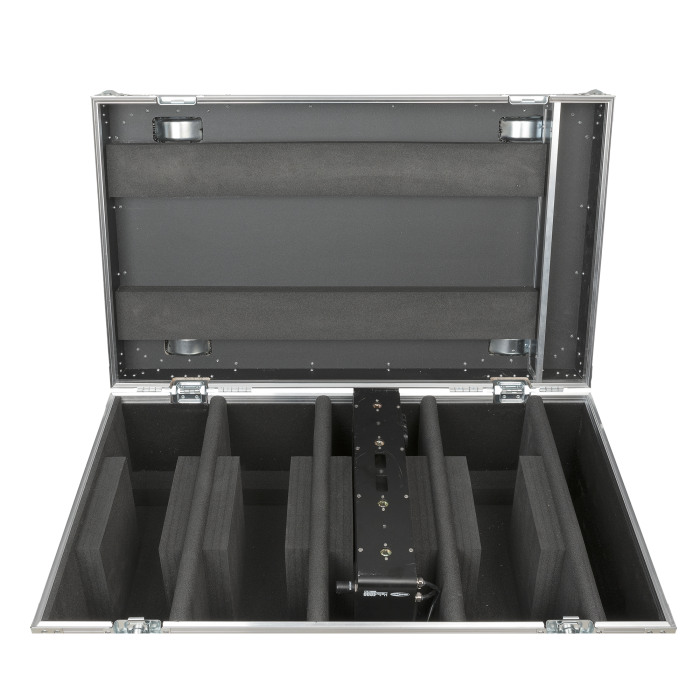

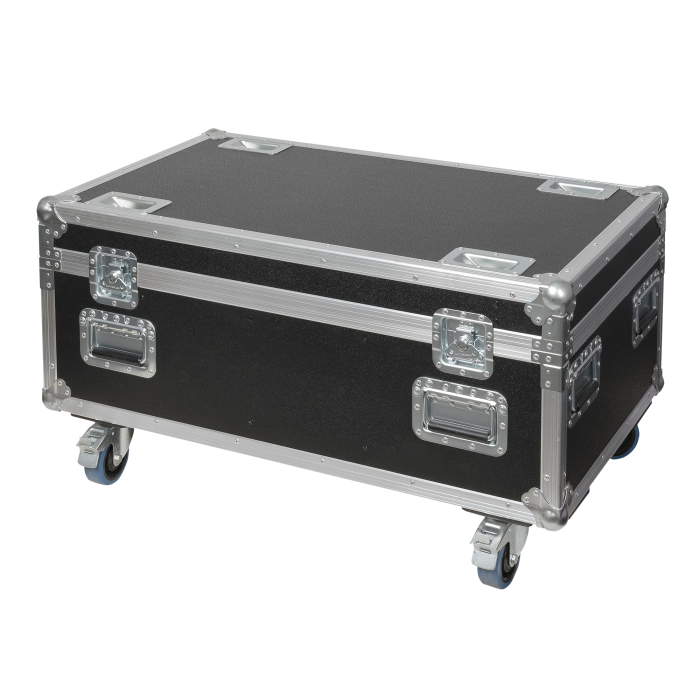

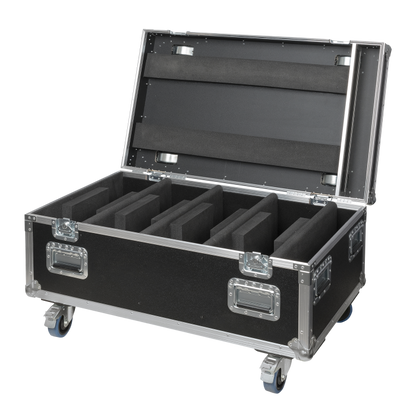

Dedicated flightcase for 4 pcs Helix S5000, equipped with 4x 100 mm blue swivel/brake wheels. Inside the case is also a separate compartment for cables or other accessories.
Specifications:

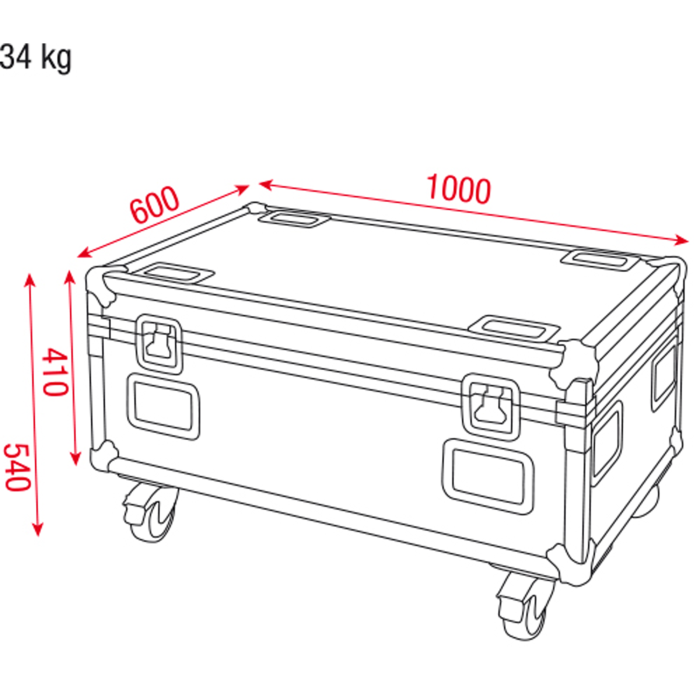

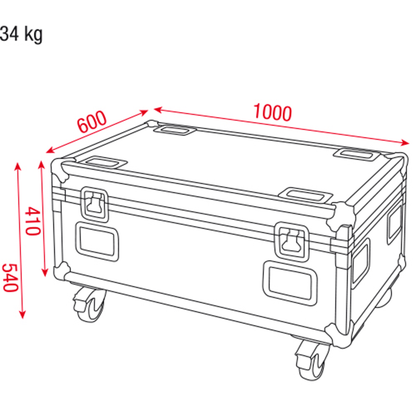

Mechanical Specifications
Height (mm) 540 mm (21.26?)
Width (mm) 1000 mm (39.37?)
Depth (mm) 600 mm (23.622?)
Inner Height 355 mm (13.976?)
Inner Width 945 mm (37.205?)
Inner Depth 558 mm (21.969?)
Weight 34 kg (74.957 lb)
IP Rating IP20 (indoor use only)
Material Wood
Material Thickness 9 mm (0.354?)
Fabric Foam
Colour Black
Product Properties
Flightcase Application Light Case
Packing Capacity 4 pcs
Handles Front, Back, Left side, Right side
Handle Type Recessed
Tour Label Space No
Aluminium Extrusion Frame Size 30 mm x 30 mm
Castors 4
Castor Size 100 mm
Castor Type Swivel with brake
Latch Type Butterfly
Latch Brand Penn Elcom
Hinge Type Fixed
Accessories Pocket Yes
Accessories Pocket Height 265 mm (10.433?)
Accessories Pocket Length 558 mm (21.969?)
Accessories Pocket Width 89 mm (3.504?)
