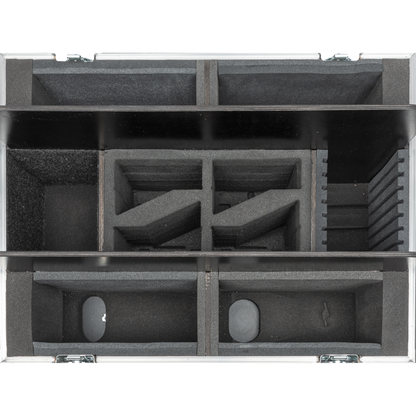

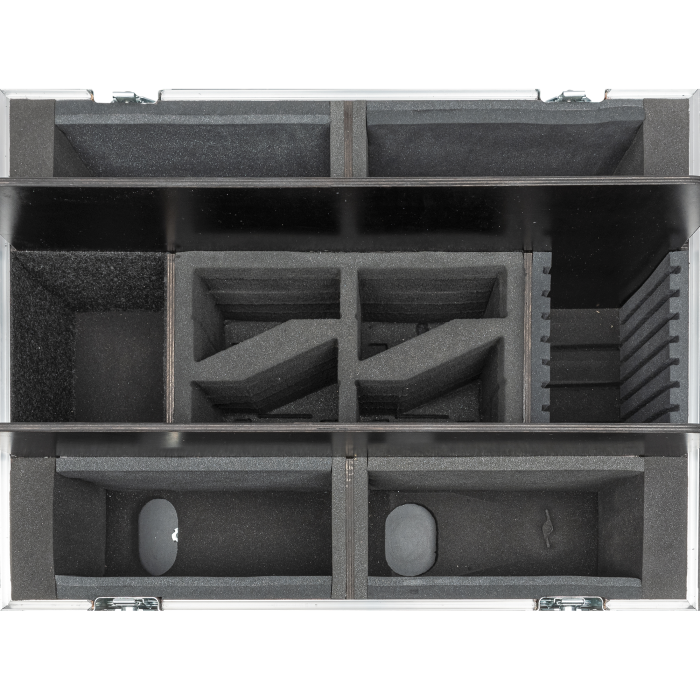

CNC machined foam interiors for max protection
9 mm high grade plywood carcass construction
All Penn-Elcom hardware
100 mm castors with safe weight loading of 400 kg fitted as standard

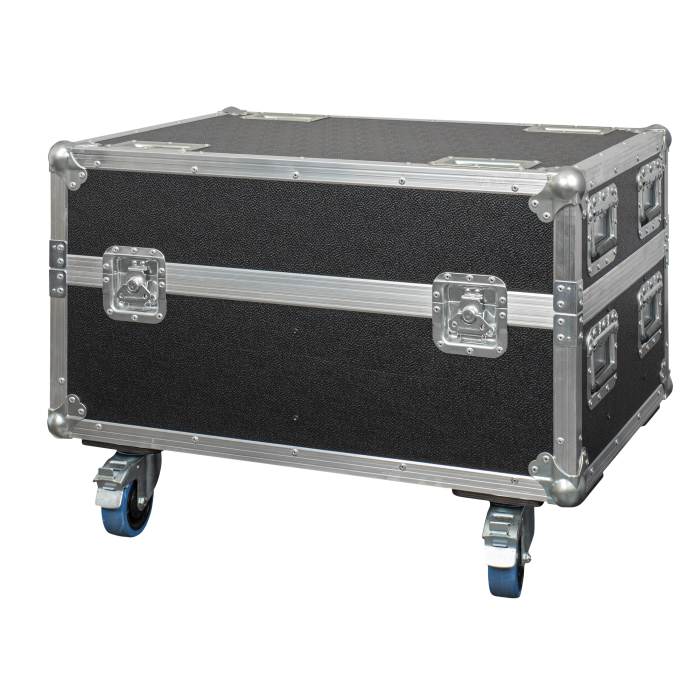

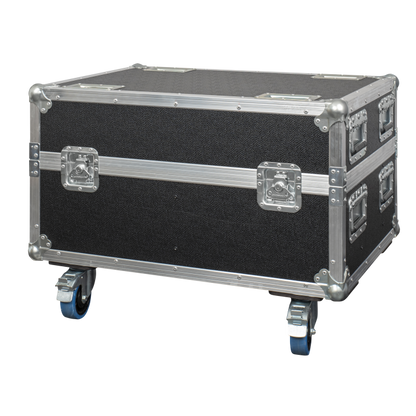

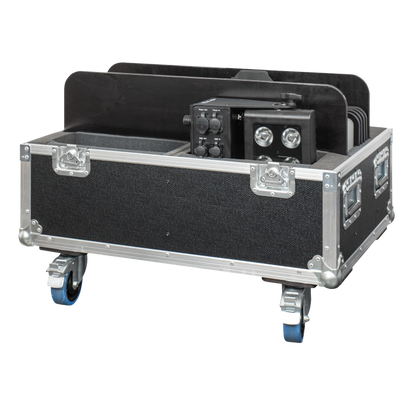

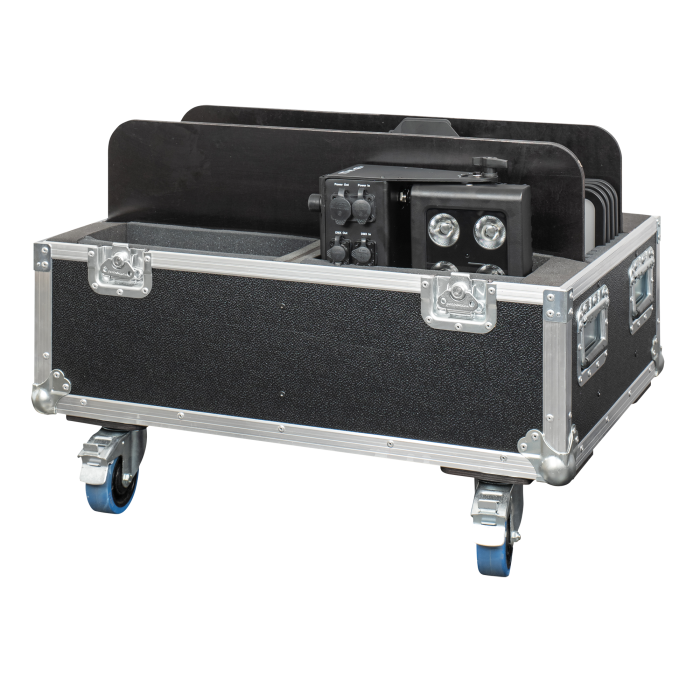

Flightcase for 4 pcs Helix M1000/M1100 with separate compartments for the corresponding optional accessories. Four tophats or four barndoors, eight beamshapers and room for clamps, cables, quicklocks and safety cables. The perfect transportation method to make sure that your Helix units stay safe and complete on the road.
Specifications:
Mechanical Specifications

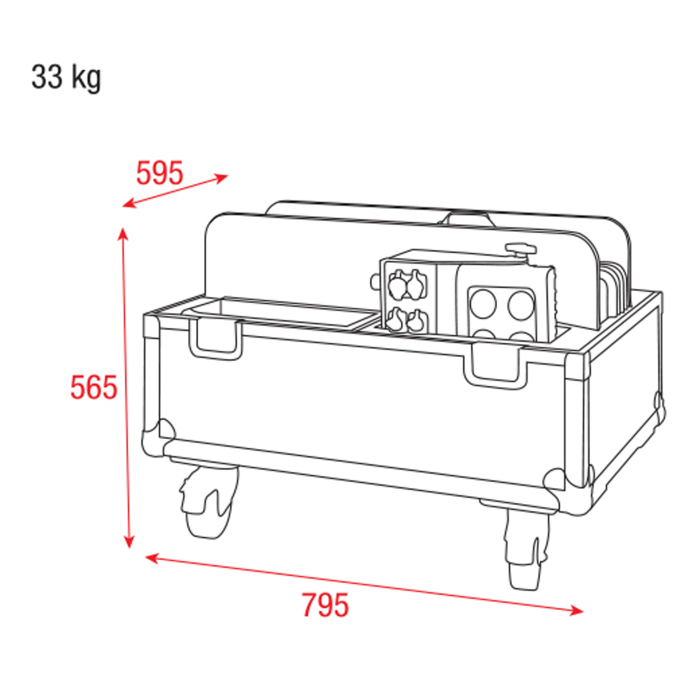

Height (mm) 565 mm (22.244?)
Width (mm) 795 mm (31.299?)
Depth (mm) 595 mm (23.425?)
Weight 33 kg (72.752 lb)
IP Rating IP20 (indoor use only)
Material Wood
Material Thickness 9 mm (0.354?)
Fabric Foam
Colour Black
Product Properties
Flightcase Application Light Case
Packing Capacity 4 pcs
Handles Front, Back
Handle Type Recessed
Tour Label Space No
Aluminium Extrusion Frame Size 30 mm x 30 mm
Castors 4
Castor Size 100 mm
Castor Type Swivel with brake
Latch Type Butterfly
Latch Brand Penn Elcom
Accessories Pocket Yes
