7x 12 W RGBWA-UV LED Spot
IP65 (dust and water resistant, fit for outdoor use)
15° fixed beam angle
Dimmer and strobe function
Manual, DMX, IR and Master/Slave control

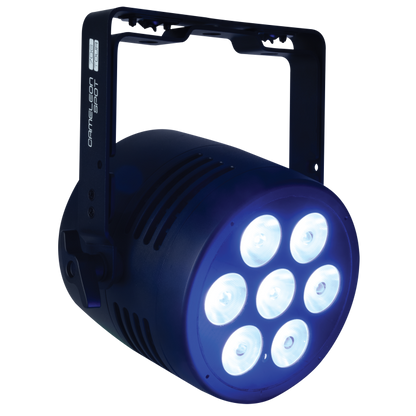

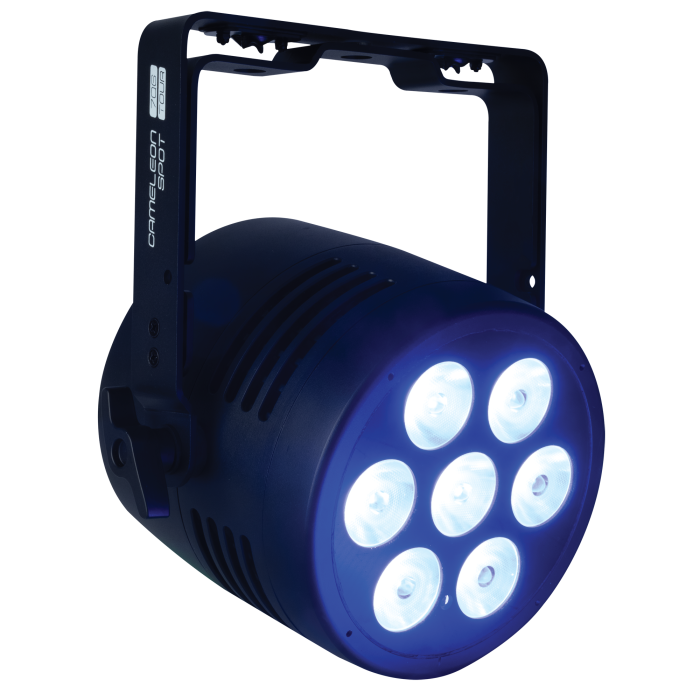

The Showtec Cameleon Spot 7Q6 Tour is a compact 7x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It is small enough to position inside a square truss as an up/down light, has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 7Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.
Specifications:
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 12 W
LED Colour Type RGBWAUV
Refresh Rate 3000 Hz
Luminous Flux (Total) 1850 lm
Luminous Flux (Red) 500 lm
Luminous Flux (Green) 800 lm
Luminous Flux (Blue) 195 lm
Luminous Flux (White) 725 lm
Luminous Flux (Amber) 575 lm
Luminous Flux (UV) 55 lm
Optical
Beam Angle (Circular) 15 °
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave, Remote
DMX Channels 6, 8, 13
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 65 W

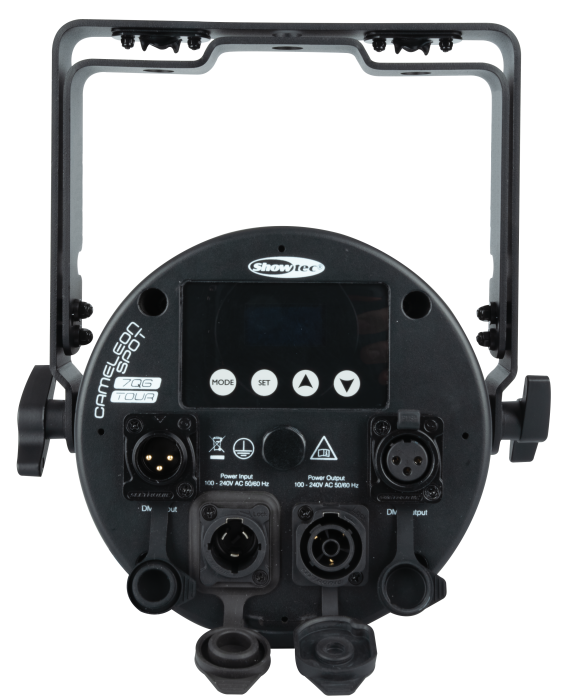

Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 225 mm (8.858?)
Width (mm) 160 mm (6.299?)
Height (mm) 242 mm (9.528?)
Weight 3.3 kg (7.275 lb)
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -5 °C (23 °F)
Included Items
Included Cables Power Pro True Cable
