6x 5 W RGBW LED Flood
IP65 (dust and water resistant, fit for outdoor use)
40° fixed beam angle
Dimmer and strobe effects
Manual, DMX, IR and Master/Slave control

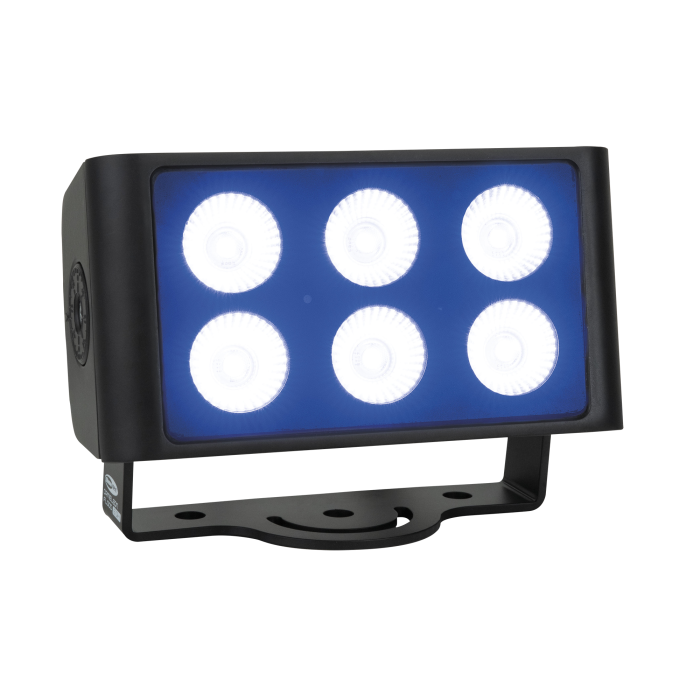

The Showtec Cameleon Flood 6 Q4 is a 6x 5 watt RGBW LED Flood with IP65 rating, suitable for indoor and outdoor applications. It has a 40° fixed beam angle and features 0 - 100 % dimmer and 0 - 15 Hz strobe effects. The Cameleon Flood 6 Q4 can be controlled manually, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It comes with a dedicated IP65 power connector and bracket. An infrared remote is optional.
Specifications:
Source:
Light Source Type LED
Light Source Quantity 6
Light Source Power 5 W
LED Colour Type RGBW
Refresh Rate 1200 Hz
Luminous Flux (Total) 1337 lm
Luminous Flux (Red) 324 lm
Luminous Flux (Green) 754 lm
Luminous Flux (Blue) 124 lm
Luminous Flux (White) 579 lm
Optical:
Beam Angle (Horizontal) 40 °
Beam Angle (Vertical) 40 °
Battery:
Battery powered No
Control and Programming:
Control Mode Auto, DMX, Manual, Master Slave, RDM
DMX Channels 4, 6, 10
Protocols DMX
Display OLED, Touch
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects:
Dimmer 0-100 %
Strobe 0-15 Hz
Electrical Specifications and Connections:
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 35 W

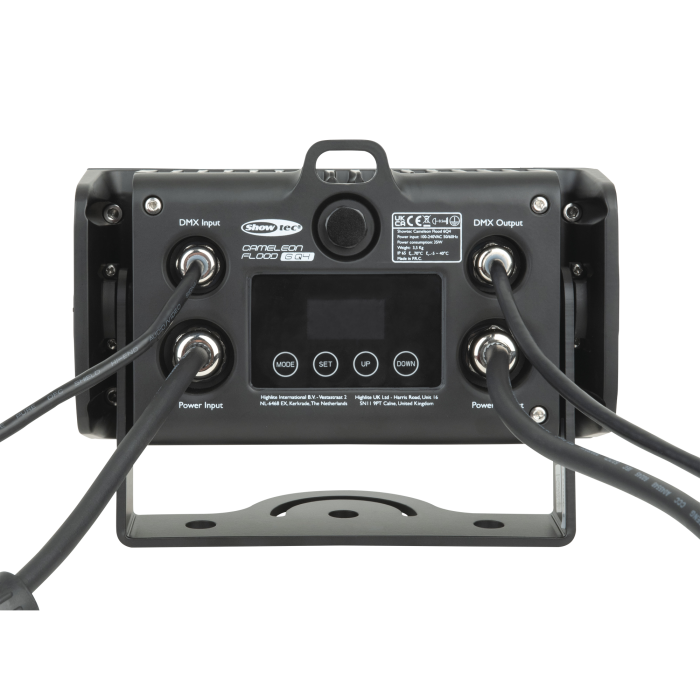

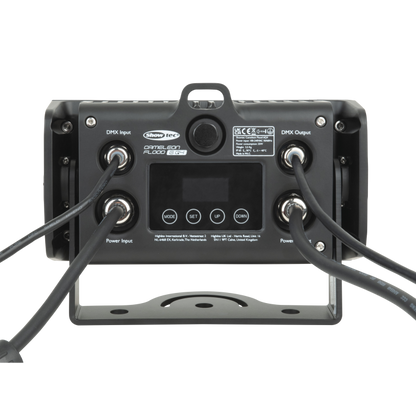

Power Connector In Dedicated IP65 Powerconnection
Power Connector Out Dedicated IP65 Powerconnection
DMX Connector Dedicated 3P IP65 In/Out
DMX Connector In Dedicated 3P IP65
DMX Connector Out Dedicated 3P IP65
Cable Length 1.5 m
Mechanical Specifications:
Width (mm) 220 mm (8.661″)
Height (mm) 150 mm (5.906″)
Depth (mm) 126 mm (4.961″)
Weight 2.66 kg (5.864 lb)
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties:
Cooling Convection
Rigging:

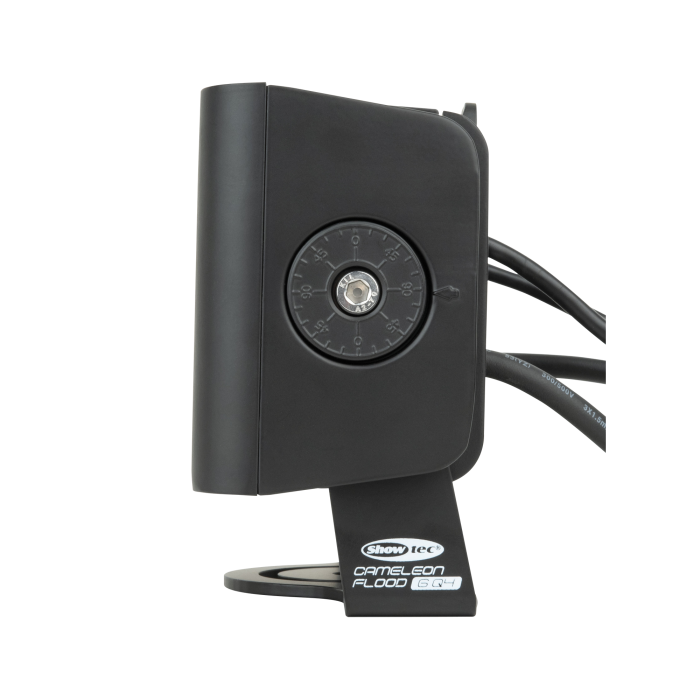

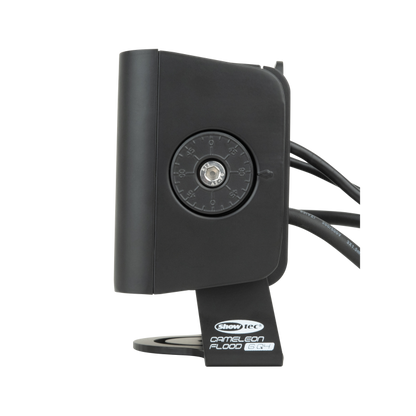

Mounting Options Clamp
Safety Attachment Yes
Thermal Specifications:
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 80 °C (176 °F)
Included Items:
Included Cables Dedicated IP65 Powerconnection
Included Accessories End Cap
Included Rigging Bracket
