Wide range DC input voltage
Fully isolated inputs and outputs
RDM compliant
DIN EN43880 form factor
DIN EN60715 rail system

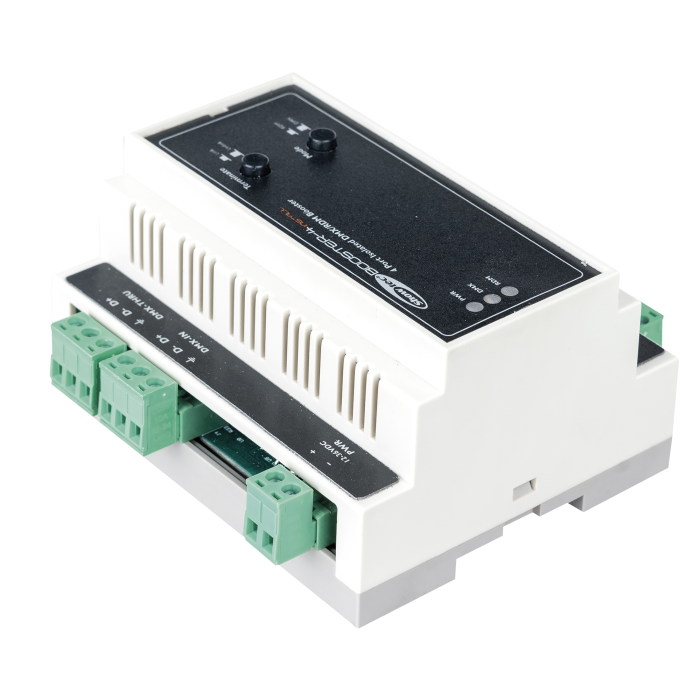

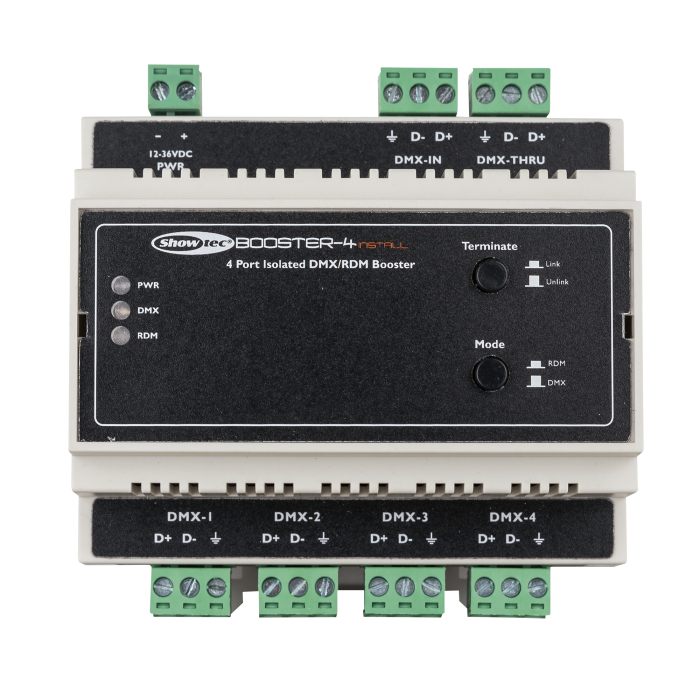

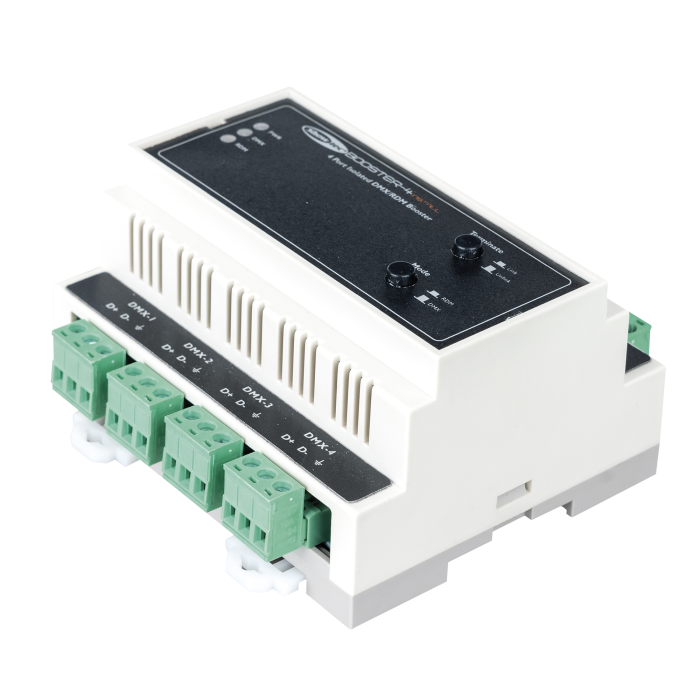

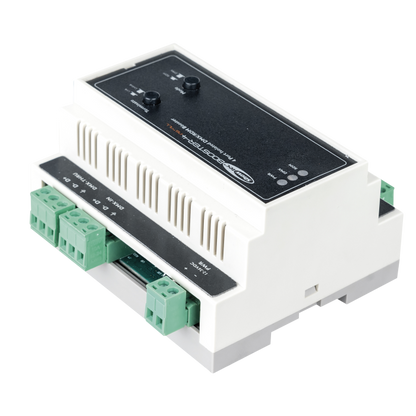

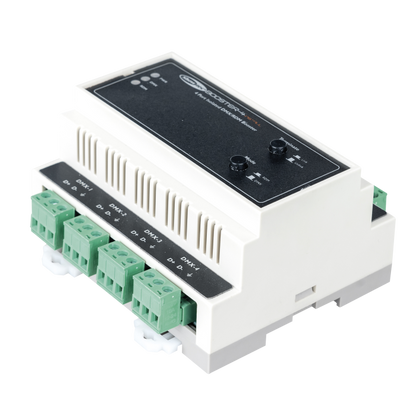

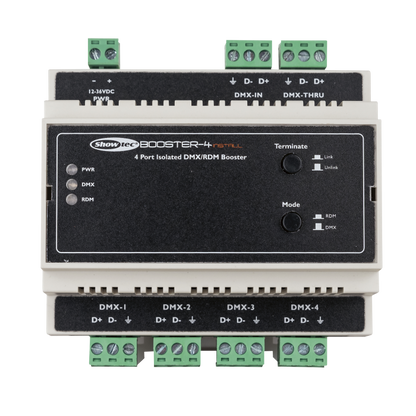

The Showtec Booster-4 Install is the ideal compact fixed-installation booster for you. All connections are easy connectable with the plug-in Phoenix terminals, and both inputs as all outputs are optically isolated to prevent any interference from getting hold of your signal. The din-rail mounted Booster distributes both DMX and RDM and is ideal for network system integration projects.
Specifications:
Electrical Specifications and Connections
Power Supply 12-36 V DC
Power Consumption 9 W
Power Connector In Phoenix
DMX Connector Phoenix In/Out
DMX Connector In Phoenix
DMX Connector Out Phoenix
Mechanical Specifications
Length (mm) 106 mm (4.173?)
Width (mm) 87 mm (3.425?)
Height (mm) 58 mm (2.284?)
Weight 0.18 kg (0.397 lb)
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Grey
Product Properties
DIN Rail Spacing 35 mm (1.378?)
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Control and Programming
Control Mode DMX
Protocols DMX, RDM
Universes 1
