Wireless DMX G3 and G4 transmitter and G3 & G4S receiver modes
Quick and easy setup
M10 and 3/8” mounting threads
Compatible with the Showtec AirDrive 2.4 IP
Universal power supply included

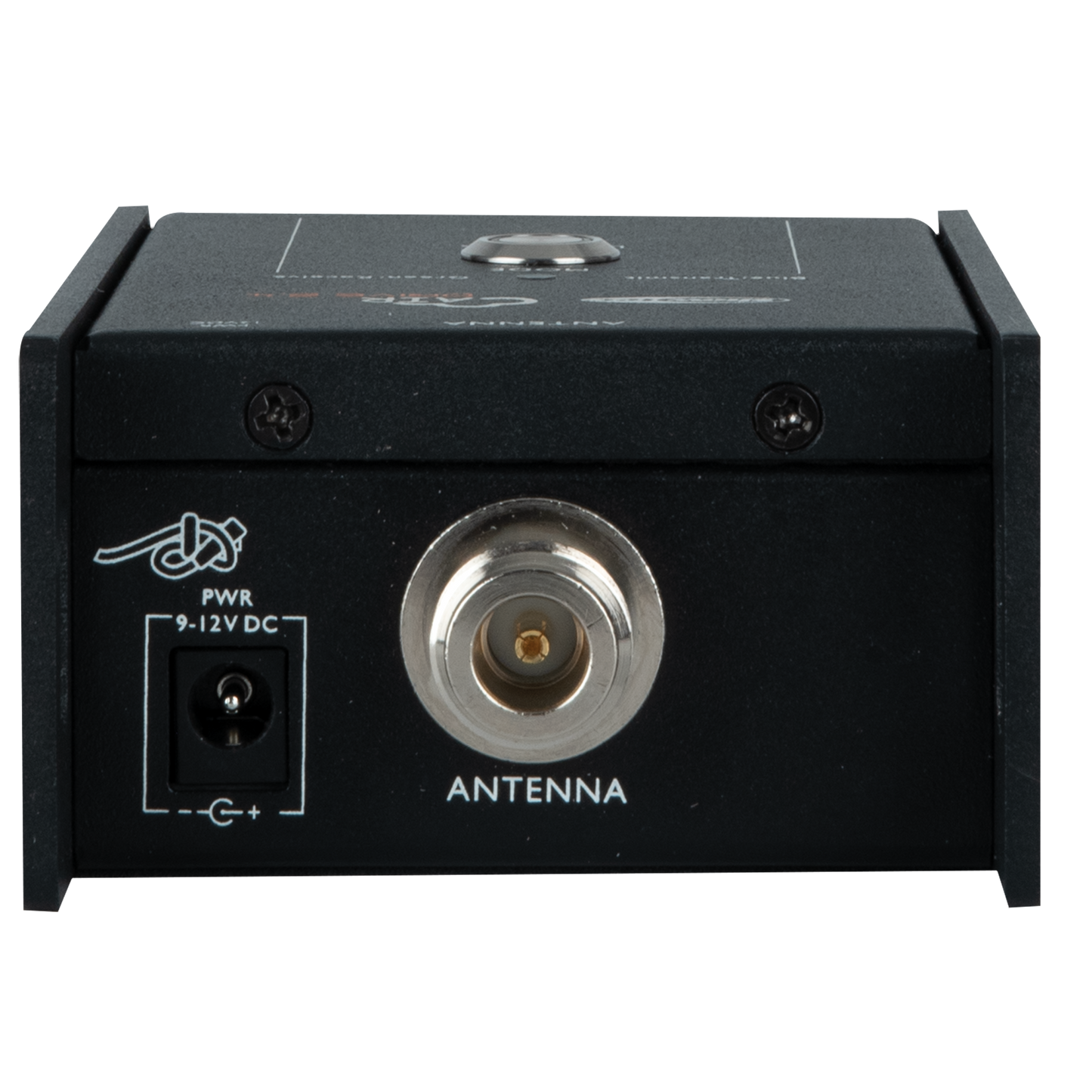

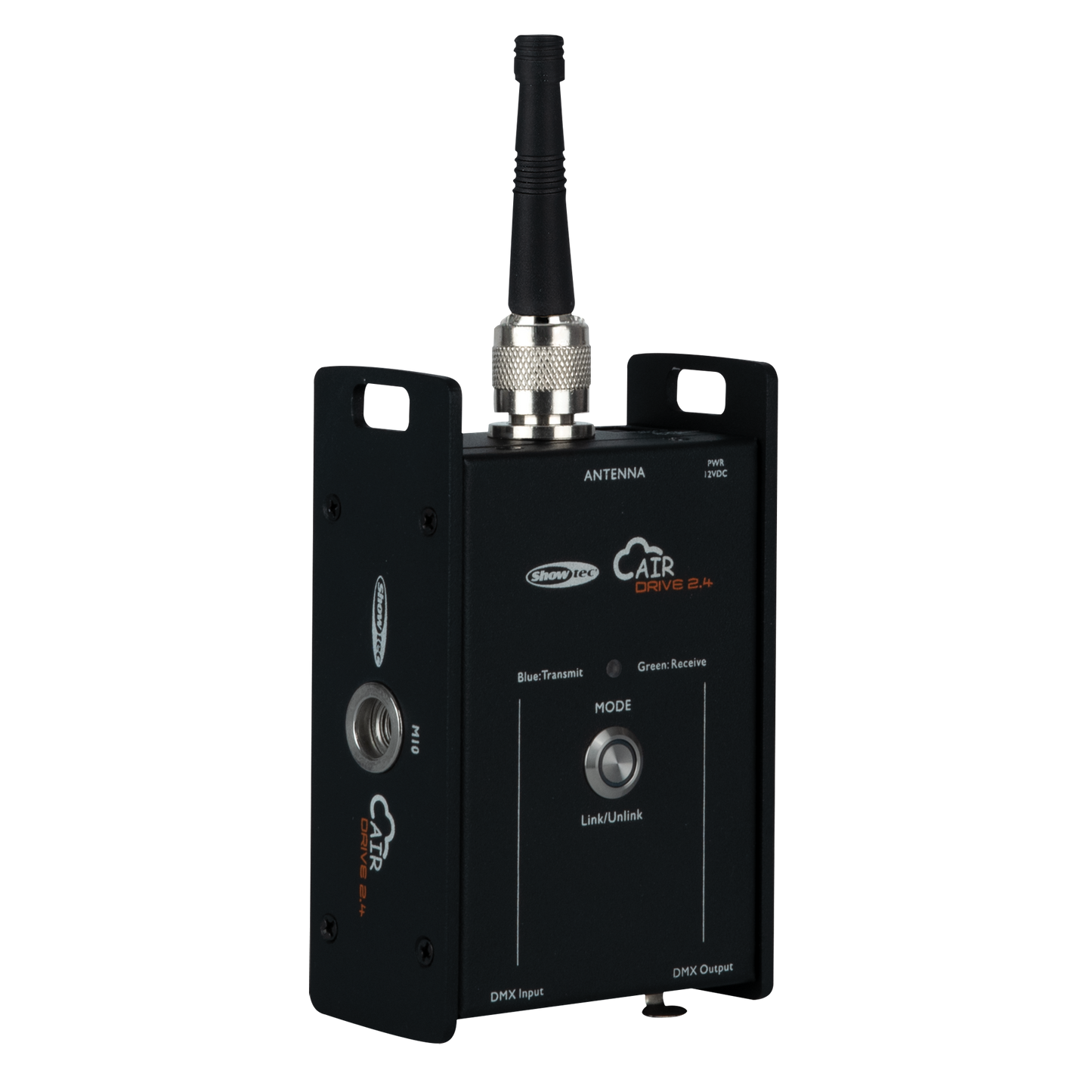

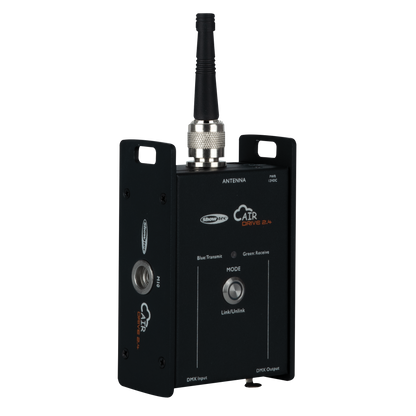

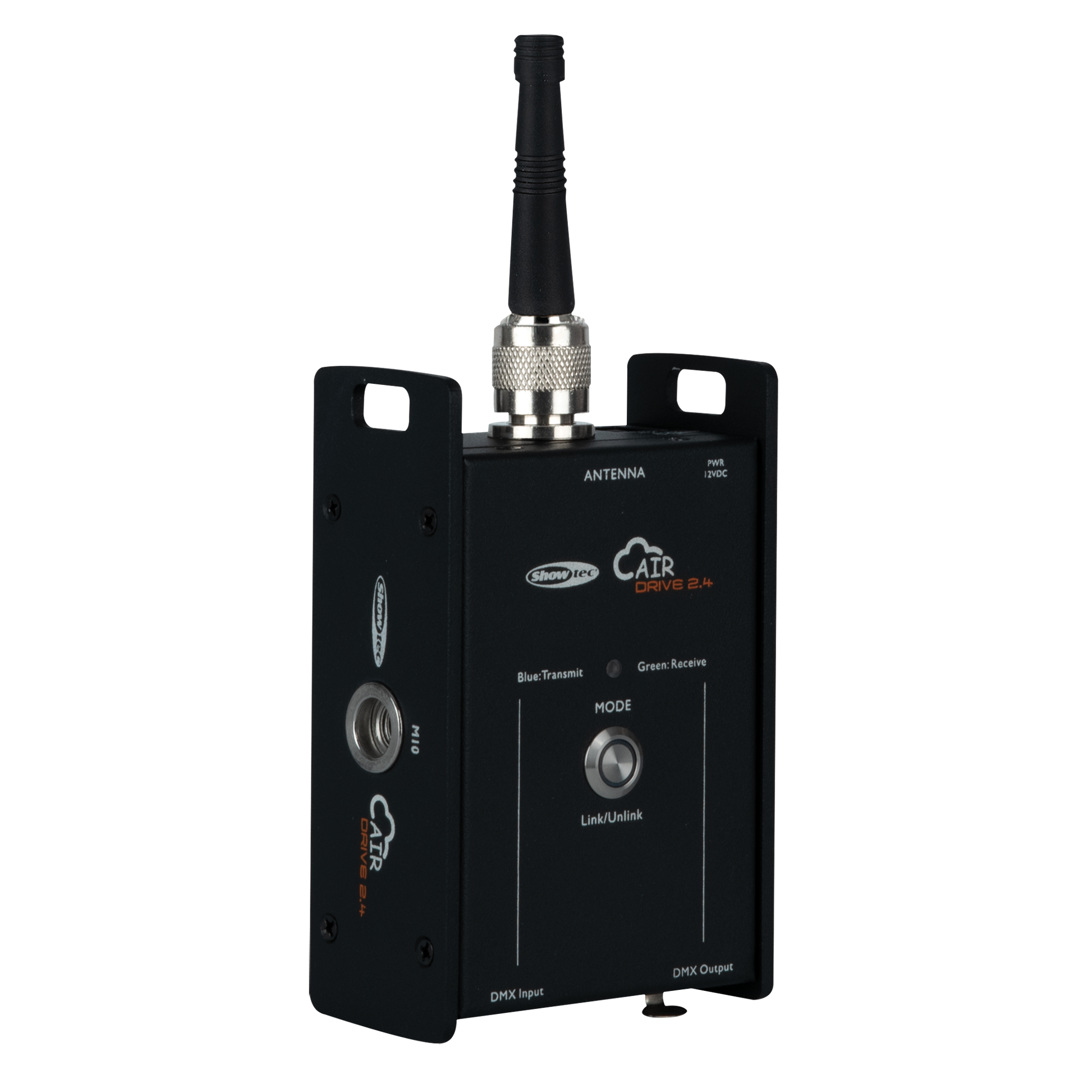

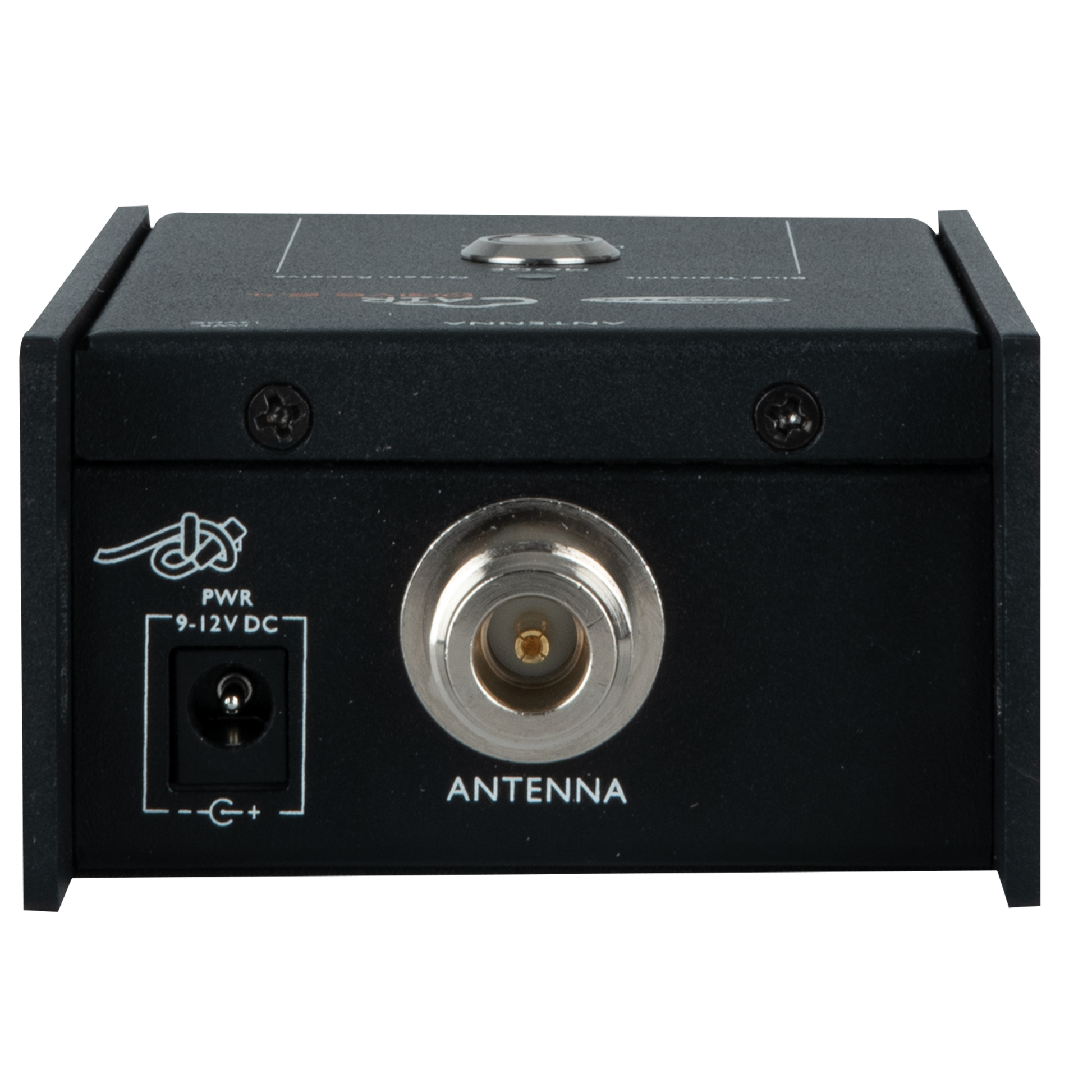

The Showtec AirDrive 2.4 Pocket is a compact DMX512 transceiver that can be switched between transmitter and receiver functionality. It is designed for quick and easy setup of a wireless DMX512 connection. In transmitter mode it can transmit in G3 or G4 mode, in receiver mode, it is capable of G3 and G4S mode. A functional setup requires two or more units: one set up as a transmitter and one or more set up as a receiver and paired with the transmitter. There is no limit to the number of receivers that can be paired with the transmitter.
The AirDrive 2.4 Pocket has an M10 thread for easy clamp mounting and a 3/8” thread for easy mic stand mounting, so it’s quick and easy to raise the AirDrive above the audience when needed (for example, when you’re in the FOH position). Line-of-sight operation is recommended for optimum reception and maximum range. The AirDrive 2.4 Pocket is compatible with the AirDrive 2.4 IP. It comes with a universal power supply and is available with 3 or 5-pin DMX XLR connectors.
Specifications:
Wireless Specifications
Wireless Mode G3, G4s
Reaction Time 5 ms
Antenna Boost 3 dBi
Antenna Type Omni
Antenna Radiation 360 x 180 °
Control and Programming
DMX Channels 512
Protocols DMX
Operational Modes Transceiver
Electrical Specifications and Connections
Power Supply 9-12 V DC
Power Consumption 6 W
Power Connector In Low Voltage DC plug
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Power Adapter
Adapter type AC-DC adapter (not included)
Mechanical Specifications
Length (mm) 125 mm (4.921″)
Width (mm) 78 mm (3.071″)
Depth (mm) 44 mm (1.732″)
Weight 0.38 kg (0.838 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Rigging
Mounting Options Clamp, Stand
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -10 °C (14 °F)
Minimum Operating Temperature -10 °C (14 °F)
