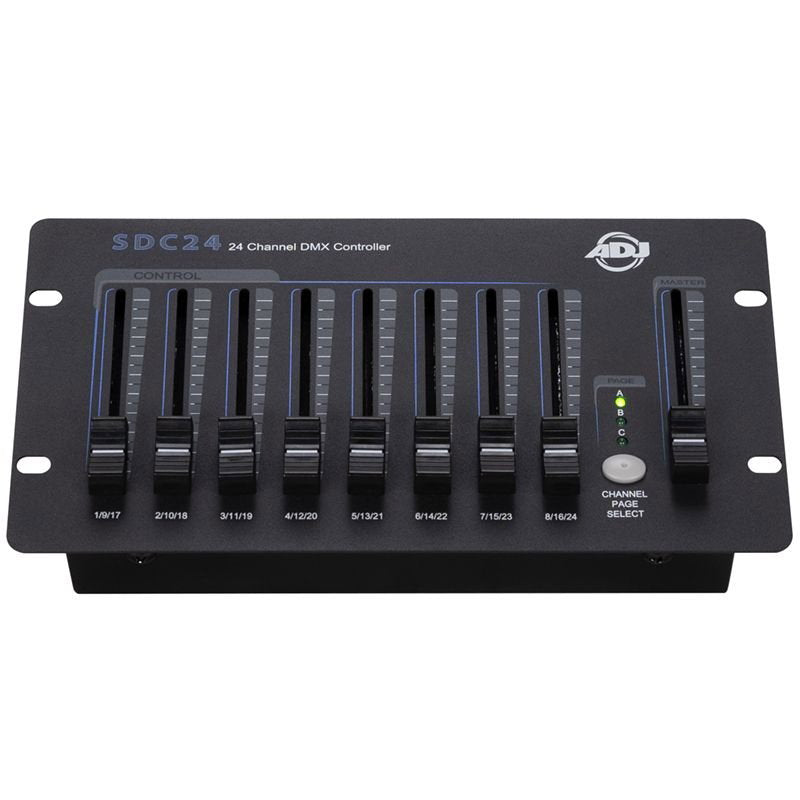

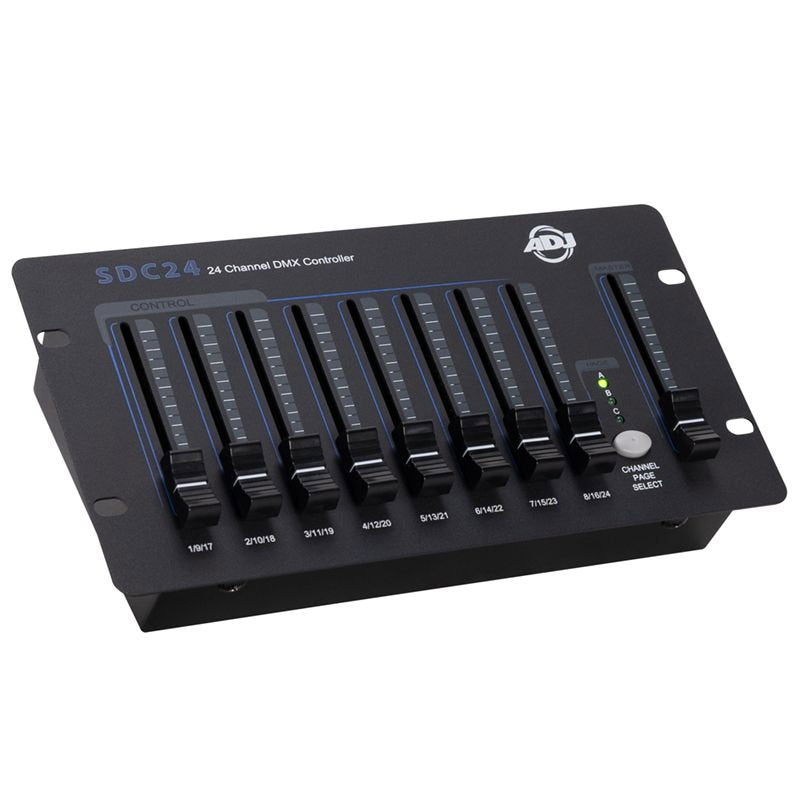

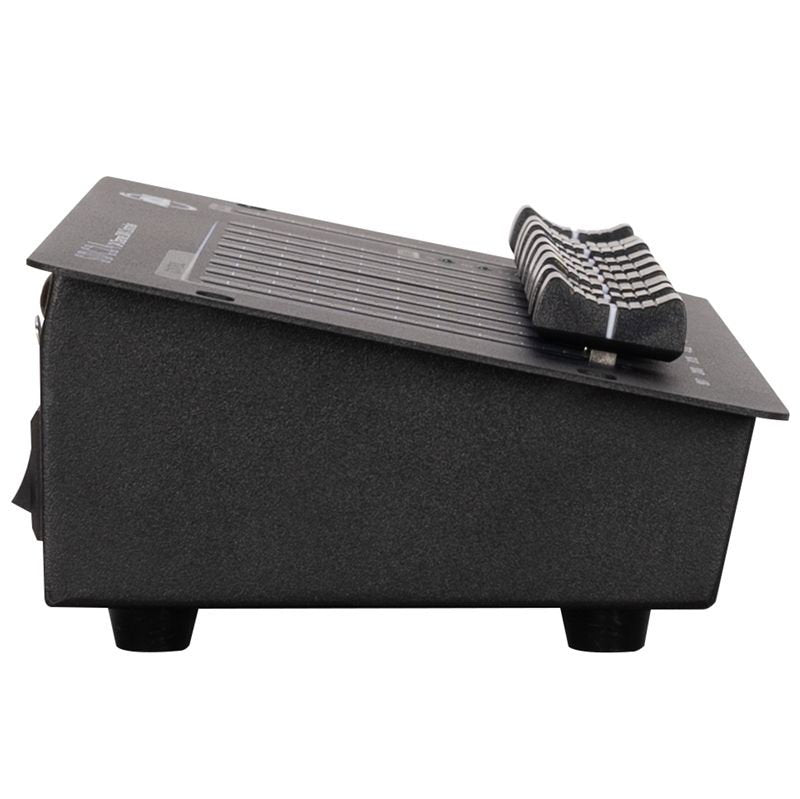

The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets DIP switches to set a starting DMX channel a master dimmer fader an on/off switch and Channel Page button with Indicator LEDs. This a great compact controller for product demos or manual control of LED or conventional fixtures.
Features:
8 individual channel faders and 1 master fader
24 DMX channels
Compact, portable design
3-Pin and 5-Pin XLR output
Battery Type: PP3 9V (not included)

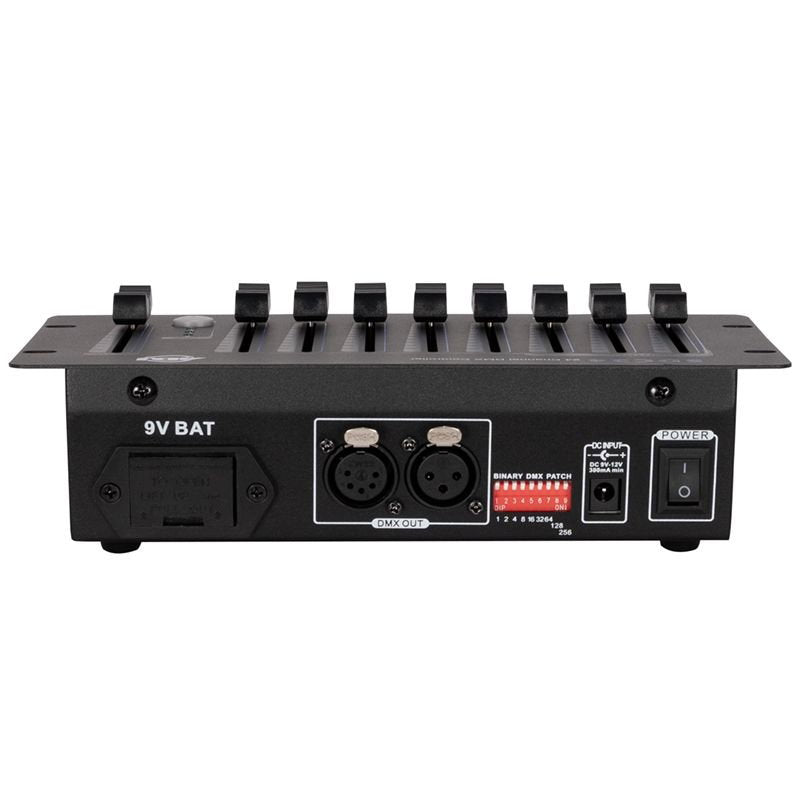

Control / Connection:
DIP Switches To Set Starting DMX Channel
3pin & 5pin DMX Outputs
On/Off Switch
Channel Page button with Indicator LED's
DC9V-12V Power Supply Input
9V Battery slot
Size / Weight:
Length: 120mm
Width: 230mm
Height: 56.66mm
Weight: 0.84kg
Electrical:
DC9V-12V 300mA min or 9V Battery (Not Included)
Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W
Approvals / Ratings:
CE Approved
RoHs Compliant
IP20
Included Accessories:

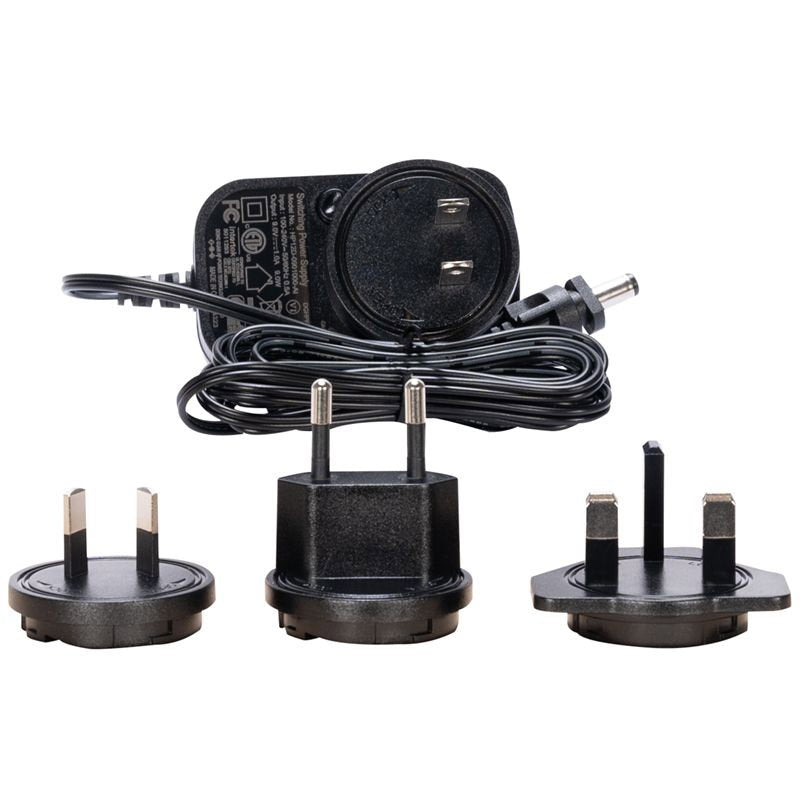

9V 1A Power Supply
