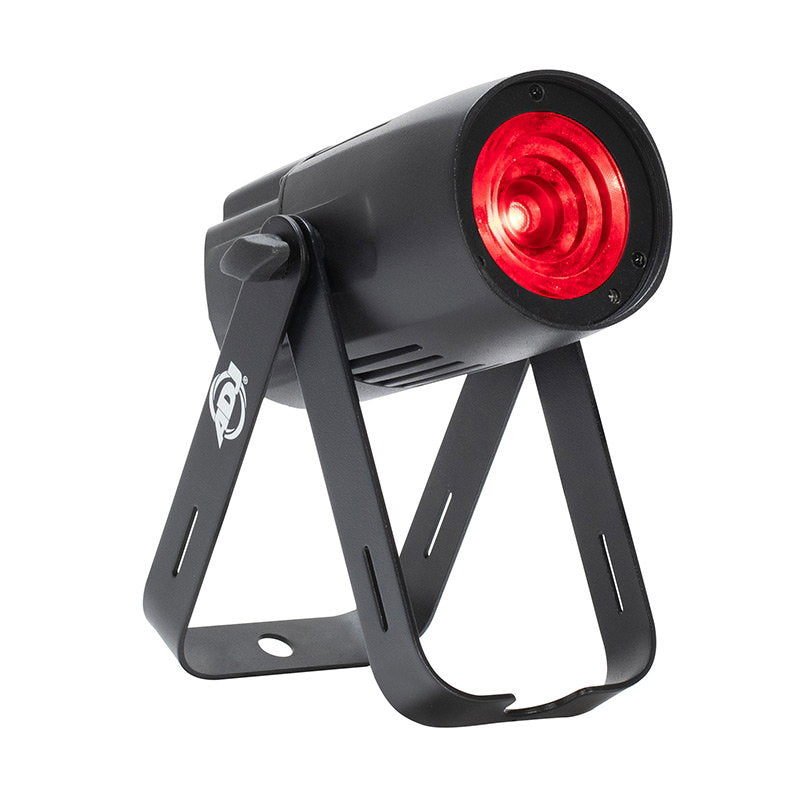

Building on the success of its predecessor the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red blue green and lime) LEDs source advanced ACL lens and a tight 5.7-degree beam angle the Saber Spot RGBL is designed for spotting tables objects or mirror balls and creating mid-air beam effects for lightshows.
This fixture is DMX and RDM compliant with 12 DMX channel modes 63 built-in colour macros 13 built-in colour changing programs and has white colour temperature presets ranging from 2000K to 9900K.
A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

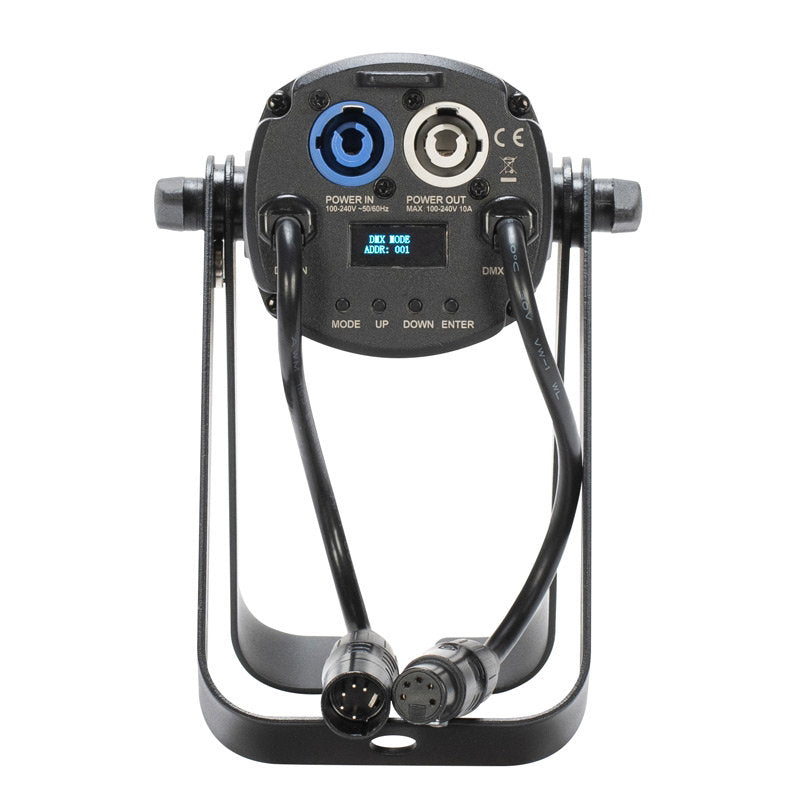

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.
Features:
Source:
Light Source: 20-Watt, RGBL LED
LED Life Expectancy: 30,000 Hrs
Beam Angle: 5.7°
Includes 2 interchangeable Frost Filter Lens (10-degree & 45-degree)
LED Refresh Rate: 3.6KHz
Features:
DMX and RDM Compliant
Colour Temperature Presets (2000K – 9900K)
63 Built-in Colour Macros
13 Built-in Colour Changing Programs
4-button Digital Display for easy navigation
Electronic Dimming 0 – 100%
Includes a Scissor Yoke to be hung, or set on the ground
Connections:
Power Input: Indoor Power Locking
Power Pass through: Indoor Power Locking
Control: 5-pin DMX In/Out Pigtails
With Wired Digital Communication Network
Control:
12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
RDM Compliant
Electrical:
Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
Power draw:16.7W
Power Linking: 95pcs @230V
Dimensions & weight:
Dimensions (LxWxH): 170 x 135 x 215mm
Weight: 1.45 kg.
Black Die Cast Housing
Approvals/Ratings:
CE
ETL (Pending)
IP20
What's Included:
1.83m Indoor locking power cord
2 Frost Filter Lens (10-degree & 45-degree)
Metal clip ring for frost filter lens
