Stereo 2-Way/Mono 3-Way Active Crossover with Subwoofer Output
2 way stereo - 3 way mono crossover with sub output for precise control of a multi amplifier passive speaker system.
PRODUCT DESCRIPTION:
Using an active crossover in a sound system will always sound better than using passive ones. Separating the bass frequencies from the high frequencies makes a significant difference to the overall sound system performance.

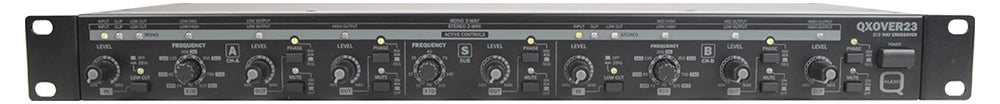

The Q-Audio QXOVER23 is a stereo 2-way or 3-way mono active crossover. Active crossover sits between mixer and amplifier, normally using balanced line level cables. The incoming signal is divided into different frequency bands via precise Linkwitz-Riley filters and offer good speaker driver protection by their steep 24dB/Octave slope. For further protection, 25 Hz Low Cut filters are provided to eliminate inaudible high-energy bass content.

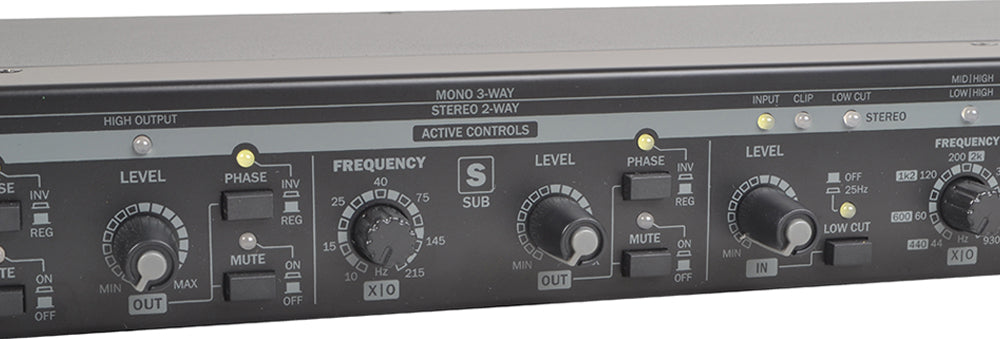

The unit also offers an independently-adjustable subwoofer output, providing an extra low-frequency band in a control range from 10-235 Hz making it effectively a 3-way stereo or 4-way mono active crossover. Mute and Phase Invert switches for all outputs make troubleshooting a breeze. Compared to digital loudspeaker management systems, the QXOVER23 is not only more affordable, but it also offers greater ease-of-use and a full 20dB signal headroom that only an analogue processor can provide.
KEY FEATURES:
1U 19" Rack mountable Active Crossover.
Stereo 2 Way, Mono 3 Way Settings.
Crossover Frequencies Adjustable.
Subwoofer Output with Frequency Control.
Individual Output Level Controls for all Bands.

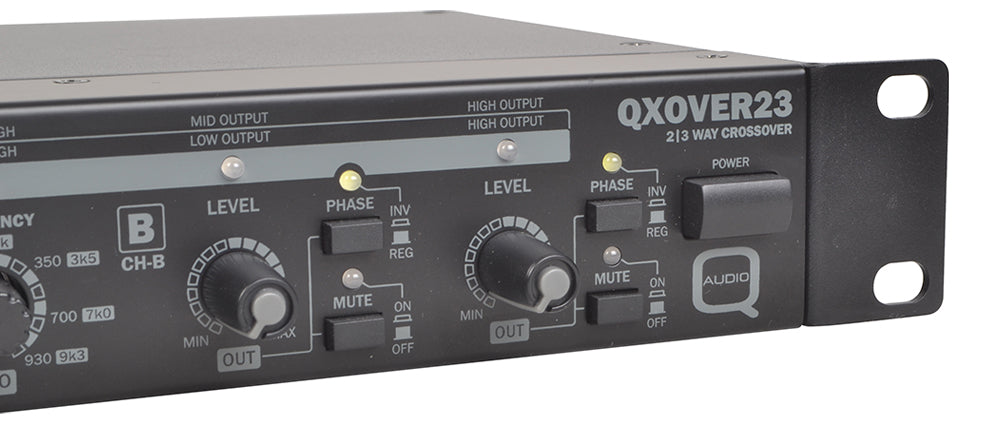

Output Mute Switches for all Bands.
Phase Reverse Switches.

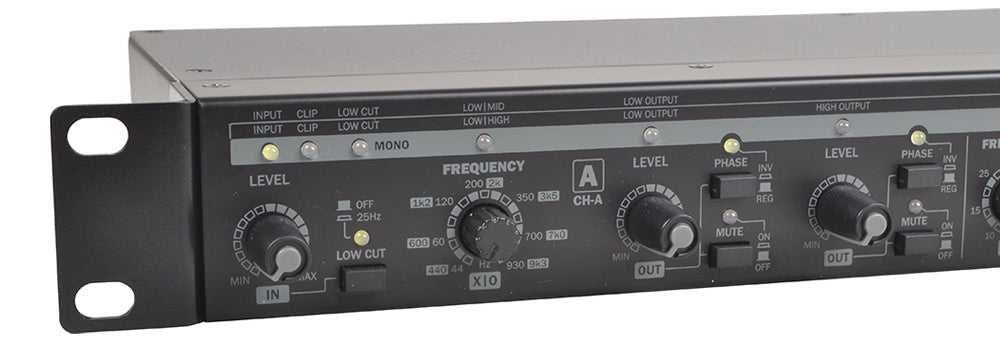

Low Frequency protection 25Hz Switch.

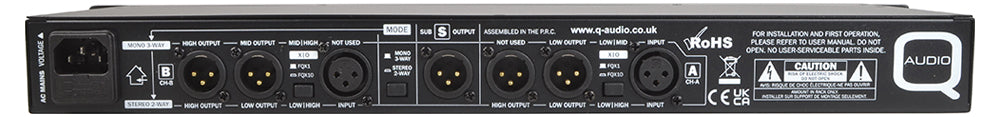

Input and Outputs are Balanced.
XLR Connections
Specifications:
S/N Ratio: >91dBu (unweighted 22Hz-22KHz)
Frequency Range: 20Hz - 20 kHz
Weight: 2.3 kg
AC Power: 115/230V~ 50Hz-60Hz (20W)
THD: <01%
Cross Talk: >92dB
Dimensions (WxHxD): 483mm x 44.5mm x 162mm
