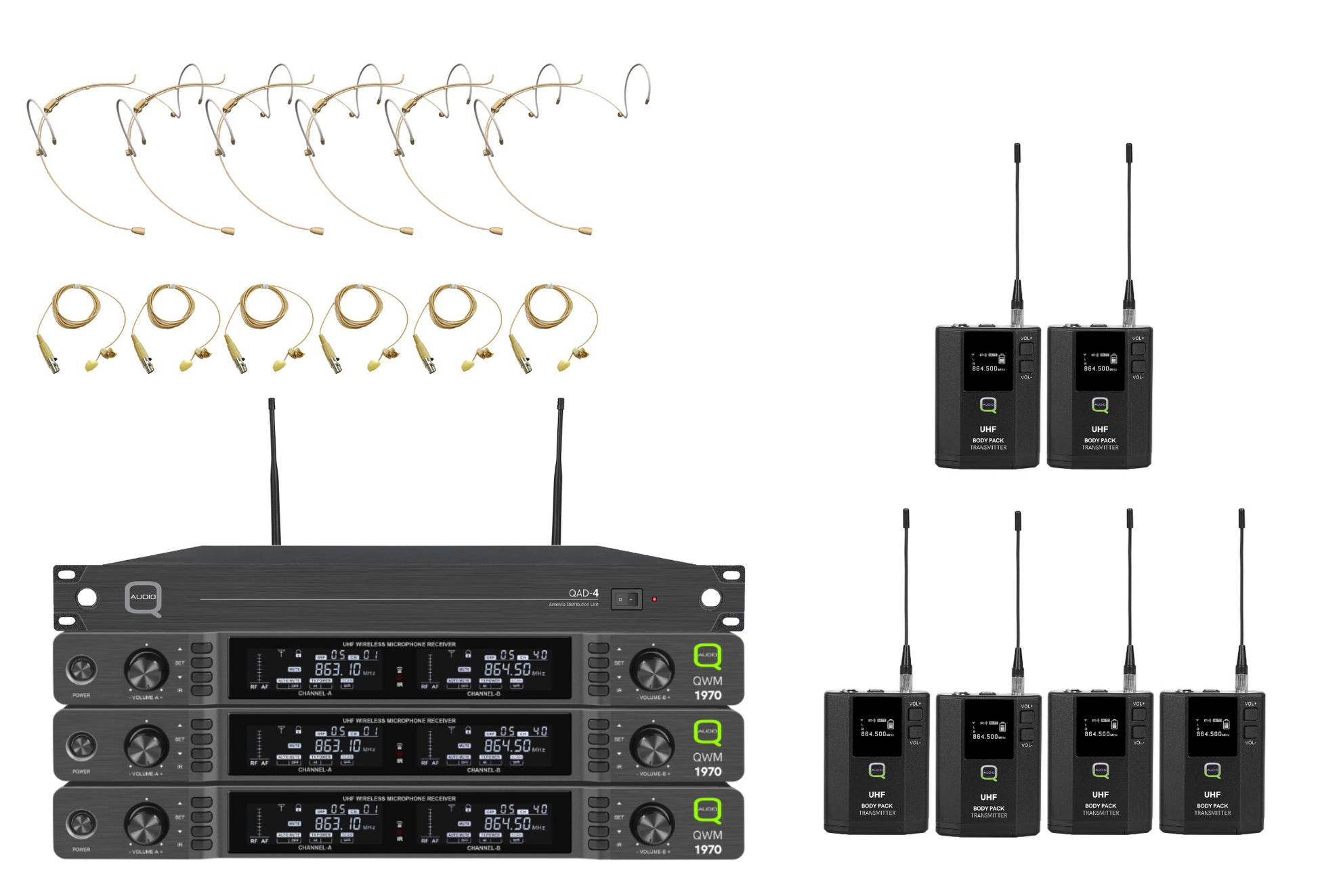

The QWM1970 is a professional true diversity wireless system. This 6 channel package is supplied with 3 dual receivers, 6 bodypack transmitters, 6 beige head-worn mics, 6 lapel mics, and 6 instrument cables. Supplied with a QAD 4 Antenna Distribution Unit and BNC cables, it delivers reliable, flexible performance for speech, vocals, and instruments.
PRODUCT DESCRIPTION:
The Q-Audio QWM1970BP-6W is a complete six-way wireless package designed for venues and teams that need reliable, easy-to-use radio mics across multiple performers. At its heart are three dual true diversity receivers paired with six beltpack transmitters. You get six beige head-worn microphones for discreet, close-micd speech, plus six lapel microphones for hands-free presenting. For musicians, six instrument cables are included so you can wire up guitars and other instruments with the same system.
To keep RF stable across all channels, the bundle includes the Q-Audio QAD-4 antenna distribution unit and the required BNC leads. The QAD-4 routes a pair of antennas to up to four diversity receivers, simplifying cabling and improving reception in busy RF environments. It is a dual 1:4 active splitter designed for wideband UHF operation, with loop-through for system expansion and DC power distribution for your receivers.
KEY FEATURES
System
Complete 6 way package for Headworn/Lapel/Instrument
Supplied in channel 38 (606 - 614MHz)
3x QWM 1970 True Diversity Dual Receivers
6x QWM 1970BP Body Pack Transmitters
6x Beige Head Worn Microphones
6x Beige Lapel Microphones
6x Instrument Cables
1x QAD 4 Antenna Distribution Unit
Receiver:
Frequency: 606 -614 MHz
Bandwidth: 8MHz
Dynamic Range: 96dB
Distortion: <0.1%
Signal/Noise Ratio: 96dB
Frequency Response: 30Hz - 20kHz ±2dB
Signal/Noise Ratio: 90dB
Receiving Sensitivity: -95dBm
Power Supply: DC 12V 1A
Bodypack Transmitter:
Frequency: 606 -614 MHz
Frequency Switching: IR Sync
Harmonic Radiation: <- 50dBc
Output Power: Up to 30mW
Batteries Required: 2x1.5V AA batteries
Battery life: >5h
Antenna Distribution:
Bandwidth: UHF 450 - 1000 MHz
Antenna In/Link Out Connections: BNC
Antenna Inputs: 2
Antenna Link: 2
Antenna Outputs: 8
Antenna Power (via Antenna Input): 9v 100mA
Power Input Connection: 1x 12v DC Jack
Power Output Connections: 4x 12v DC Jack
