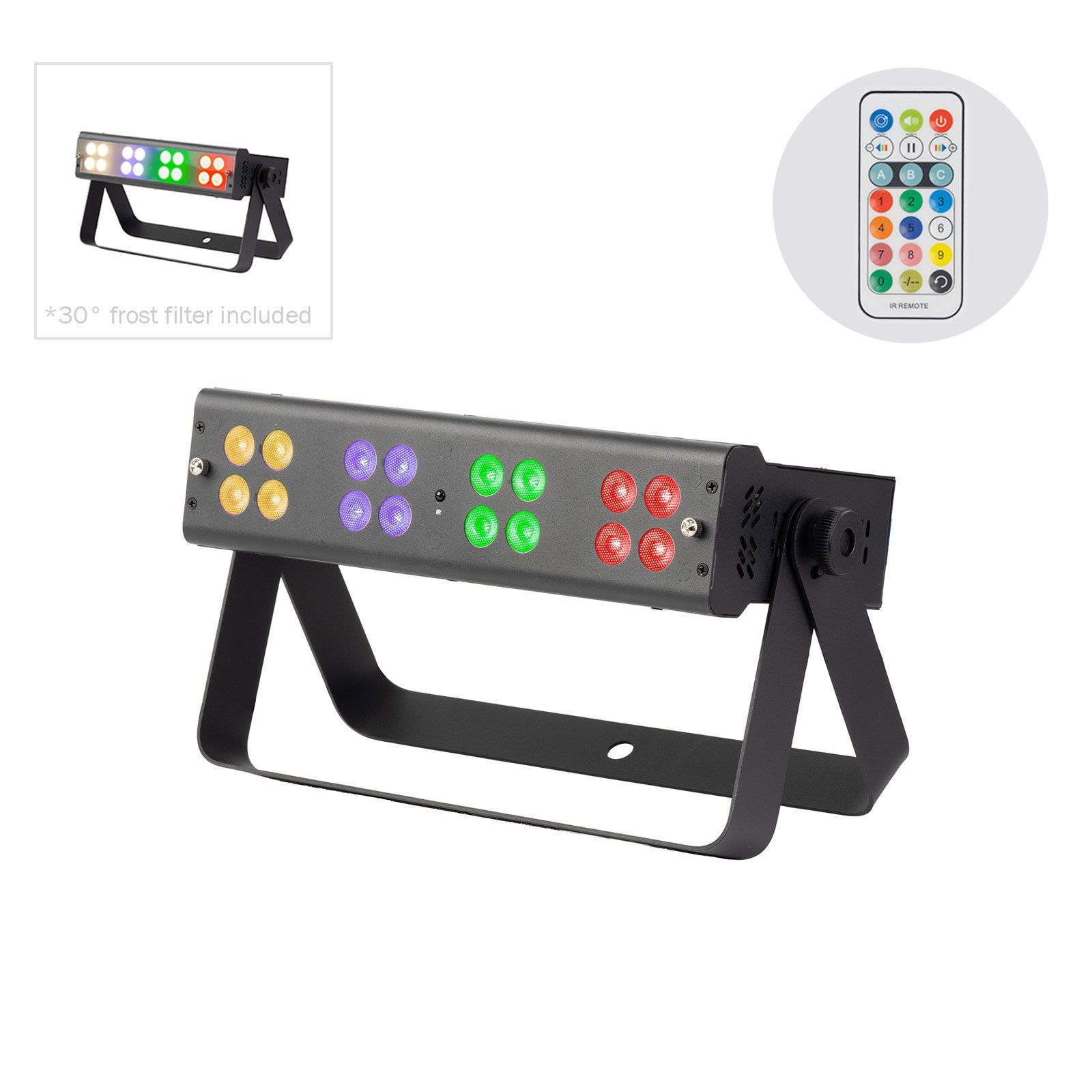

Packed with sixteen 4W RGBWW LEDs, the Equinox Quad Blox delivers bold, vibrant colour with seamless blending and a removable frost filter for smooth washes. It features a variety of built-in shows accessible via the onboard menu or an included IR remote, facilitating straightforward plug-and-play operation. For advanced users, multiple DMX modes provide individual control over each segment, and the unit is compatible with W-DMX USB for wireless connectivity. The Quad Blox comes equipped with a dual bracket, allowing for flexible rigging or floor-standing setups.
Features:
16 x 4W quad-colour LEDs (RGBWW)
Beam angle: 20°
1,605 Lux @ 2m (full on)
30° frost filter included
Pixel zone mapping (4 segment)
Refresh rate: 1200Hz
Selectable DMX channels: 4/6/9/16/18/20
W DMX USB compatibility for wireless primary/secondary or DMX control
Auto, static colour, sound active, manual & primary/secondary modes
0–100% dimming
Variable strobe
Bracket allows for multiple rigging or floor standing applications
4 button menu with LED display

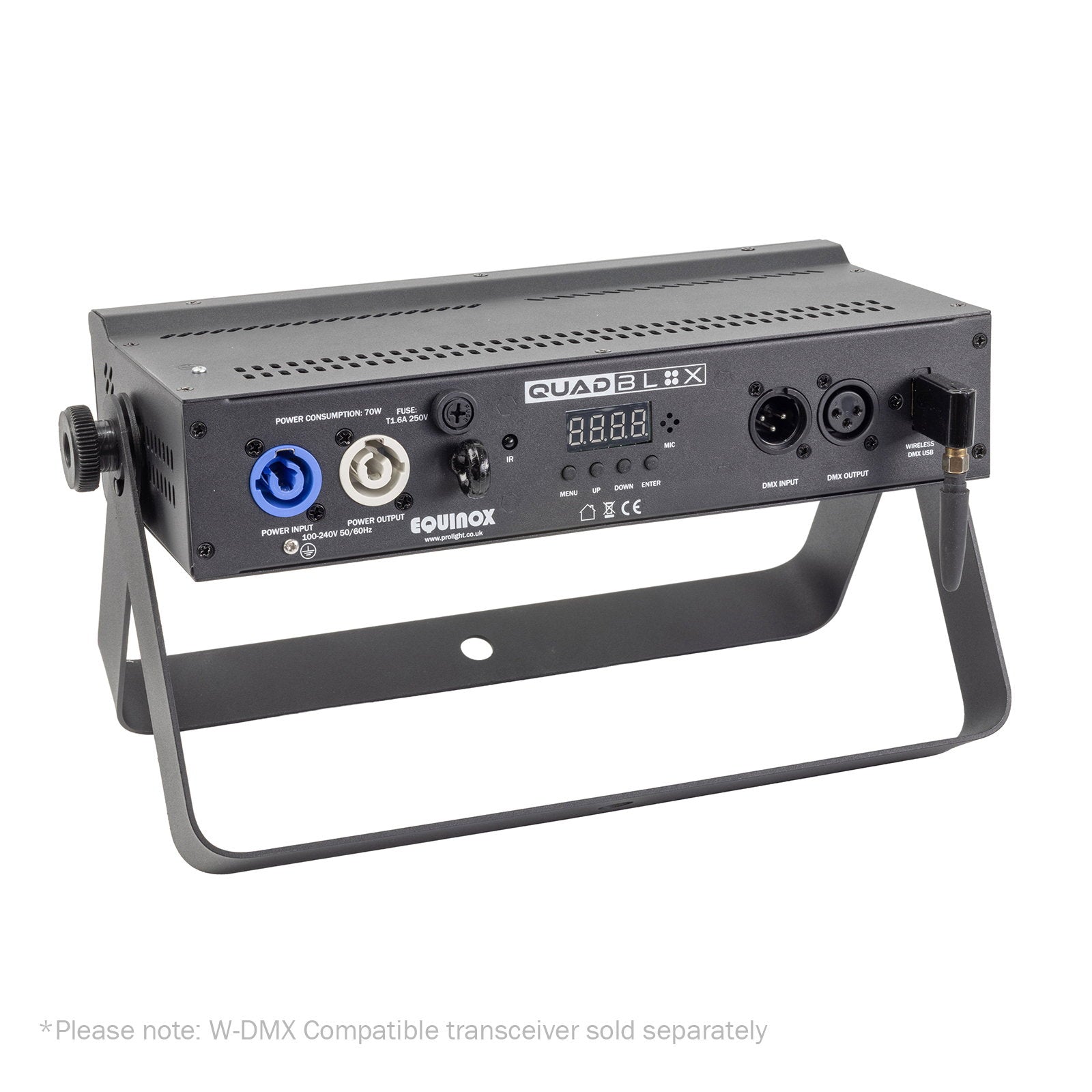

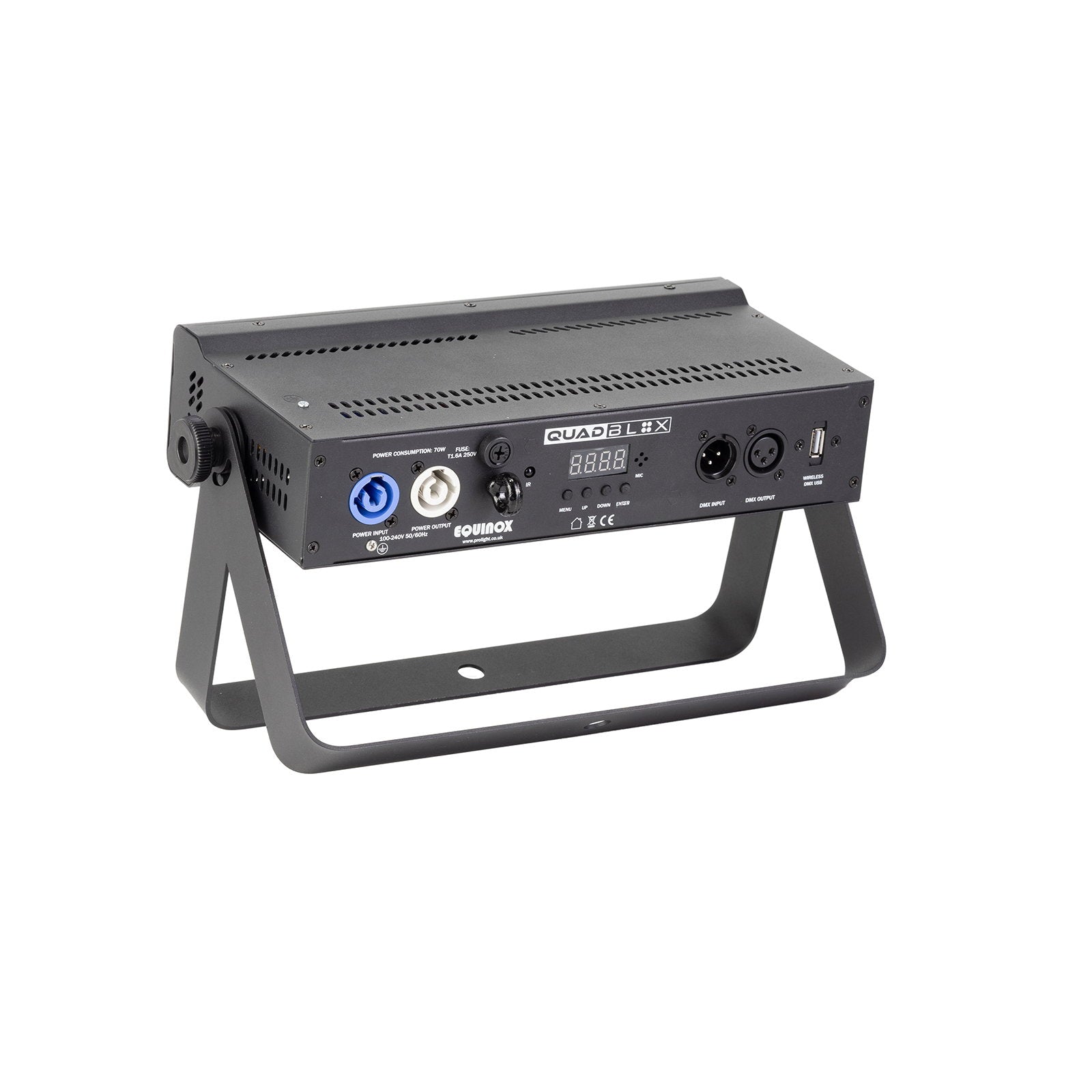

PowerTwist input/output
3-pin XLR input/output
Convection cooled

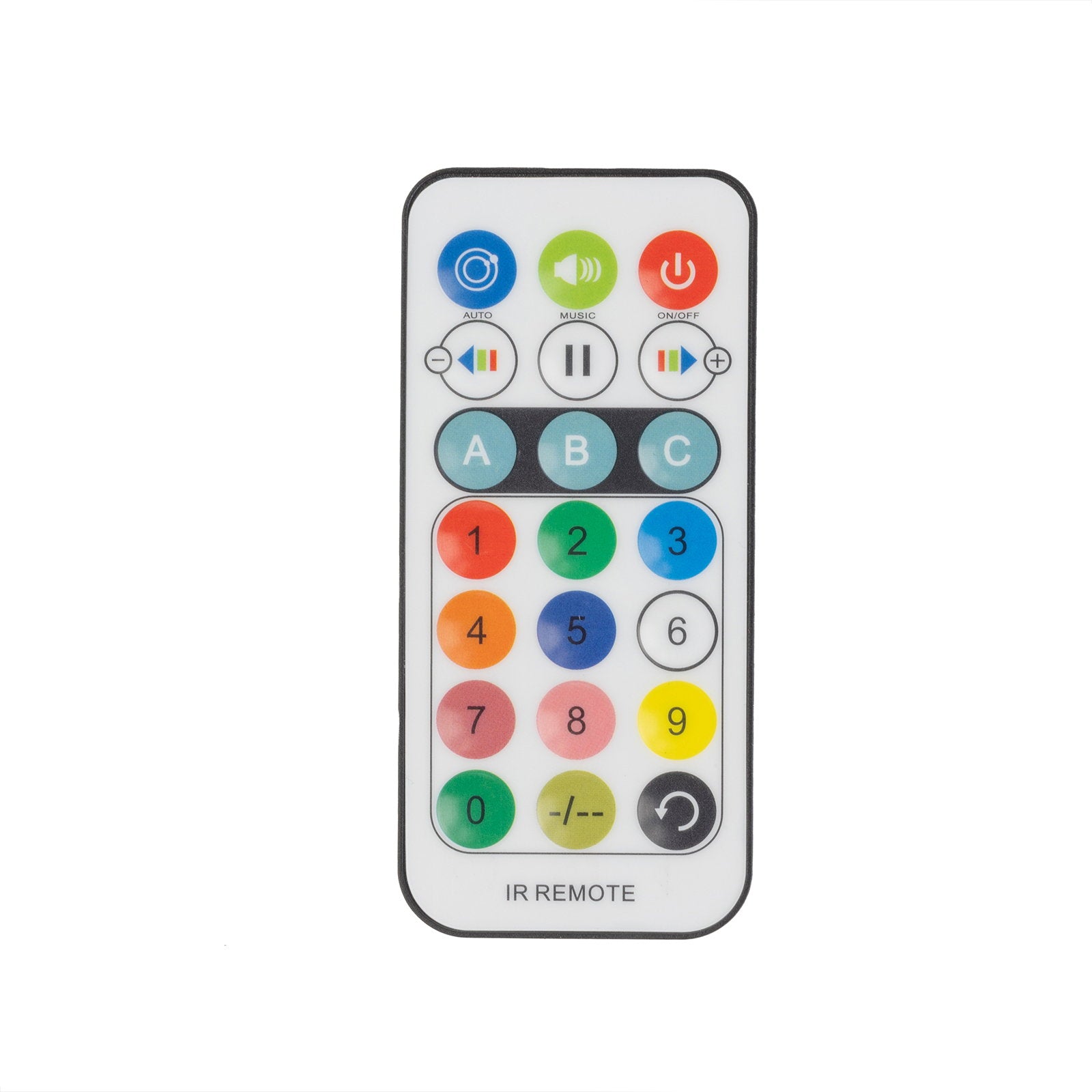

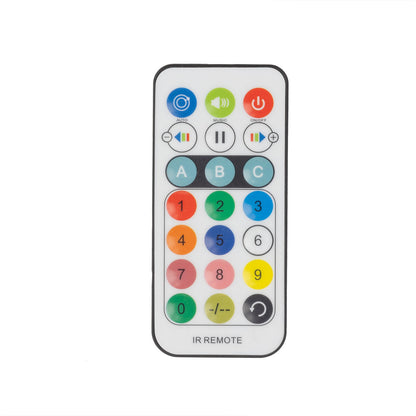

Supplied with IR remote
Power consumption: 70W
Power supply: 100~240V, 50/60Hz
Fuse: T1.6A 250V
Dimensions: 186.5 x 335 x 171.5mm
Weight: 2.6kg
