2-way Passive speaker - 14" + 1.4" - 700Wrms
ProMaxX 114 is a Passive speaker equipped with a 14" custom FBT speakers complete with a 1.4" 2.5"VC B&C’s renowned compression driver Recommended amp 700 Watts RMS 8 Ohms .90°H x 60°V constant directivity horn 132dB SPL. Specially developed polypropylene cabinet and stylish full grille design.

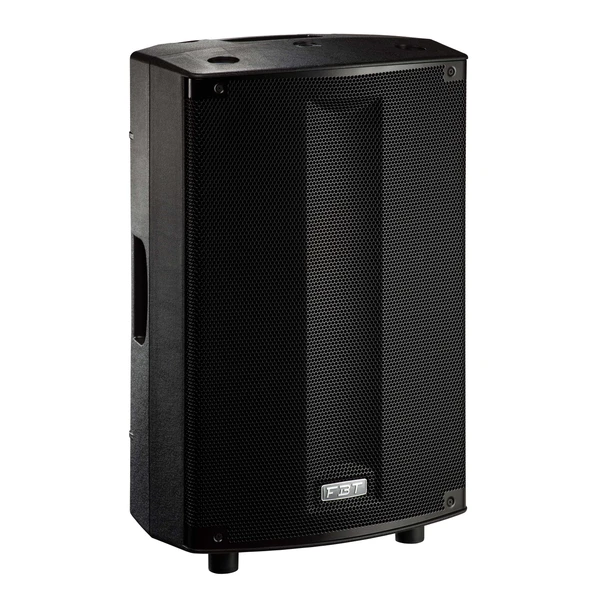

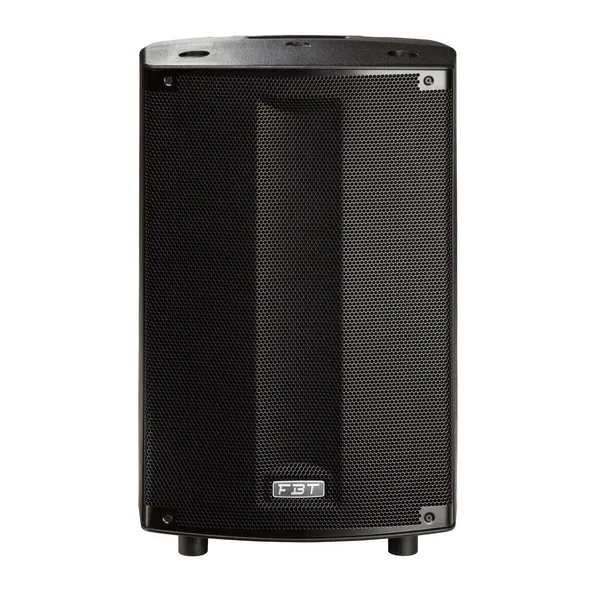

The FBT PROMAXX 114 has been designed to meet the highest standards in both performance. With a specially developed polypropylene cabinet and stylish full grille aesthetic the FBT PROMAXX 114 represents the next step in the evolution of a portable sound classic. The FBT PROMAXX 114 incorporating a 14" LF neodymium woofer with 3" voice coil, custom made for FBT and 1.4" exit throat B&C HF compression driver with 2.5" voice coil; with a constant directivity horn (90° H x 60° V) ensure accurate coverage and with a frequency range from 50Hz to 18kHz the FBT PROMAXX 114 speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 132dB. Ideal for small, medium fixed installations the FBT PROMAXX 114 speaker system have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 1.3kHz. Rear panel connections feature 2 x NL4 Neutrik Speakon. The two M10 suspension points along with the optional mounting bracket allow the FBT PROMAXX 114 speaker to be surface mounted on wall or ceiling and a standard 1.38" speaker stand socket allows the FBT PROMAXX 114 to be mounted on speaker stand.
Key Features:
Bass reflex design cabinet

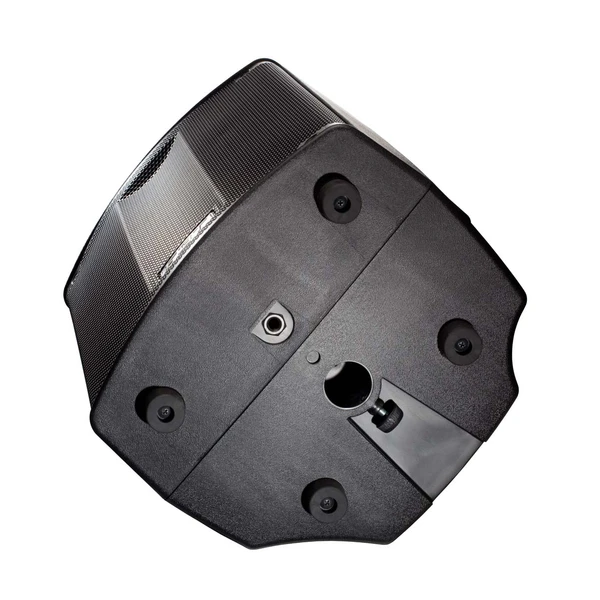

2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
Built-in passive crossover with soft-trip protection for the LF woofer and HF driver
Speakon NL-4 IN and LINK OUT connectors
Specifications:
Configuration: 2 Way
Frequency response: 50Hz - 18kHz -6dB
Low frequency woofer: 14
High frequency driver: 1.4
Crossover frequency: 1.3kHz
Input connector: 2x Speakon NL4 In & Thru
Net Dimension (WxHxD): 402 x 644 x 345mm
Net Weight: 15kg
Transport Dimension (WxHxD): 500 x 745 x 440mm
Transport Weight: 18kg
Recommended Amplifier: 700w RMS
Long term power: 350w
Short term power: 1400w
Recommended HP filter: 40Hz -24dB/Oct
Maximum SPL continuous/peak: 128/132dB
Nominal Impedance: 8 Ohm
Sensitivity (@1W/1m): 100dB
Dispersion (H x V): 90? x 60?
