2-way Passive speaker - 10"+1" - 300Wrms

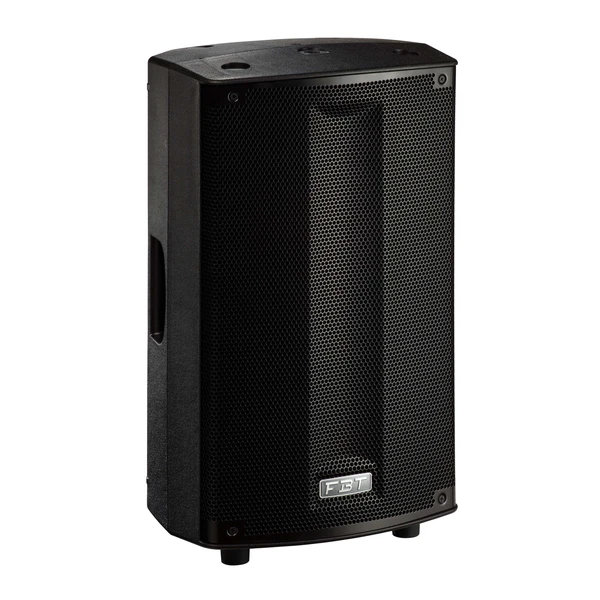

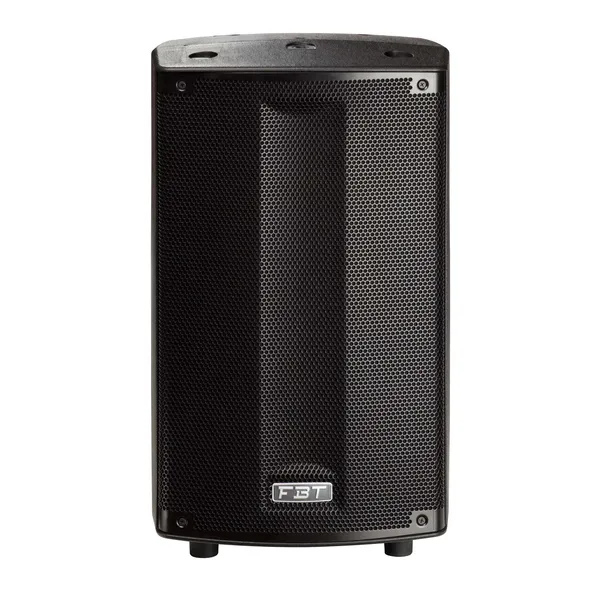

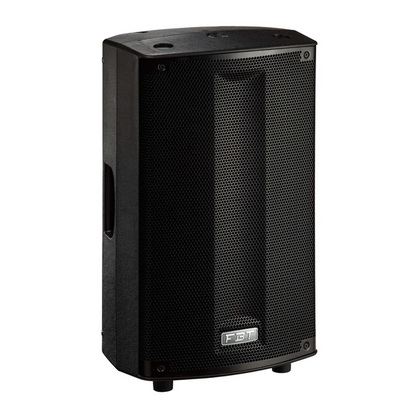

The FBT PROMAXX 110 is a compact, high-performance 10" passive speaker with a stylish design and rugged polypropylene cabinet. Featuring a B&C HF driver, wide coverage (90°H x 60°V), and 127dB max SPL, it delivers clear, full-range sound for speech and music. Ideal for fixed installs, it offers multiple mounting options and Neutrik Speakon connections.
With a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.
Equipped with custom FBT speakers complete with B&C’s renowned compression driver technology, PROMAXX combines true made-in-Italy quality and style.
At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies. Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.
Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance. The PROMAXX feature-set is matched by the enclosure’s versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.
Key Features:

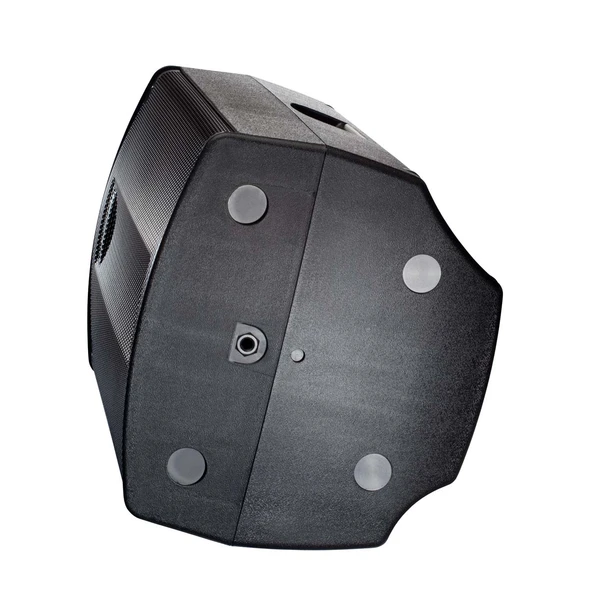

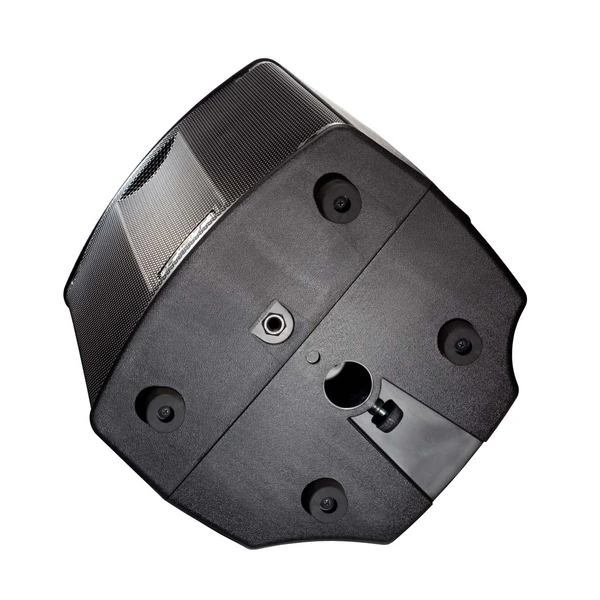

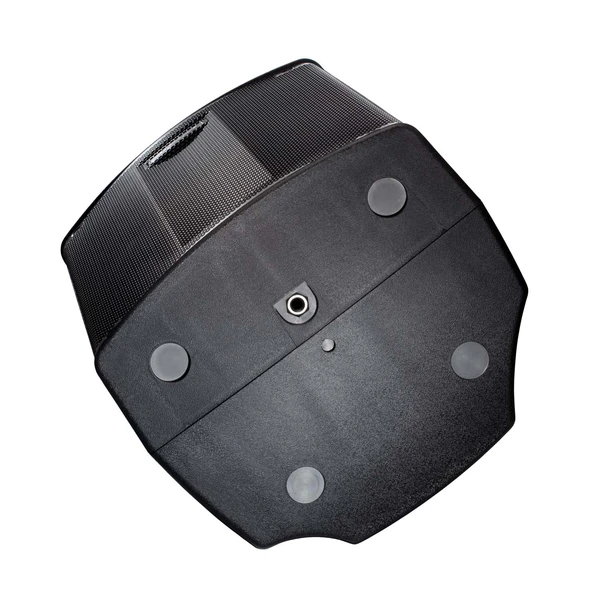

2 x M10 suspension points, 35 mm (1,3/8) top-hat speaker stand socket, wall bracket mount flange plate
90°H x 60°V constant directivity horn
Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
Specifications:
Configuration: 2 way
Crossover frequency: 1.8kHz
Recommended HP filter: 50Hz / 12-24dB oct
Recommended Amplifier: 300W RMS
Long Term Power: 150W
Short Term Power: 600W
Sensitivity (@1W/1M: 97dB (@ 1W / 1mt)
Impedance: 8 Ohm
Frequency Response: 60Hz - 18kHz (@ -6dB)
Low Frequency Woofer: 10" / 2" coil
High Frequency Driver: 1" /1.4" coil
Maximum SPL Cont/Peak: 122 / 127dB
Dispersion: 90°H x 60°V
Input Connector: 2x Neutrik SpeakON NL4
Net Dimension (WXHXD): 320 x 550 x 275 mm
Net Weight: 9kg
