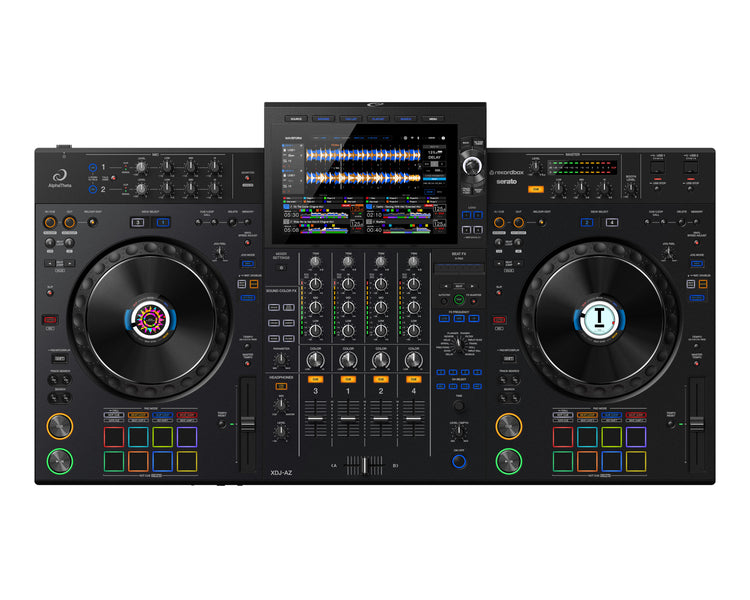

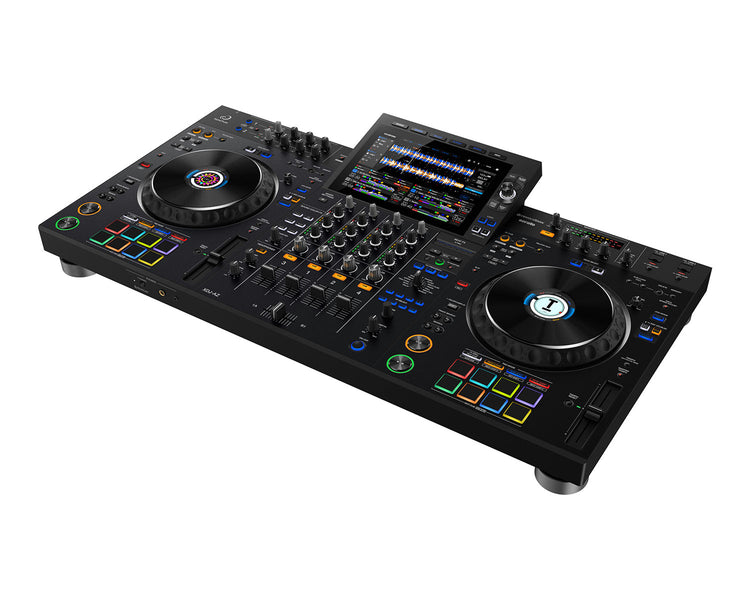

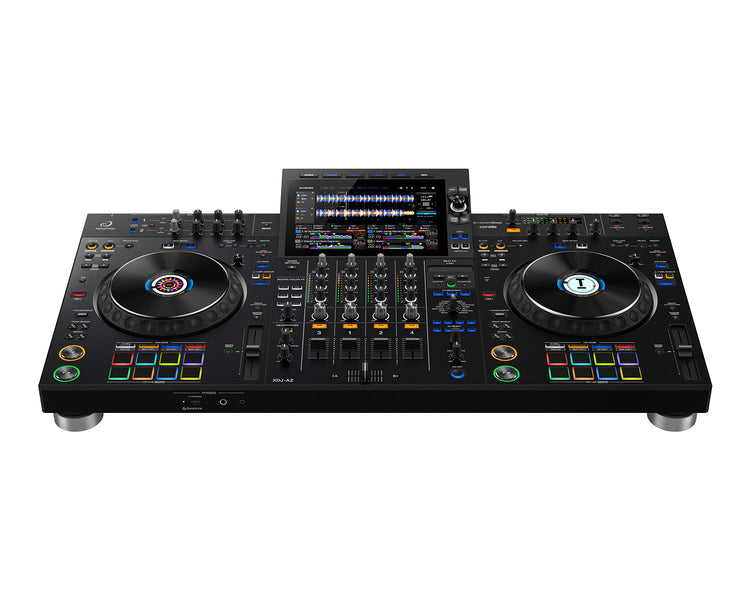

XDJ-AZ 4-Channel All in One rekordbox / Serato DJ System
The XDJ-AZ inherits the layout and feel of the flagship CDJ-3000 and DJM-A9DJM-A9 to give you an intuitive experience. When you perform on the system, it feels as if you’re at one with the decks, allowing for more creative performances. With full-size jog wheels that feel just like those on the CDJ-3000, pitch bending and scratching on the XDJ-AZ are incredibly smooth. The mixer section inherits the intuitive layout of the DJM-A9, with all controls positioned to maximize playability. And it features user-friendly buttons for assigning Beat FX to help you express yourself through the music. So, when you’ve mastered the XDJ-AZ, you’ll be familiar with the way club-standard equipment works and feels, making it much easier to perform at your best in clubs.
Thanks to the integrated SonicLink transmitter, you can enjoy ultra-low-latency wireless monitoring with the
HDJ-F10 professional DJ headphones. Press a single button to pair the XDJ-AZ with the headphones and you can move around the DJ booth or stage freely, knowing you’ll never tangle or pull on a cable. SonicLink is AlphaTheta’s own proprietary ultra-low-latency wireless technology. It transmits audio 20 times faster than the commonly used Bluetooth® SBC codec, so you’ll never notice a delay between pressing a button or scratching with the jog wheels and hearing the sound from the output.
Specifications:
Channels: 4
Deck Control:
4 (USB Storage Device)
4 (DJ Software Control)
Jog Wheel: 206 mm
Jog Feeling: ✓
Sound Colour FX:
DUB ECHO
NOISE
SWEEP
FILTER
SPACE
CRUSH
Beat FX:
DELAY
ECHO
PING PONG
SPIRAL
REVERB
TRANS
FILTER
TRIPLET FILTER
FLANGER
PHASER
ROLL
TRIPLET ROLL
HELIX
MOBIUS
Software:
rekordbox for Mac/Windows
rekordbox for iOS/Android
Serato DJ Pro
Frequency response: 20 Hz - 20 kHz (USB)
S/N ratio: 115 dB (USB)
Total harmonic distortion: 0.0018% (USB)

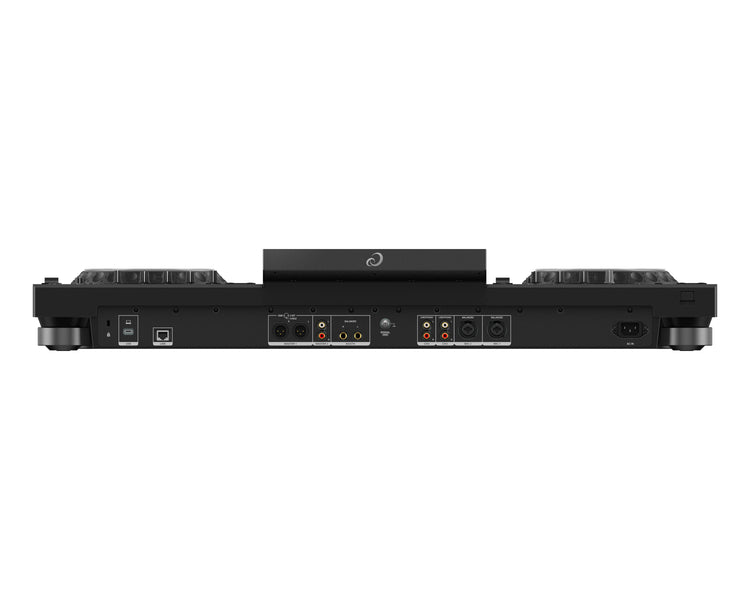

Terminals:
Input:
LINE / PHONO x 2 (RCA)
MIC x 2 (XLR & 1/4” TRS jack)
Output:
MASTER x 2 (XLR x 1, RCA x 1)
BOOTH x 1 (1/4” TRS jack)
PHONES x 2 (1/4” stereo jack x 1, 3.5 mm stereo mini jack x 1)
USB:
USB Type-A x 2
USB Type-C x 1
Others: LAN port (100BASE-TX) x 1
Wireless LAN:
Supported standards: IEEE 802.11 a / b / g / n / ac
Frequency band used: 2.4 GHz / 5 GHz
Bluetooth®:
Wireless system: Bluetooth ver. 5.3
Compatible codecs: SBC, AAC
SonicLink frequency band used: 2.4 GHz
Maximum dimensions (W x D x H): 895 × 504.1 × 133.4 mm / 35.24” x 19.85”x 5.25”
Weight: 13.5 kg / 29.8 lbs
