The DJM-V10-LF features new, longer channel faders with optimised curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes.
The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.
All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.
If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have replaced the 45 mm ones on the channels.
Main Features:
MIDI Control: Full assignable MIDI controls
ProDJ Link: Yes
Booth EQ: Yes
P-LOCK Fader Caps: Yes
Auto Standby: Yes
DVS Control
rekordbox
Serato DJ Pro
TRAKTOR PRO 3
Specifications:
Sampling Rate: 96 kHz
Frequency Range: 20 - 40000 Hz
A/D Converter: 32 bit
D/A Converter: 32 bit
S/N Ratio Line: 105 dB
S/N Ratio Phono: 88 dB
S/N Ratio Mic: 79 dB
Distortion: < 0.005 % (LINE)
Channels:
EQ: 4 band
EQ Range: [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP: Yes
Performance Control:
Channels: 6
Filter
HPF
LPF
SEND
Short Delay
Long Delay
Dub Echo
Reverb
2 Externals (1/4-inch TS jack)
MULTI I/O
1/4-inch jack
USB (Type A)
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Shimmer
Flanger
Phaser
Filter
Trans
Roll
Pitch
Vinyl Brake
FX Frequency: Yes
X-PAD: Yes
rekordbox Quantize: Yes
Master Isolator: Yes
Mic:
Mic Connection
XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack
Talkover: 3 Position Switch
Talkover Attenuator: Yes

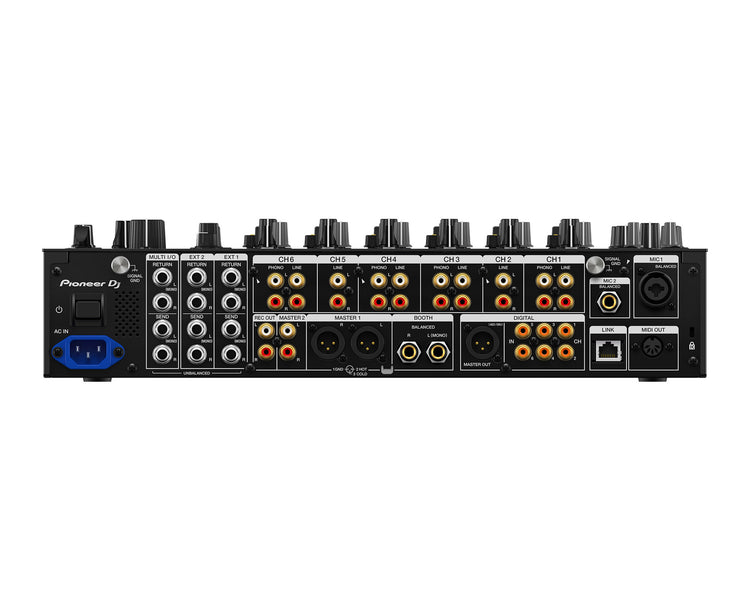

Terminals:
Inputs
6 DIGITAL (Coaxial)
6 LINE (RCA)
4 PHONO (RCA)
Send/Return
3 SEND (1/4-inch TS jack)
3 RETURN (1/4-inch TS jack)
LAN: 1
USB
2 USB B ports
1 USB A port
Outputs
2 MASTER (XLR, RCA)
1 BOOTH (1/4 inch TRS Jack)
4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
1 REC OUT (RCA)
1 DIGITAL (AES/EBU)
1 MIDI (DIN)
Physical:
Width: 437.6 mm
Height: 107.9 mm
Depth: 467 mm
Weight: 11.9 kg
