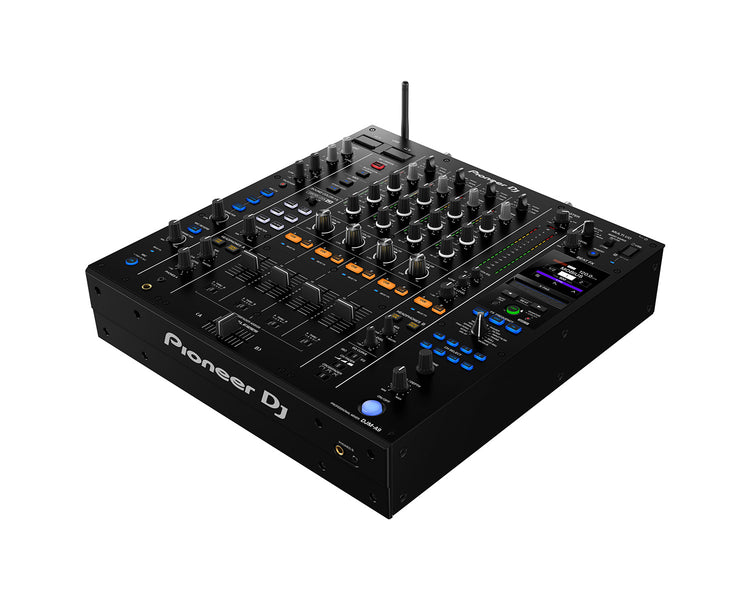

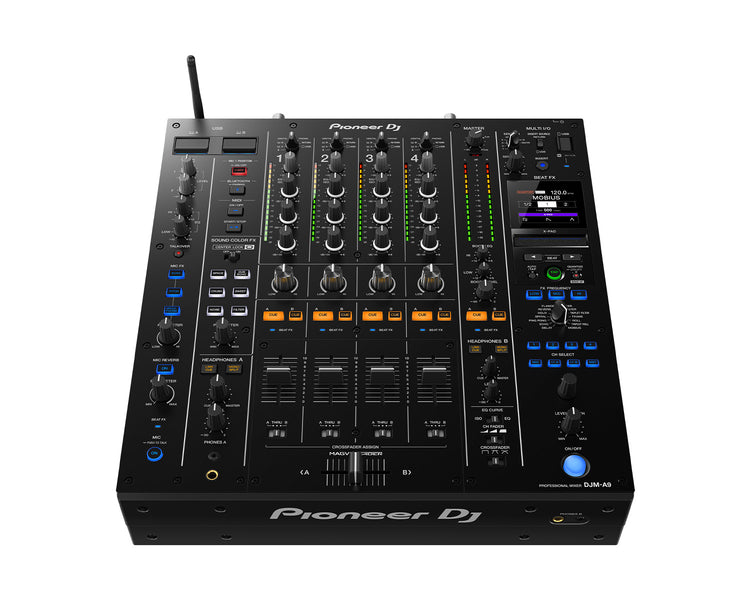

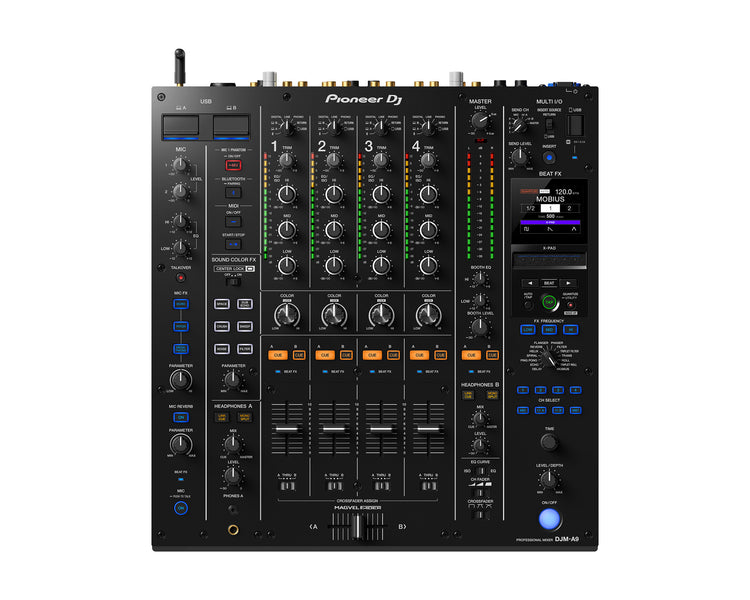

The 4-channel unit raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level.
Product Specifications:
General Specifications:
Frequency Response: 20 Hz – 40 kHz (LINE)
S/N Ratio:
114 dB (USB, Digital IN)
88 dB (PHONO)
105 dB (LINE)
79 dB (MIC 1, MIC 2)
Total Harmonic Distortion: 0.005 % (LINE-MASTER1)
Power Consumption: 46 W
Maximum Dimensions (W × D × H):
407.4 × 458.3 × 107.9 mm (with the wireless antenna 140.7 mm)
16.4” x 18.4” x 4.25” (with the wireless antenna 5.54”)
Weight: 10.2 kg / 22.5 lb
Compatible Software: rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge

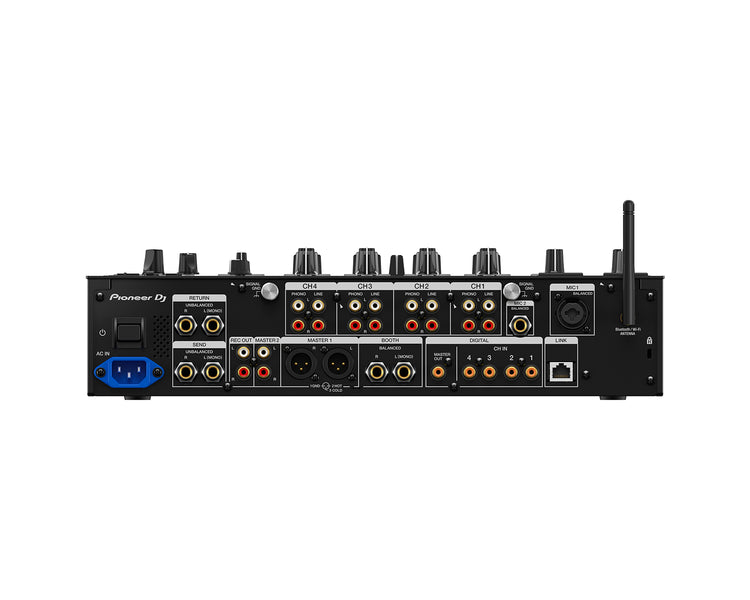

Input/Output Terminals:
Inputs:
DIGITAL x 4 (coaxial)
LINE x 4 (RCA)
PHONO x 4 (RCA)
MIC x 2 (XLR & 1/4” TRS jack x 1, 1/4” TRS jack x 1)
Outputs:
MASTER x 2 (XLR x 1, RCA x 1)
BOOTH x 1 (1/4” TRS jack)
REC x 1 (RCA)
DIGITAL MASTER x 1 (coaxial)
PHONES x 4 (1/4” stereo jack x 2, 3.5-mm stereo mini jack x 2)
USB:
USB Type-A x 1
USB Type-B / USB Type-C x 2
Others:
SEND (1/4” TS jack) x 1
RETURN (1/4” TS jack) x 1
LAN terminal (100BASE-TX) x 1
Performance Control:
Channels: 4
MULTI I/O: USB (Type A)
Sound Colour FX
Space
Dub Echo
Sweep
Noise
Crush
Filter
Beat FX
Delay
Echo
Ping Pong
Spiral
Helix
Reverb
Flanger
Phaser
Filter
Triplet Filter
Trans
Roll
Triplet Roll
Mobius
Screen Display
X-PAD
rekordbox Quantize
Mic:
Phantom power
Microphone Effects
Echo
Pitch
Megaphone
Reverb
Push-to-talk function
Mic Connection
XLR / 1/4-inch Combo Jack
1/4-inch TRS Jack
Mic EQ: 2 band
Mic EQ Range: -12 dB ~ +12 dB
Talkover: Dedicated button
Talkover Attenuator
