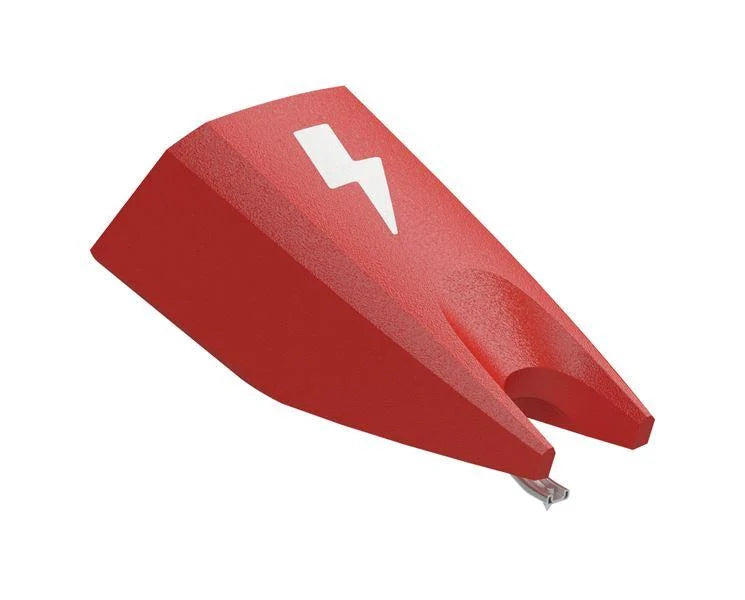

Ortofon Stylus CC MKII Digital

The Replacement Stylus offers a tactile feedback when seating, indicating a snug and secure fit, while a cut-out area in the front allows for far more accurate needle drops.

Features:

Larger, wider and more robust stylus body
Easier to grip and handle
Better fix by metal spring
Tactile feedback of correct mount
Large stylus viewing cut‐out

Specifications:

Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Concorde cartridge weight  - stylus = 1 g
Recommended exclusively for Concorde MkII DIGITAL
