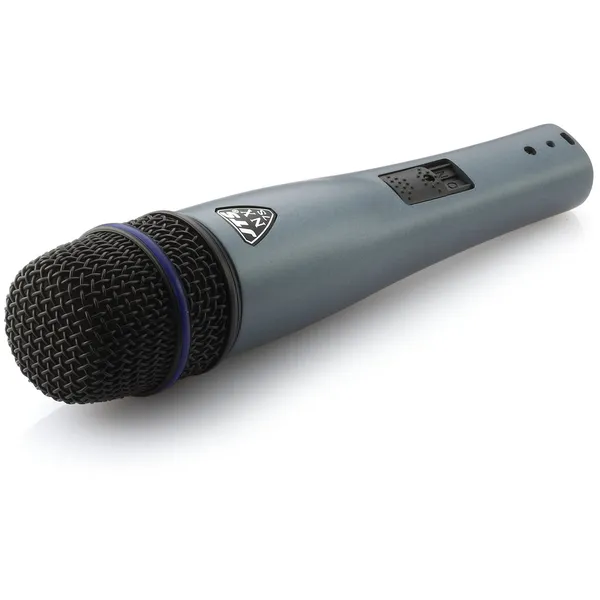

JTS NX-7S

The NX-7S is a switch enabled Dynamic microphone. The shock mount keeps handling noise to an extremely low level. Flat top grille design. Perfect for vocalists. Supplied in a box with a leather pouch and clip.

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal, drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.

Specifications:

Frequency response:    50Hz - 16.5kHz
Net Weight:    235g
Microphone Type:    Moving Coil Dynamic
Polar Pattern:    Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Impedance:    600Ω
Sensitivity (at 1kHz):    -72dB* (0.25mV)*0dB
Phasing:    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:    3 Pin Male XLR
Case:    Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
NX-7S:    Equipped with magnetic reed switch
