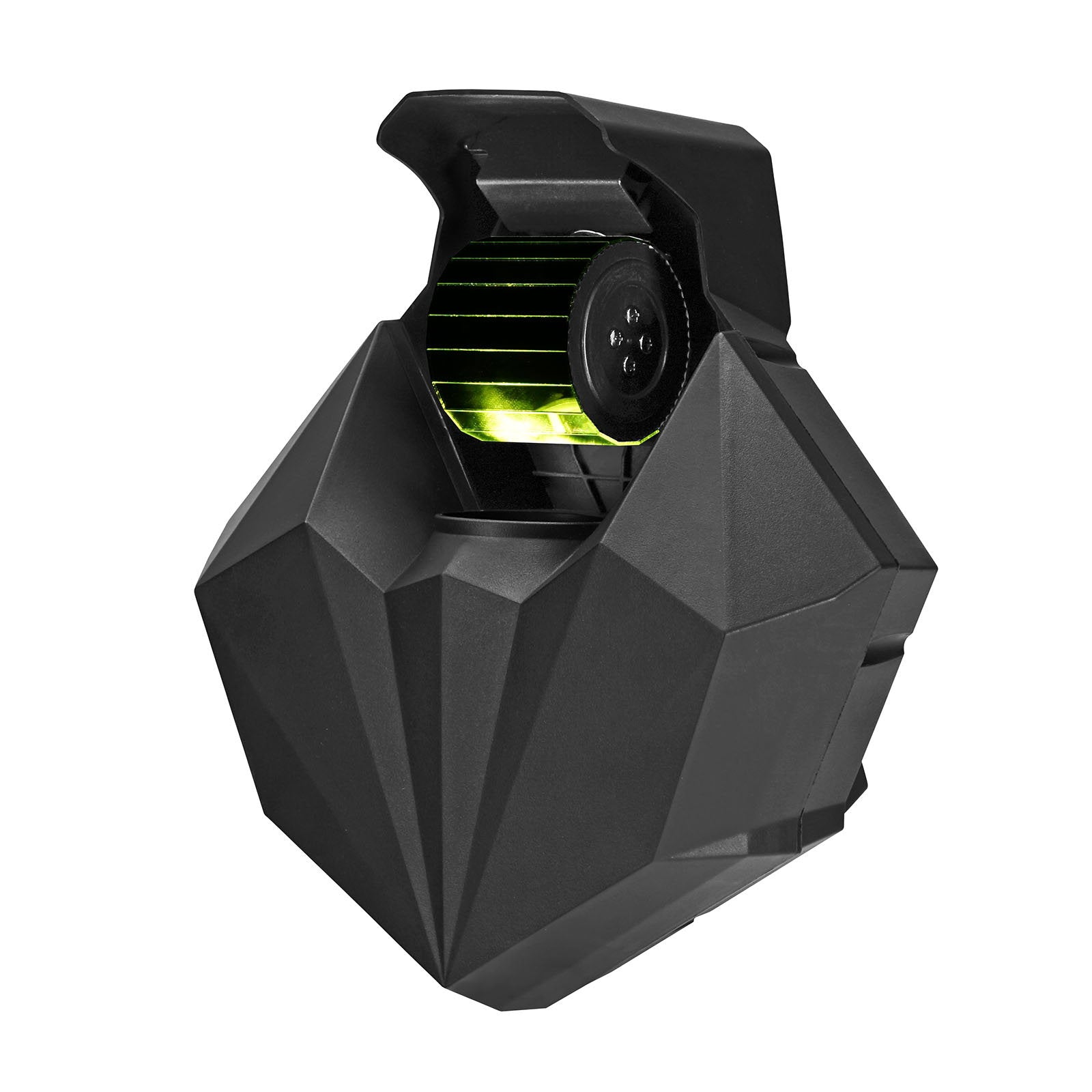

Powered by an 80W LED, the Equinox Merlin is a compact multi-gobo lighting effect fitted with a mirrored barrel to project an array of colourful moving gobos across walls and dance floors. An easy-to-use focus adjustment on the rear of the fixture ensures crisp projection, while the intuitive OLED display offers DMX, auto, sound-active, and primary/secondary modes. Perfect for mobile DJs, nightclubs, weddings, and live events, this versatile fixture delivers eye-catching visuals in a portable and user-friendly package. Elevate your lighting setup and create immersive light shows with the Equinox Merlin.
Features:
1 x 80W cool white LED (7500K)
Beam angle:
4° (per beam)
27° (per gobo flower)
Manual focus
CRI: 70
Refresh rate: 6kHz
8 static gobos/colours + open
DMX channels: 2/6 or 9 selectable
Auto, sound active and primary/secondary modes
Pan: 180°, Tilt: 360°
0-100% dimming
Variable strobe
Supplied with hanging bracket

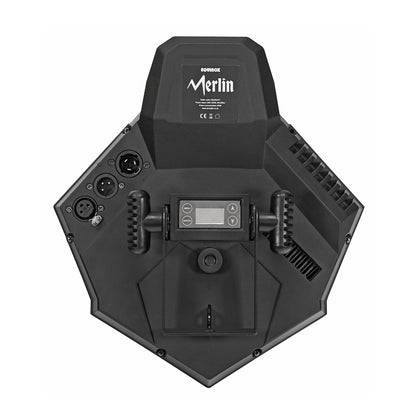

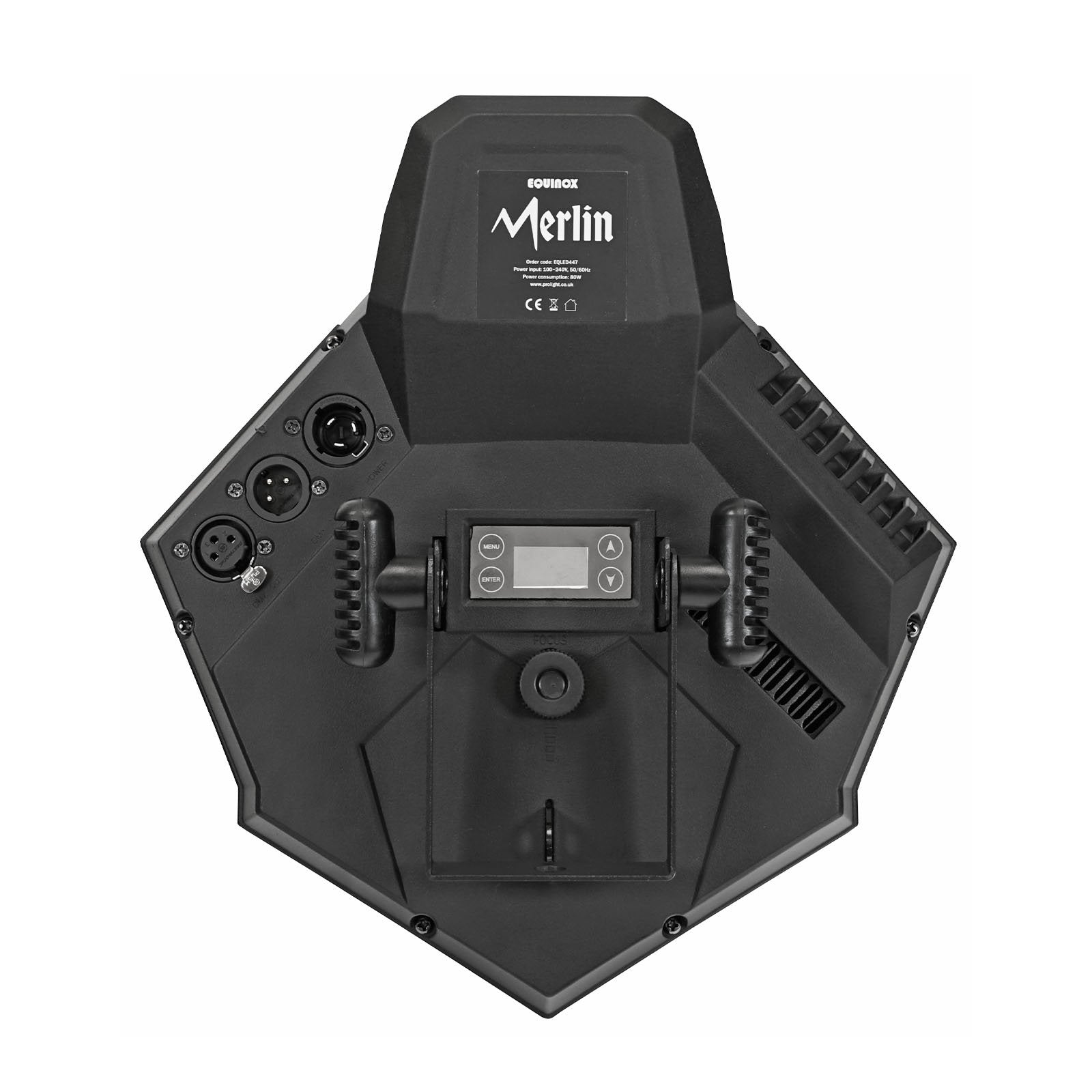

4 button menu with OLED display
PowerTwist TR1 power input
3-Pin XLR input/output
Fan cooled
Power consumption: 80W
Power supply: 100~240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 314 x 283 x 162mm
Weight: 2.5kg
