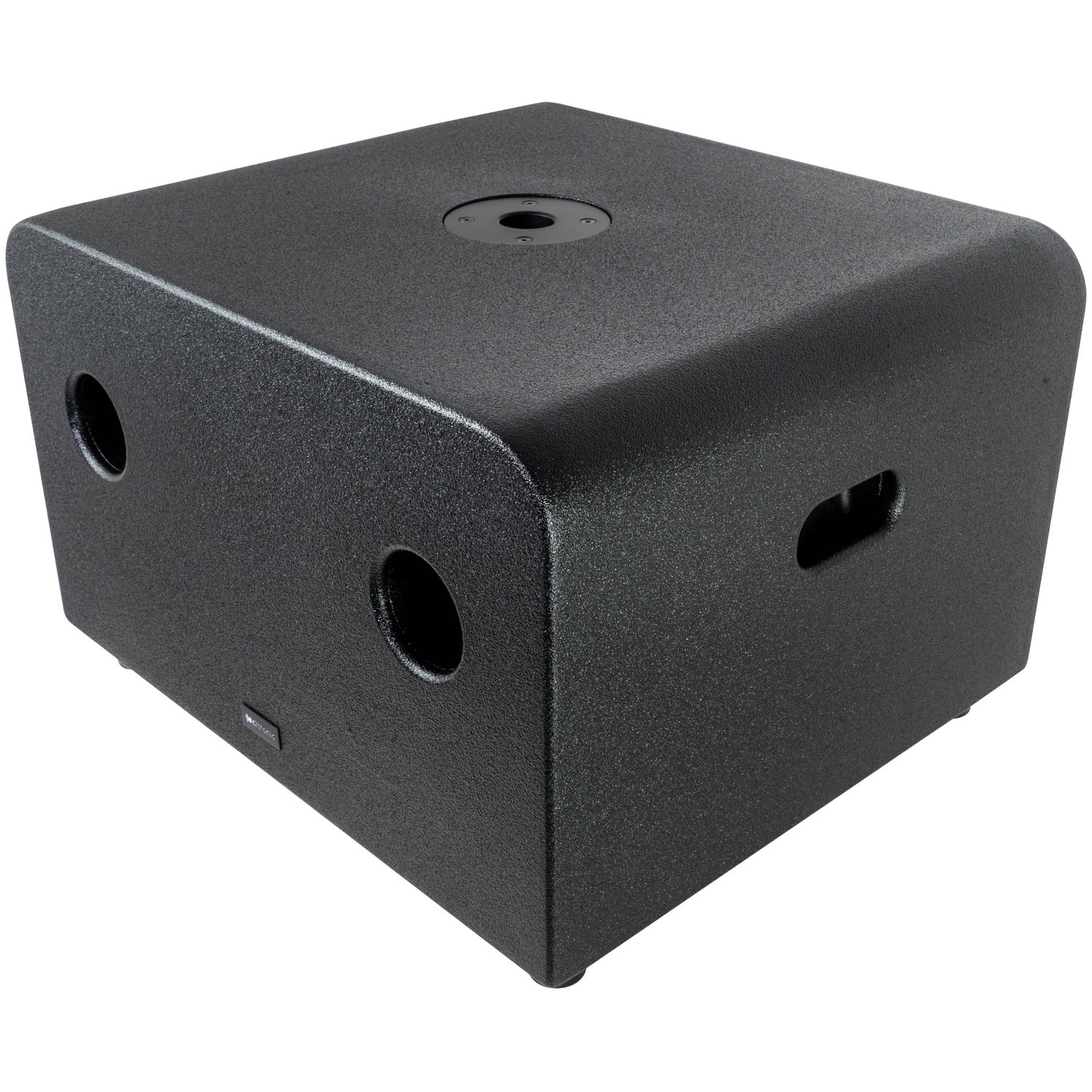

LOSUB-15

LOSUB is a subwoofer design that offers high power handling from a cabinet that has compact dimensions. Employing a downward angled baffle, the LOSUB creates a pressure zone at ground level and ports this forward, meaning that the driver doesn't need a large air space behind the driver. The low profile of its cabinet enables it to fit underneath or alongside furnishings and in narrow spaces for installation. Input from an amplifier is via 2 Speakon connectors with a built-in passive filter to remove unwanted mid and high frequencies. Whether is it for space-saving during transit or storage or for building into discreet spaces for installation, the LOSUB passive cabinet can handle the power to deliver a strong sub-frequenciy response from a compact enclosure.

Semi-directional ported design
Compact dimensions

Construction      MDF enclosure with polyurea finish
Hardware           Routed handles & 35mm pole mount socket
Inputs             2 x SPK socket
Filter type           120Hz low pass 12dB/oct
Driver         380mmØ (15") sub woofer
Impedance            8 Ohms
Voice coil           75mmØ (3")
Magnet          2.835kg (100oz)
Power handling : rms            600W
Power handling : max           1200W
Frequency response          40Hz - 2kHz
SPL max.           127dB
Dimensions          550 x 480 x 360mm
Weight          24kg
