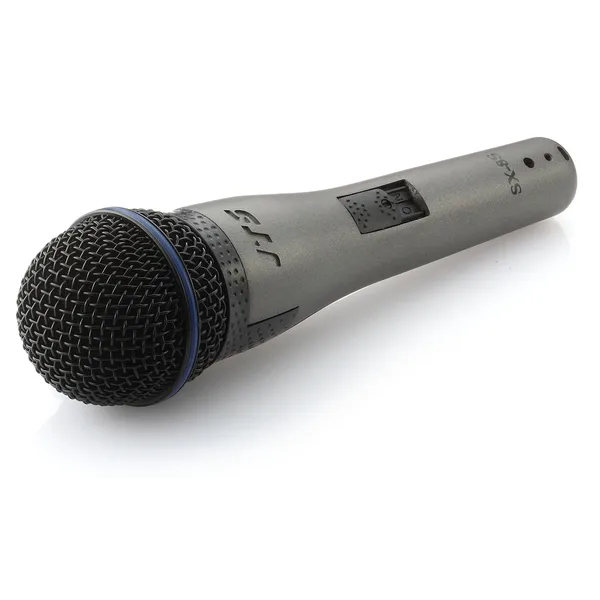

JTS SX-8S

The SX-8S is a switch enabled Cardioid, rotationally symmetrical about microphone axis, uniform with frequency Dynamic microphone. Frequency range of 50Hz - 16.5kHz. This microphone is perfect for high quality vocal reproduction. Supplied in a box with leather pouch and clip. Black rounded grille design.

SX-8/SX-8S re-enhance overall performance. SX-8/SX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. Ideal for lead vocal.

Specifications:

Frequency response:    50Hz - 16.5kHz
Microphone Type:    Moving Coil Dynamic
Polar Pattern:    Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Impedance:    250Ω
Sensitivity (at 1kHz):    -77dB*(0.14mV)*0dB
Phasing:    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:    3 Pin Male XLR
Case:    Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille
SX-8S:    Equipped with magnetic reed switch
