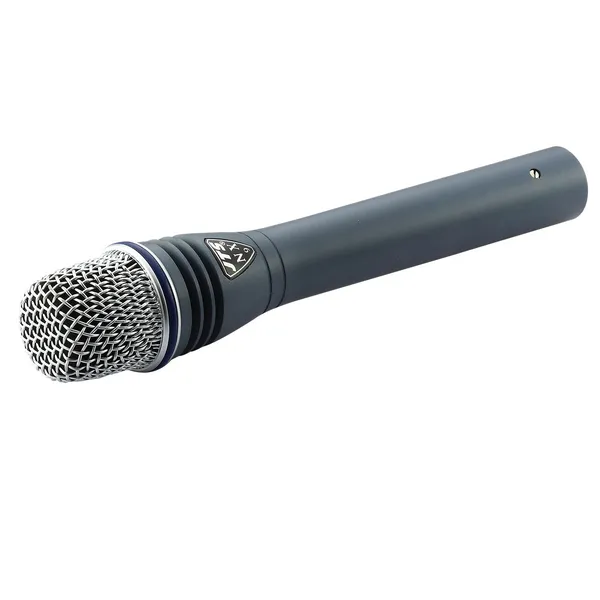

JTS NX-9

The NX-9 is an extremely versatile microphone for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction. Electret Condenser. Requires phantom power 48V DC or you can power this microphone by inserting a AA battery internally. Supplied in a box with a mic clip. Flat top grille design.

Condenser Microphone

The NX-9 is innovated for overheads, hi-hat, acoustic guitar and other instruments. The NX-9 provides extended frequency response and enlarged dynamic range. It delivers smooth and transparent reproduction.

Specifications:

Net Weight:    230g
Microphone Type:    Electret Condenser
Output Impedance:    400Ω
Polar Pattern:    Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity (at 1kHz):    -70dB* (0.32mV)*0dB
Phasing:    Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector:    3 Pin Male XLR
Case:    Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Touch Noise:    Super Low
Power Supply Required:    9-52V Phantom Power or 1.5V AA Battery
